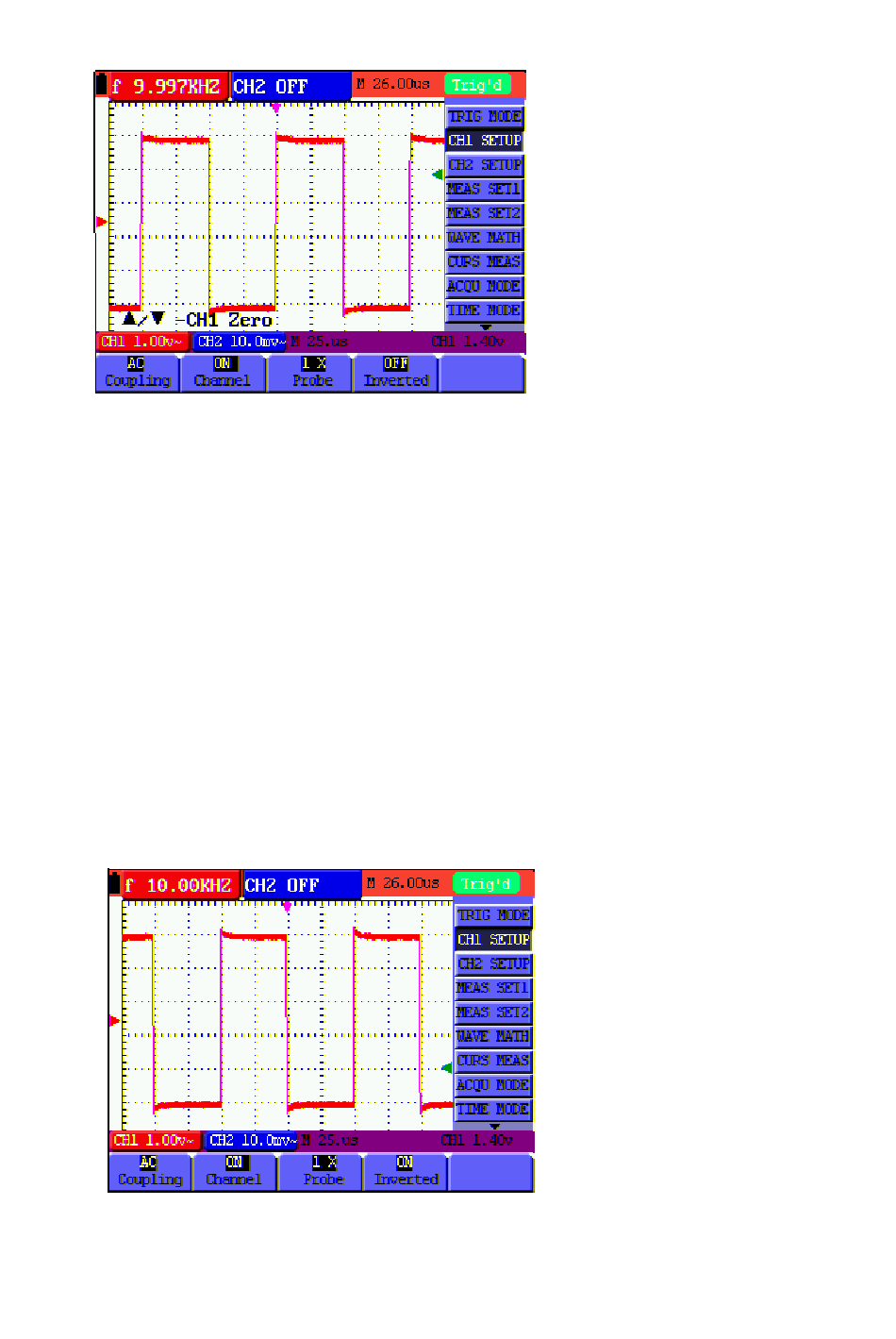

Figure 16: AC-Coupling
R
P
EVERSING THE
OLARITY OF THE
To invert the input CH1 waveform, perform the following steps:
1.
Press the MENU key; the function menu will appear at the right side of the
screen.
2.
Press MENU ▲ or MENU ▼ to select CH1 setting. Four (4) selectable
options will appear at the bottom of the screen.
3.
Press the F4 key to select Inverted. The CH1 inverted waveform will then be
displayed on the screen.
Refer to Figure 17.
Figure 17: Inverted Waveform
D
W
ISPLAYED
AVEFORM
25
MS420-en-US_V6.0 2/23
