To measure CH1 voltage:
1. Press MENU, the function menu will appear on the right side of the screen.
2. Press MENU ▲ or MENU ▼ and choose AUTOSCALE; three (3) options will
appear at the bottom of the screen
3. Press F1 to select ON
4. Press AUTOSET to enter the Autoscale mode; the symbol
second at the top left of the display
5. Press F2 to select the Horizontal/Vertical mode
6. Press F3

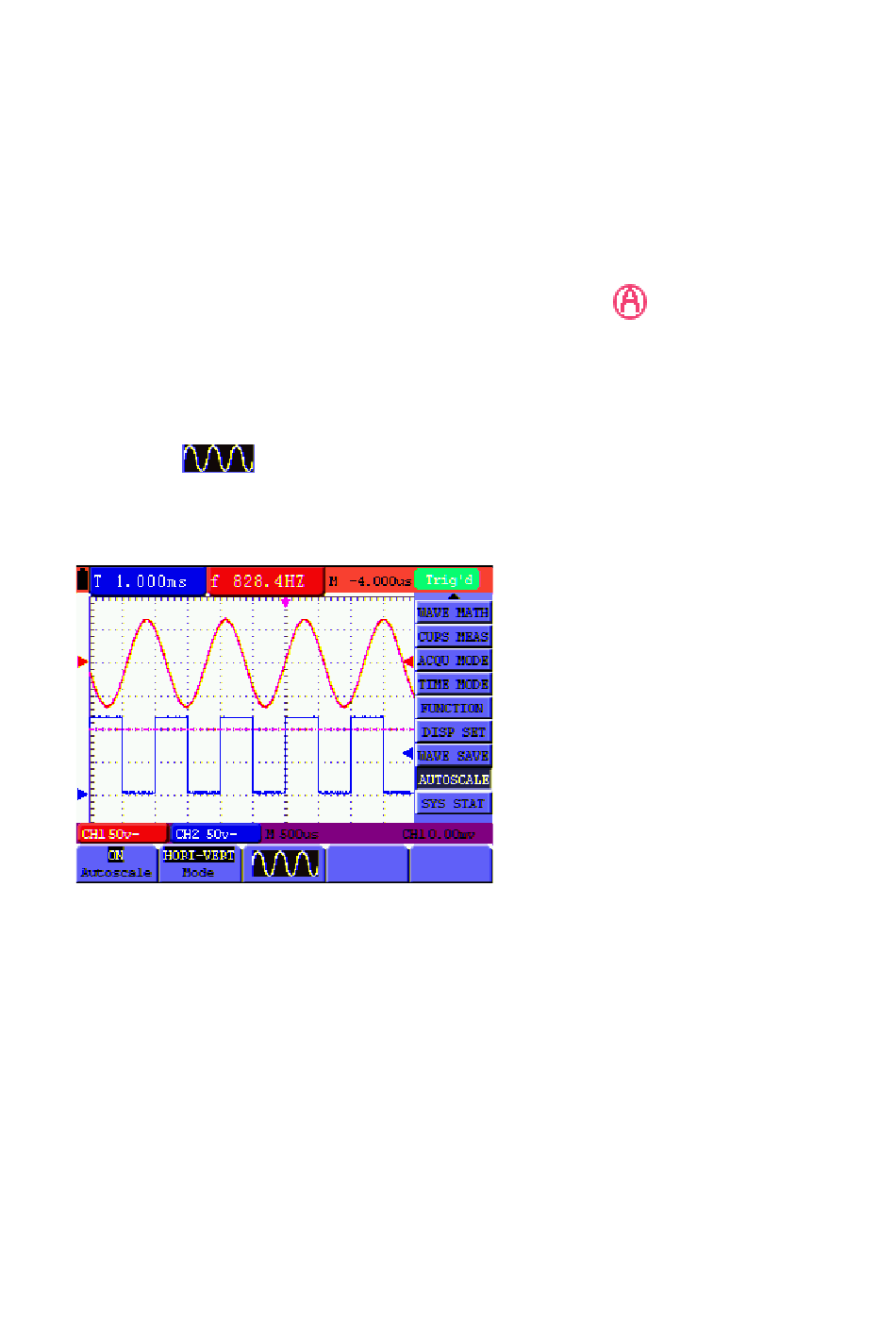

Fig 32: Autoscale Horizontal - Vertical multi-period waveforms
and refer to the display examples below:
49
flickers every half
MS420-en-US_V6.0 2/23
