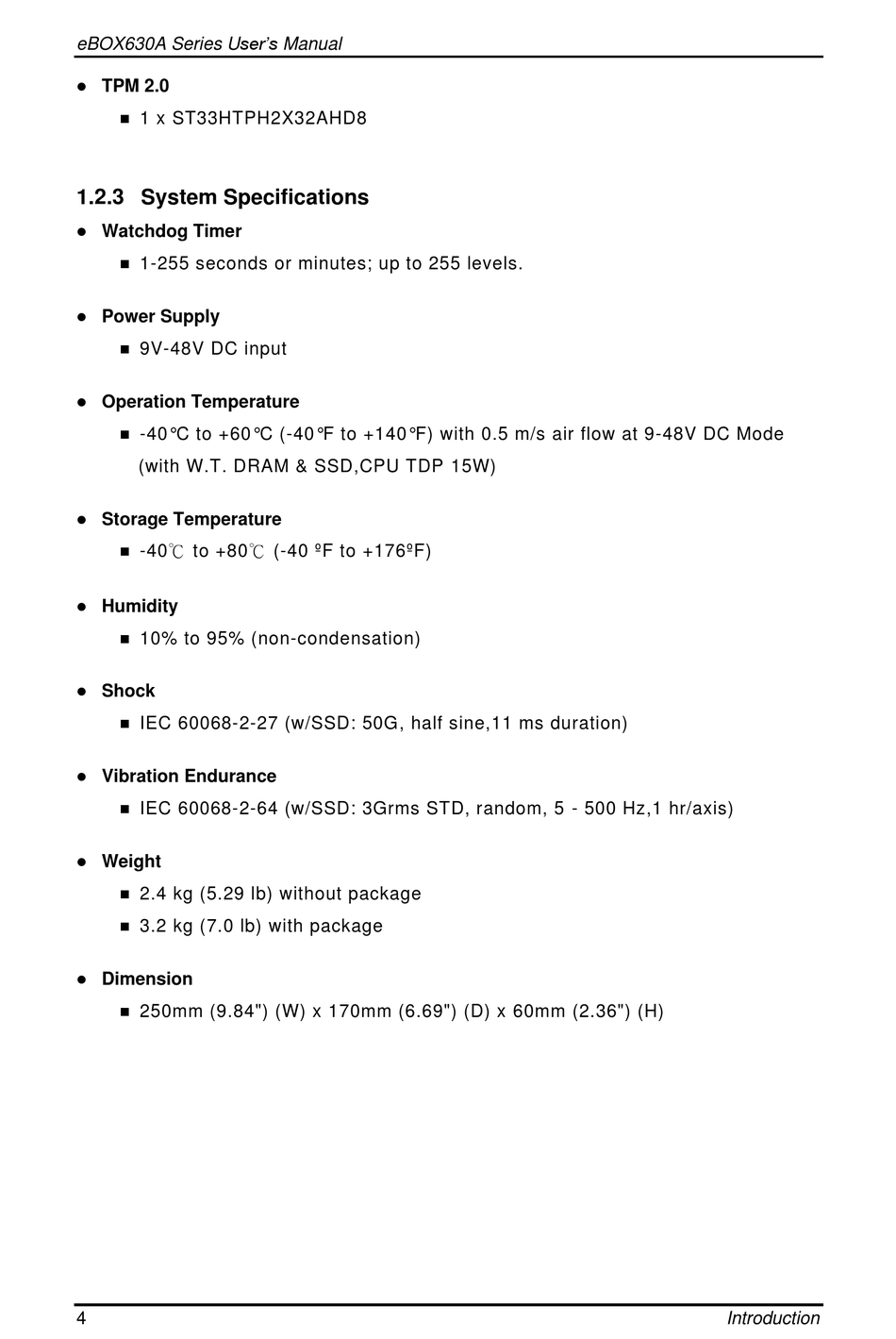

System Specifications - AXIOMTEK eBOX630A Series User Manual

eBOX630A Series User's Manual
⚫ TPM 2.0
◼ 1 x ST33HTPH2X32AHD8

1.2.3 System Specifications

⚫ Watchdog Timer
◼ 1-255 seconds or minutes; up to 255 levels.
⚫ Power Supply
◼ 9V-48V DC input
⚫ Operation Temperature
◼ -40°C to +60°C (-40°F to +140°F) with 0.5 m/s air flow at 9-48V DC Mode
(with W.T. DRAM & SSD,CPU TDP 15W)
⚫
Storage Temperature
◼ -40℃ to +80℃ (-40 ºF to +176ºF)
⚫ Humidity
◼ 10% to 95% (non-condensation)
⚫ Shock
◼ IEC 60068-2-27 (w/SSD: 50G, half sine,11 ms duration)
⚫ Vibration Endurance
◼ IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz,1 hr/axis)
⚫
Weight
◼ 2.4 kg (5.29 lb) without package
◼ 3.2 kg (7.0 lb) with package
⚫ Dimension
◼ 250mm (9.84") (W) x 170mm (6.69") (D) x 60mm (2.36") (H)
4 Introduction
