6.9.3 Connecting the Enable Cable

The Enable cable along with the RS485 cable, are used for communication between the in-
verter and the Li-ion battery.
For detailed connection description of the RS485 cable, refer to the section .
For detailed connection description of the Enable cable, refer to the section . Plug the wires
into the EN_H and EN_G terminals according the labels on the bottom of the inverter.

6.10 WiNet-S Connection

The WiNet-S module supports Ethernet communication and WLAN communication. It is not
recommended to use both communication methods at the same time.
The WiNet-S communication for Ethernet cannot be used simultaneously with A1 and B1
terminals for RS485 daisy chain.

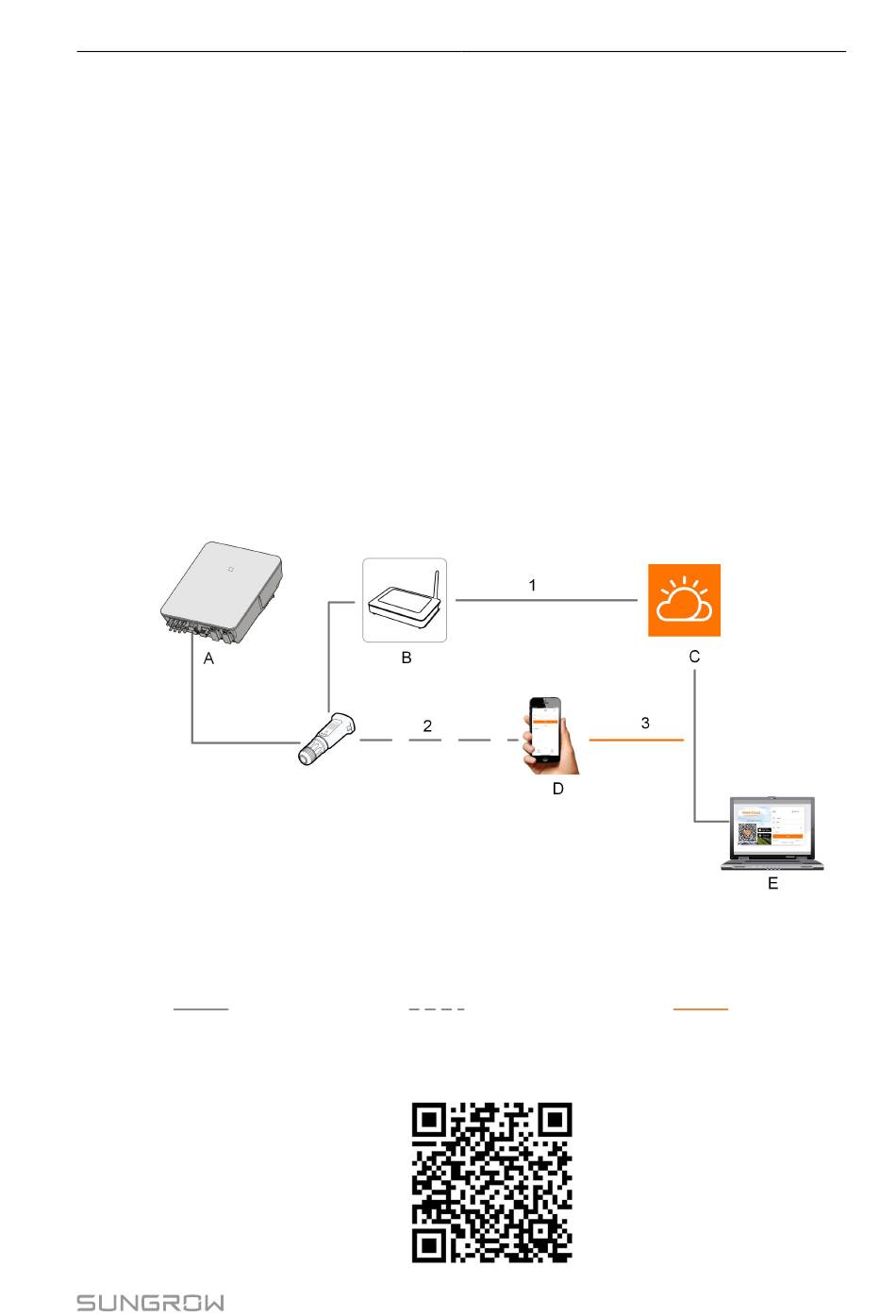

(A) Inverter
(D) iSolarCloud App
(1) Internet
For details, see the quick guide for the WiNet-S module. Scan the following QR code for the
quick guide.
"6.13 DRM Connection"
(B) Router/Switch
(E) iSolarCloud
(2)
for details. Plug the wires into the RJ45–CAN
Local access
6 Electrical Connection
(C) iSolarCloud server
(3) Remote
