Multiple Inverters in parallel Connection
If multiple inverters are connected in parallel to the grid, ensure that the total number of par-
allel inverters does not exceed 5. Otherwise, please contact SUNGROW for technical
scheme.

6.6.2 Connecting the AC Cable

step 1 Disconnect the AC circuit breaker and secure it against reconnection.
step 2 Unscrew the swivel nut and take out the sealing ring.
step 3 Thread the AC cable through the swivel nut, appropriate sealing and waterproof cover in
sequence.

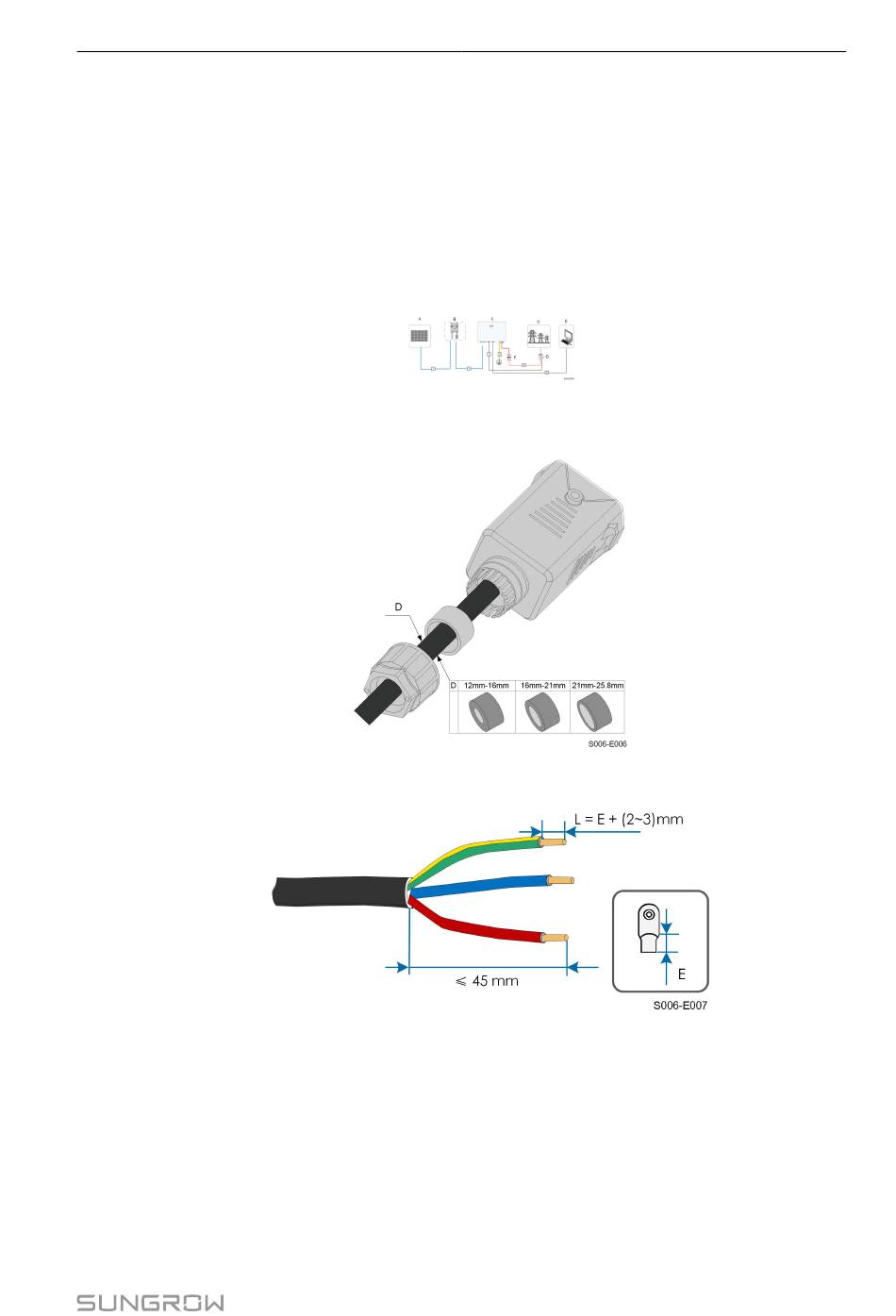

step 4 Strip the cable jacket and the wire insulation as shown in the following figure.
step 5 Crimp the OT/DT terminal.
