User Manual

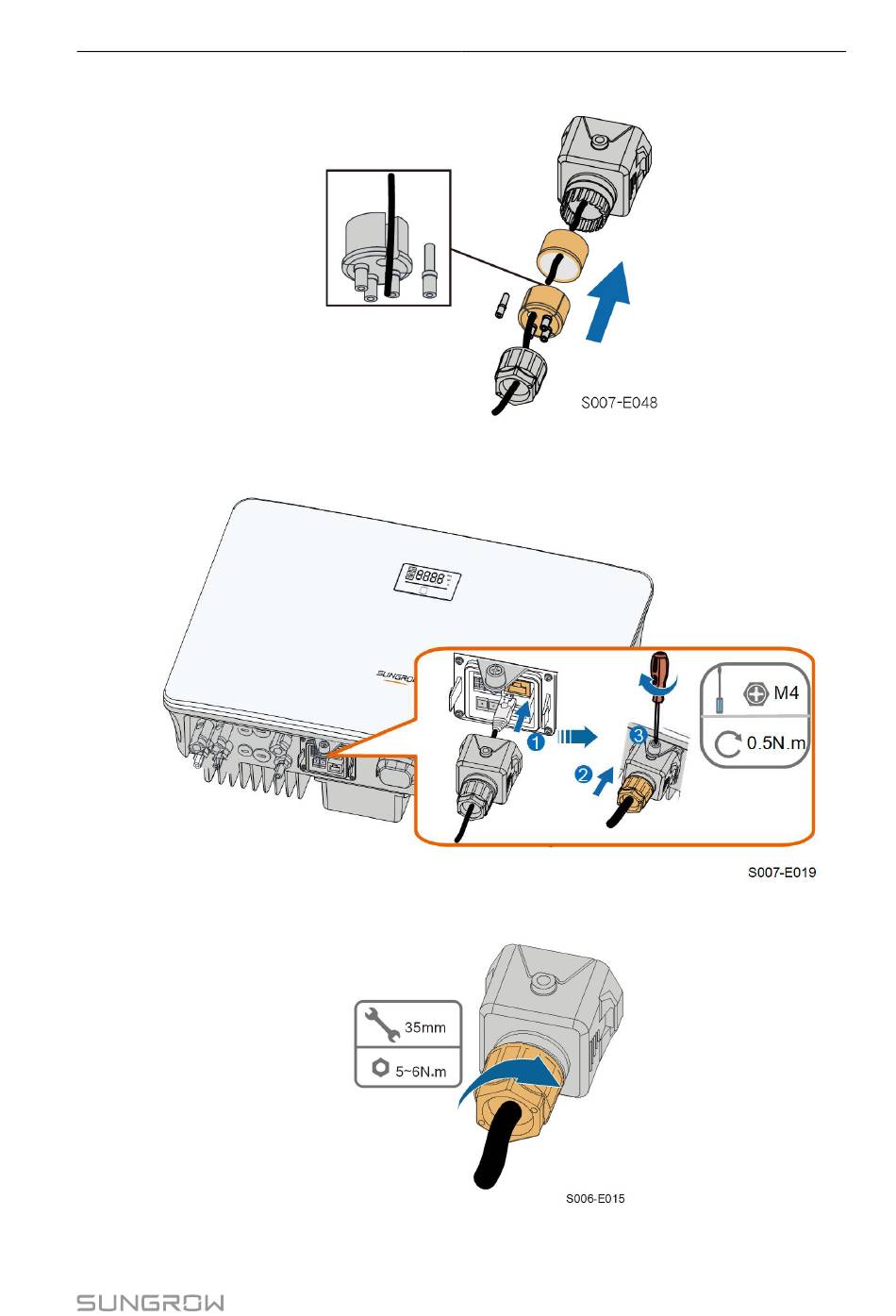

step 4 Lead the cable through the cable gland.
step 5 Plug the wires into the corresponding terminals as shown in the following figure. Ensure that
the wires are securely in place by slightly pulling them.
step 6 Slightly pull out the cable and then fasten the swivel nut. Lock the connector with the screw.
- - End
6 Electrical Connection
95
