User Manual

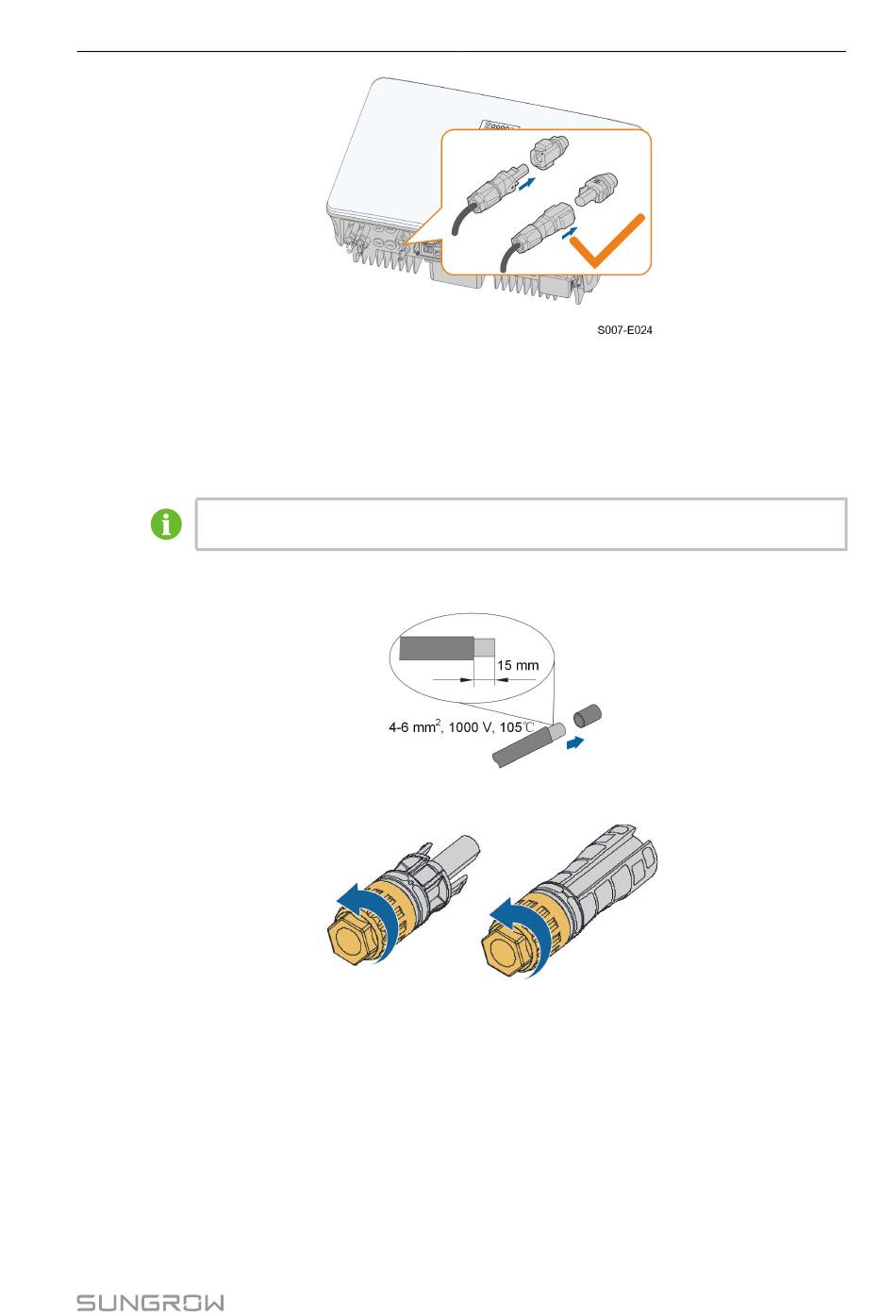

step 2 Ensure that the connectors are securely in place.
- - End
6.9.1.3 Assembling Evo2 Compatible Connector
The connector type is subject to the actual received device.
step 1 Strip 15 mm of the insulation layer from each PV cable.
step 2 Unscrew the swivel nut of the connector.
step 3 Lead the stripped cable through the swivel nut and insert it into the insulation sleeve till the
end.
6 Electrical Connection
81
