6 Electrical Connection

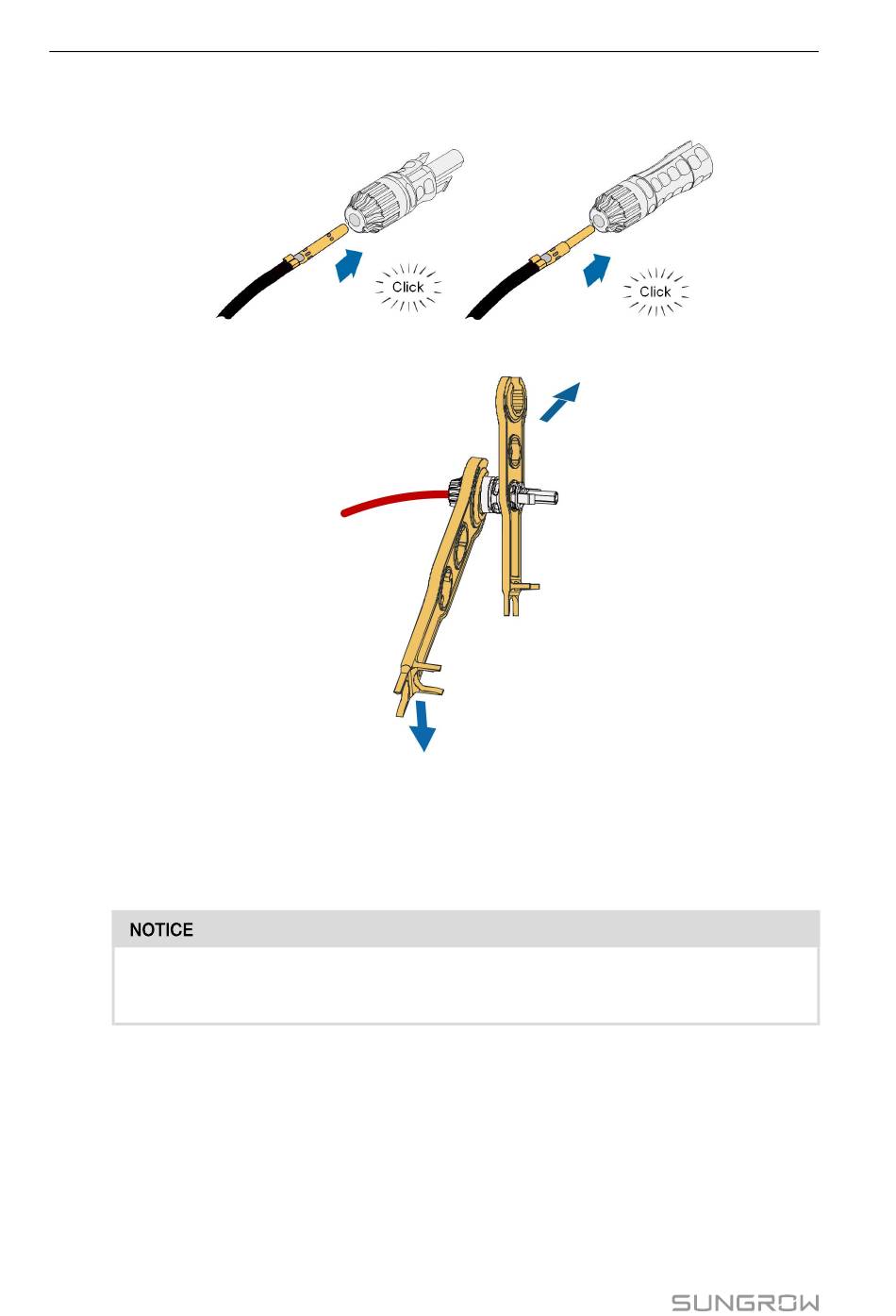

step 3 Lead the cable through cable gland, and insert the crimp contact into the insulator until it
snaps into place. Gently pull the cable backward to ensure firm connection.
step 4 Tighten the cable gland and the insulator.
step 5 Check for polarity correctness.
- - End
6.9.1.2 Installing the Battery Connector
When making the connections, always observe the specifications regarding nomi-
nal voltage and nominal current. The smallest common value is permissible.
step 1 Plug the connectors into PV4+/BAT+ and PV4-/BAT- terminals.
