2.6.1 PV Energy Storage System (PV ESS)

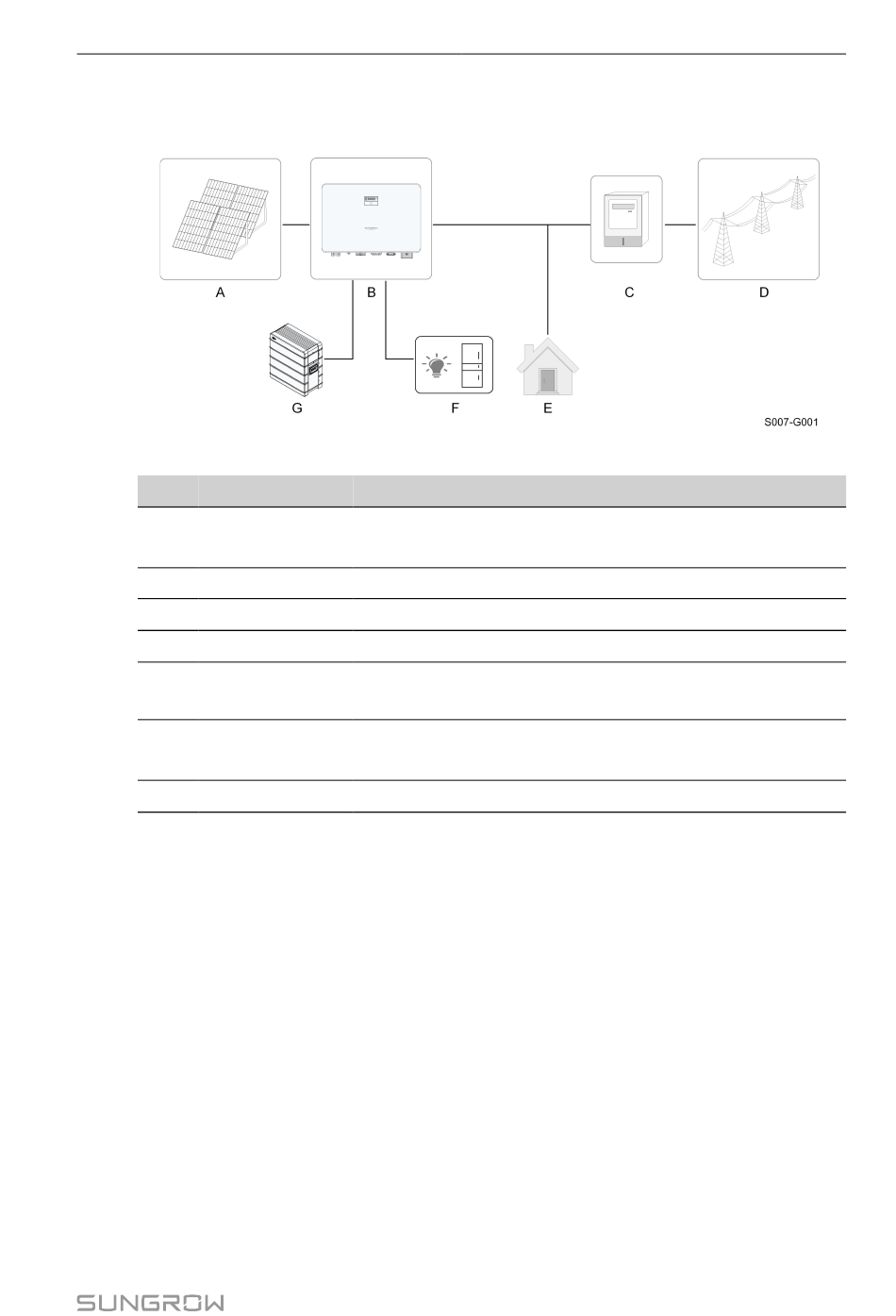

The following figure shows inverter application in a PV energy storage system.
Description
Item
PV strings
A
B Inverter
Metering device
C
Utility grid
D
E Loads
Protected house
F
loads
Battery (optional)
G
The following figure shows the common grid configurations.
figure 2-5 PV Energy Storage System
Note
Compatible with monocrystalline silicon, polycrystalline sili-
con, and thin-film modules without grounding.
SH8.0RS, SH10RS
Meter cupboard with power distribution system.
TT，TN-C，TN-S, TN-C-S.
Common loads, which will be lack of power when grid is
blackout.
Loads, connected to inverter backup port, which need unin-
terrupted power supply.
A Li-ion battery.
