- Page 1 LIFT-STIK PLS67-285 Model: __________________________ Serial Number: __________________________ Date placed in service: Presto Lifts Inc., 50 Commerce Way, Norton, MA 02766 800.343.9322 | Fax: 888.788.6496 service@prestolifts.com Owner Manual www.PrestoLifts.com May 25, 2023...
-
Page 2: Table Of Contents
2.5 Residual Risks ........................... 13 Labels ......................... 14 Installation ....................... 15 Operation ......................16 5.1 Safety Areas and Distance ......................18 5.2 Central Brake ..........................18 5.3 Brake Operation ......................... 19 5.4 Batteries and Chargers ......................20 Presto Lifts PLS67-285 Manual... - Page 3 Customer Service Department or go to our website: www.PrestoLifts.com. You will find a complete list of current Owner Manuals to print. This label (part # 10095524) WARNING is required by California Law. Cancer and Reproductive Harm - For more information visit: www.P65Warnings.ca.gov www.P65Warnings.ca.gov Presto Lifts PLS67-285 Manual...
-
Page 4: Introduction
The Presto Lifts stackers are designed for lifting, lowering and positioning a wide variety of loads. Where unique situations arise which are not covered in this manual, call Presto Lifts for further instructions. The battery-operated stackers are designed for in-plant/non-hazardous locations only. These units are not for personnel lifting. -
Page 5: Responsibilities Of Operators
8. Operator warnings and instructions 9. Actual operation of the machine. Under the direction of a qualified person, the trainee shall operate the machine for a sufficient period of time to demonstrate proficiency in actual operation of the machine. Presto Lifts PLS67-285 Manual... - Page 6 7. Capacity limitation - Rated capacity and load center shall not be exceeded when loads are transferred to the platform. Presto Lifts PLS67-285 Manual...
- Page 7 13. Problems or malfunctions - Any problem(s) or malfunction(s) that affect the safety of operations shall be repaired prior to the use of the machine. Presto Lifts PLS67-285 Manual...
-
Page 8: General Description

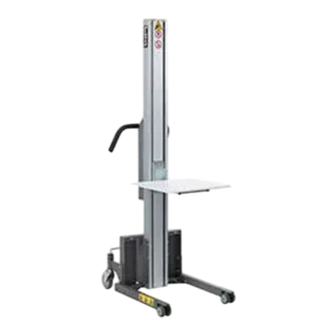

The Presto Lifts/ECOA lifter – general description A Presto Lifts/ECOA lifter, is a battery-operated lifting device moved around manually, used to handle a wide variety of items, to reduce heavy and unnatural lifting from personnel, the intention is to improve work life in regards of personal health and safety. -
Page 9: Specifications
Presto Lifts/ECOA cannot be held responsible for any modifications on the lift or attached equipment, not authorized by Presto Lifts/ECOA. Do only use original spare parts, otherwise Presto Lifts/ECOA cannot be held liable for the function and safety of the lift. -
Page 10: Safety
WARNING Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE Indicates information considered important, but not hazard-related (e.g., messages relating to property damage). Presto Lifts PLS67-285 Manual... -
Page 11: Typographic Convention
This machine shall be installed, operated, and maintained by trained and/or qualified personnel only. In order to provide for the safe operation of these stackers, Presto Lifts has identified certain hazards that may occur during the installation, maintenance and use of these lifts. For safety reasons these units are designed to be serviced or repaired in the fully lowered position. -
Page 12: General Safety Precautions During Use
The load's center of gravity to be no further than 15.7in/400 mm from the mast. The lifter should only be cleaned by wiping with a damp cloth, otherwise water may enter into contacts and control panel. The cam belt should be replaced every 8 years. Presto Lifts PLS67-285 Manual... -
Page 13: Residual Risks
C: Do not put objects or limbs (feet, hands, fingers etc.) into any opening of the lifter. D: Do not put limbs (feet, hands, fingers etc.) in the front wheel. E: Do not put limbs (feet, hands, fingers etc.) in the back wheel. Example: Load Tool Lifter Ground Presto Lifts PLS67-285 Manual... -
Page 14: Labels
Labels If any of the labels below become illegible, contact Presto Lifts Parts Department to orcer replacement ones. Item Item Located on bottom of control box Located on top of control box Multi-Visual Indicator Battery Level | Weight Capacity | On/Off Visual... -
Page 15: Installation
Inspect the machine, all components, wiring, electrical connections, hydraulic hoses and fittings for damage. Presto Lifts tests and inspects every piece of equipment prior to shipment. If damage is apparent, a freight claim must be filed with the freight company. -
Page 16: Operation
Uneven or off-center loading may cause excessive wear or permanent damage. When transporting a load, it shall be lowered to the lowest possible position and secured to ensure the load cannot slide. Presto Lifts PLS67-285 Manual... - Page 17 The lifter will lower while the button is pressed Normal speed ⇩ 3 Lifting The lifter will lift while the button is pressed Reduced speed 4 Lowering The lifter will lower while the button is pressed Reduced speed Presto Lifts PLS67-285 Manual...
-
Page 18: Safety Areas And Distance
The three different positions for the brake is pictured below. Neutral position: The rear wheels can turn and swivel without limitations Braked position: Rear wheels are locked in both rotation and swivel Swivel lock position: Rear wheels can rotate but are locked and cannot swivel Presto Lifts PLS67-285 Manual... -
Page 19: Brake Operation
Powder-coated steel (1.0037 / S235) Sledge Electro-galvanized steel (1.0037 / S235) Cover for control box Powder-coated steel (1.0037 / S235) Remote Polyamide 6 Wheel frame Powder-coated steel (1.0037 / S235) Front wheels Polyurethane Back wheels Polyamide and Polyurethane Presto Lifts PLS67-285 Manual... -
Page 20: Batteries And Chargers
Batteries must be recharged immediately. Orange indicator: The batteries are functionally charged. Green indicator: The batteries are fully charged. Safety when discharged Using discharged batteries means an extreme stress for the battery and should be avoided. Presto Lifts PLS67-285 Manual... -
Page 21: Attachments And Tools
Boxes handled with the platform must not be substantially larger than the platform, as there is Boxes handled with the platform must not be substantially larger than the platform, as there is risk of dropping the item. risk of dropping the item. Platform Platform Presto Lifts PLS67-285 Manual... -
Page 22: V-Cradle
When handling an item, the operator must ensure that the mandrel passes completely through Safety when using the boom/double boom the item. When handling an item, the operator must ensure that the mandrel passes completely through the item. Boom Double Boom Boom Double Boom Presto Lifts PLS67-285 Manual... -
Page 23: Reel Manipulators
1: Pull and hold the red button 4: Hold on to the grip. (safety lock). 3: Rotate the red handle until the 5: Open the positioning bolt. safety lock is activated. 2: Rotate the red handle. 6: Turn the tool slowly. Presto Lifts PLS67-285 Manual... -
Page 24: Boom With V-Cradle
It is important that the reel is placed in the middle of the V-cradle in a longitudinal direction in order to prevent uneven loading or the reel falling off. Reels handled with V-cradle should not be more than 500mm in diameter; otherwise, there is a risk of dropping the reel. Boom with V-cradle Presto Lifts PLS67-285 Manual... -
Page 25: Flex Attachment
Collars can be mounted on the Flex Attachment. Collars are used to specify fixed widths. Collars options Collars can be mounted on the Flex Attachment. Collars are used to specify fixed widths. Arm options: KA1: Arm options: KA1: Presto Lifts PLS67-285 Manual... -
Page 26: Boom With Hook & Traverse/Spreader Section
! Ensure that the Swing latch is locked ! 5 : Use the control device to lift the Boom arm. 5 : Use the control device to lift the Boom arm. Presto Lifts PLS67-285 Manual... - Page 27 The tool must be lowered to the lowest possible position, when steering the lift. The load must be in balance and must not swing, when steering the lift. Ensure that the Lifting straps are not tangled. Presto Lifts PLS67-285 Manual...
-
Page 28: Maintenance And Inspection
Maintenance and Inspection Maintenance and Inspection Presto Lifts strongly recommends the following checks be carried out on a daily basis and before using the All Presto Lifts products are designed for minimum maintenance, however some safety checks and All Presto Lifts products are designed for minimum maintenance, however some safety checks and lift. -
Page 29: Cleaning Instructions
Key inspection points Test that all functions are working properly before the lifter is placed back into service. Presto Lifts PLS67-285 Manual... -
Page 30: Resolving Faults
Check the charging frequency. Does should be replaced or the fuse on the the light quickly change to green charger is broken or the main switch is when connected? off. Presto Lifts PLS67-285 Manual... -
Page 31: Electrical
Electrical chart 130 Electrical Presto Lifts PLS67-285 Manual... -
Page 32: Spare Parts
Impact 130M - Mast complete Spare Parts 11.1 Mast Complete Presto Lifts PLS67-285 Manual... -
Page 33: Mast
11.2 Mast Presto Lifts PLS67-285 Manual... -
Page 34: Control Box
Control Box Presto Lifts PLS67-285 Manual... -
Page 35: Standard Legs - Fc1 (Example)
Standard Legs - FC1 (Example) Presto Lifts PLS67-285 Manual... -
Page 36: Annual Inspection
Annual inspection Annual Inspection Date of inspection: Controller: Comments: ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ ____________________ ____________________ _________________________________ Presto Lifts PLS67-285 Manual... -
Page 37: Warranty & Contact Information
Presto Lifts with the machine’s serial number. Any claim for breach of this warranty must be received in writing by Presto Lifts within the warranty period. Warranties shall not cover failure or defective operation, caused by misuse, misapplication, negligence or accident, exceeding recommended capacities, or any alteration or repair of the item purchased which has not been authorized by Presto Lifts.
