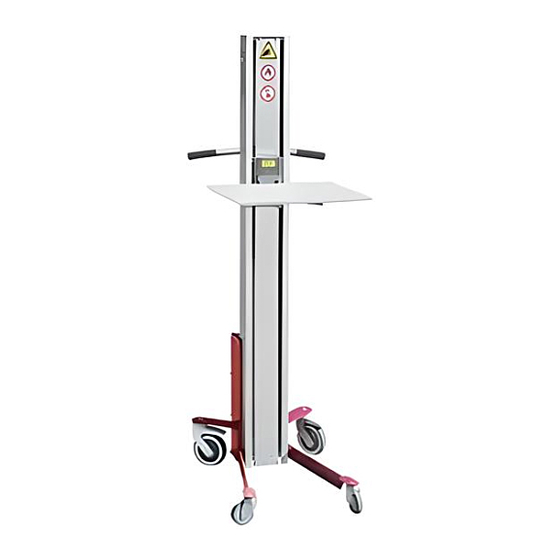

Lift Stik
PLS53-150P
PLS53-150W
Installation, Operation
and Service Manual
Model Number ___________________
Serial # _________________________
Date Placed in Service _____________
IMPORTANT: READ CAREFULLY
BEFORE INSTALLING OR OPERATING LIFT
Part orders are subject to a $50 minimum charge.
March 2016
Advertisement
Table of Contents
Related Manuals for Presto Lifts PLS53-150P
Summary of Contents for Presto Lifts PLS53-150P
- Page 1 Lift Stik PLS53-150P PLS53-150W Installation, Operation and Service Manual Model Number ___________________ Serial # _________________________ Date Placed in Service _____________ IMPORTANT: READ CAREFULLY BEFORE INSTALLING OR OPERATING LIFT Part orders are subject to a $50 minimum charge. March 2016...
-
Page 2: Table Of Contents
C O N T E N T S S E C T I O N 1: Introduction ......................4 Responsibility of Owners and Users ...............5 S E C T I O N 2: Safety Alert Symbols and Signal Words ..............6 Safety ........................7 S E C T I O N 3: Installation .......................7 A. -
Page 3: Introduction
INTRODUCTION This manual attempts to provide all of the information necessary for the safe and proper installation, operation and maintenance of Presto Lifts Inc. Lift Stik. It is important that all personnel involved with the installation, maintenance or operator of the stacker read this manual. Additional manuals are available upon request or at www.prestolifts.com. -
Page 4: Responsibility Of Owners And Users
Responsibility of Owners and Users Inspection and Maintenance The device shall be inspected and maintained in proper working order in accordance with Presto’s owner’s manual. Removal from Service Any device not in safe operating condition such as, but not limited to, excessive leakage, missing rollers, pins, or fasteners, any bent or cracked structural members, cut or frayed electric, hydraulic, or pneumatic lines, damaged or malfunctioning controls or safety de- vices, etc. -
Page 5: Safety Alert Symbols And Signal Words
SAFETY ALERT SYMBOLS AND SIGNAL WORDS The safety of all persons operating, maintaining, repairing, or in the vicinity of this equipment is of paramount concern. This is a powerful machine with moving parts, and is capable of causing personal injury if proper precautions are not taken. -
Page 6: Safety
DO NOT INSTALL OR OPERATE THESE LIFTS and that the lift is complete. Presto Lifts Inc. tests and WITHOUT CAREFULLY READING THIS MANUAL. inspects every piece of equipment prior to shipment. If... -
Page 7: Daily Operations Maintenance Checks
OPERATOR Do not overload. Check load center and load weight capacities on manufacturer’s nameplate. INSTRUCTIONS Make sure travel and work area is clear of obstructions. Check overhead clearance before lifting loads or transporting. WARNINGS Make sure floor lock pad is in firm contact with floor before lifting load, lowering load or DO NOT use this lift until you have been trained and using as a workstation. -
Page 8: Operations
USE OF THIS LIFT TRUCK COULD RESULT the instructions for the battery charger they are IN INJURY AND/ OR DAMAGE TO LOAD AND available free of charge by calling Presto Lifts @ EQUIPMENT. 1-800-343-9322. Inspect the lift for damaged or worn parts. Do not use 5. -
Page 9: Battery Charger Connection Precautions
5. When disconnecting the charger, disconnect AC cord from the electrical outlet before removing any clips from battery or chassis. IF THESE INSTRUCTIONS ARE NOT CLEAR OR IF THERE ARE ANY QUESTIONS PLEASE CON- TACT PRESTO LIFTS INC. PRESTO OWNER’S MANUAL Page 10 LIFT STIK... - Page 10 BATTERIES AND CHARGER The lifter is charged with the enclosed charger, which is connected to the 230V charging plug on the lifter. The charger should be connected daily as total dis- charge can damage the battery or shorten its life. The charger automatically charges the batteries and switches off when the batteries are fully charged.
-
Page 11: Troubleshooting
TROUBLESHOOTING FAULT TYPE CHECK THE FOLLOWING RESOLVED BY Tighten the belt with the two screws at The belt cracks Is the belt slack? the top of the mast. (the timing belt jumps onto the gear sprocket) Is the belt worn? Replace the belt Adjust the screw at the top of the mast, The belt squeaks... -
Page 12: Testing Electronic Components
S E C T I O N 6 Testing Electronic Components PRESTO OWNER’S MANUAL Page 13 LIFT STIK... - Page 13 Lifter Does Not Go Up or Down Take off the load of the platform. Press the ON button. Connect charger and press the H-Commander (or the activator 13). If it starts to work a little bit in both directions, it is most likely the fuse has broken or the batteries are worn down.
- Page 14 Testing Charger Take off front cover of the mast and locate the back side of charger inlet. Connect the charger. Led # 2 will shortly turn green and then go off. Led #1 will turn red to indicate the charger is in step 1 (Bulk charging).
- Page 15 Electrical Diagram 10. Electrical Chart PRESTO OWNER’S MANUAL Page 16 LIFT STIK...
-
Page 16: Ordering Replacement Parts
Ordering Replacement Parts Presto Lifts has carefully chosen the components in your unit to be the best available for the purpose. Replacement parts should be identical to the original equipment. Presto Lifts will not be responsible for equipment failures resulting from the use of incorrect replacement parts or from unauthorized modifications to the unit. -
Page 17: Restocking Policy
PARTS Standard parts may be returned with a 20% restocking fee. Modified or custom-engineered parts are not returnable. Unfortunately, due to potentially concealed damage, all sales of electrical assemblies are final. QUALITY ISSUES Should you feel there is a quality problem, please contact the seller to ask questions and gather information on how to rectify the issue. -
Page 18: Warranty
There are no implied warranties of any kind, more specifically, there are no warranties of merchantability or fitness for any particular purpose. Presto Lifts' sole warranty shall be as set forth in this limited warranty. Presto Lifts will elect to repair or replace a defective component without charge, if any components should become defective within the limited warranty period.
