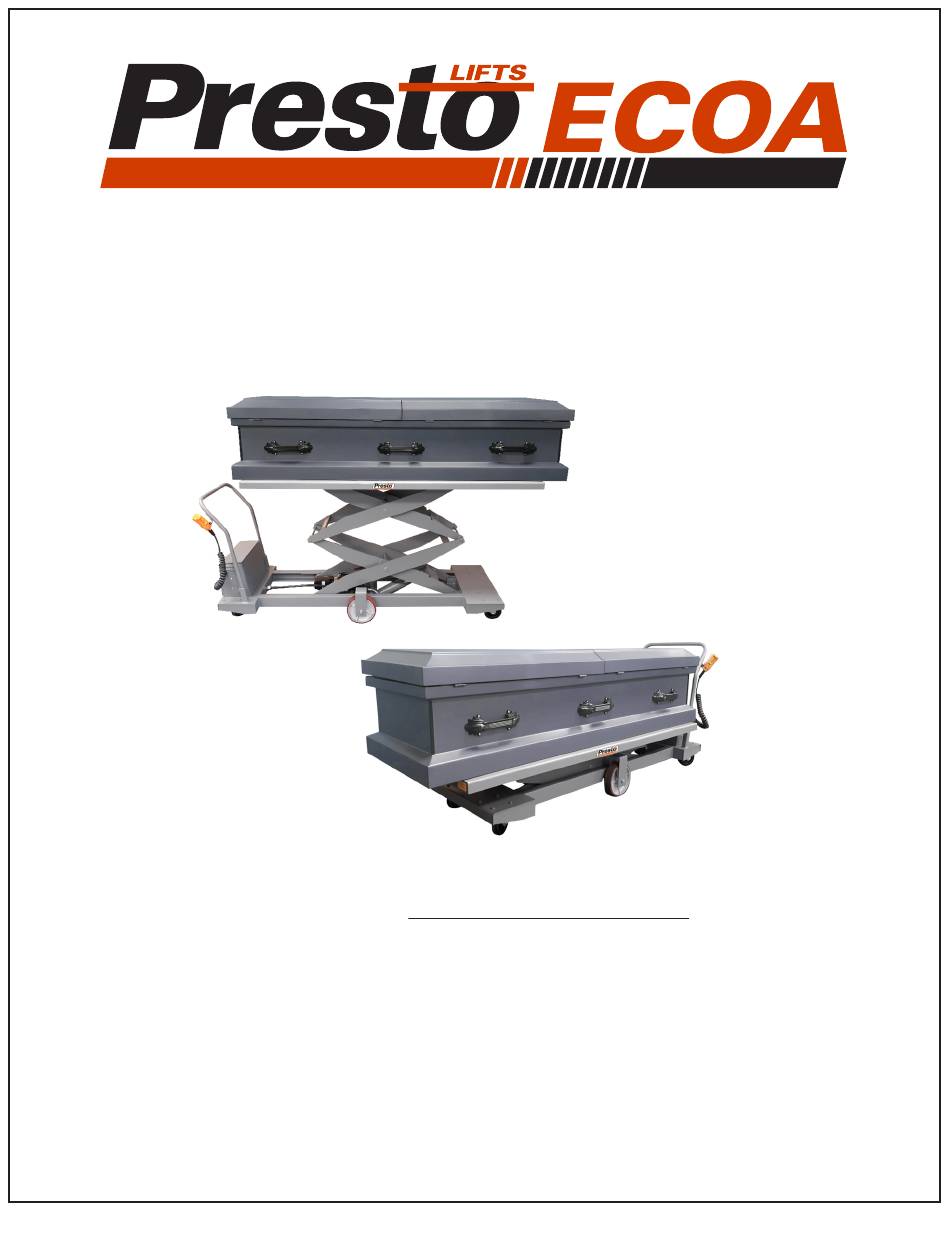

XBP68-05 Owner's Manual

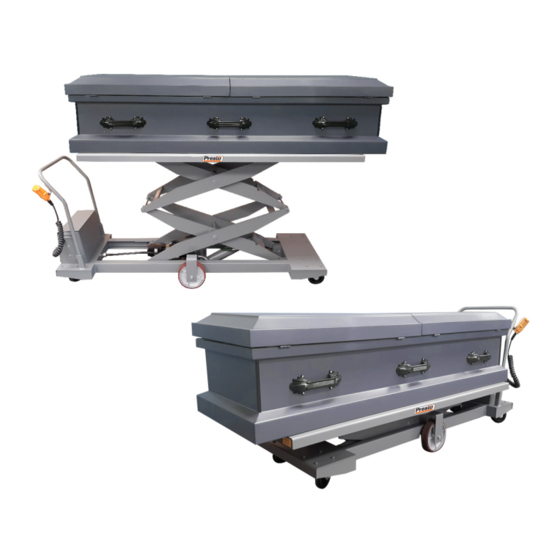

Portable DC Powered Mortuary Lift
Model:
Serial Number:
Date placed in
service:
50 Commerce Way, Norton, MA 02766
__________________________
__________________________
Presto Lifts Inc.
Phone: 800.343.9322
Fax: 888.788.6496
www.PrestoLifts.com
Email: service@prestolifts.com
February 19, 2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Presto Lifts XBP68-05
Summary of Contents for Presto Lifts XBP68-05
- Page 1 XBP68-05 Owner’s Manual Portable DC Powered Mortuary Lift Model: Serial Number: __________________________ Date placed in __________________________ service: Presto Lifts Inc. 50 Commerce Way, Norton, MA 02766 Phone: 800.343.9322 Fax: 888.788.6496 www.PrestoLifts.com Email: service@prestolifts.com February 19, 2021...
-
Page 2: Table Of Contents
Wiring Schematic ........................ 20 Electrical Arrangement ....................... 21 Battery Charging ......................... 22 Hydraulics ......................23 10.1 Hydraulic Fluid ........................23 10.2 Hydraulic Schematic ......................23 10.3 Hydraulic Arrangement ....................24 Warranty & Contact Information ............... 25 Presto Lifts XBP68-05 Manual... - Page 3 This label (part # 10095524) is WARNING required by California Law. For Cancer and Reproductive Harm - more information visit: www.P65Warnings.ca.gov www.P65Warnings.ca.gov Presto Lifts XBP68-05 Manual...
-
Page 4: Introduction
3. Retrained, if necessary, based on the owners/user’s observation and evaluation of the operator. Modifications and additions shall not be performed without the manufacturer’s prior written approval. Where such authorization is granted, capacity, operation, and maintenance instruction plates, tags, or decals shall be changed accordingly. Presto Lifts XBP68-05 Manual... -
Page 5: Responsibilities Of Operators
Before Operations - The operator shall: 1. Read and understand the manufacturer’s operating instruction(s) and user’s safety rules or have them explained. 2. Understand all labels, warnings, and instructions displayed on the machine or have them explained. Presto Lifts XBP68-05 Manual... - Page 6 13. Problems or malfunctions - Any problem(s) or malfunction(s) that affect the safety of operations shall be repaired prior to the use of the machine. Presto Lifts XBP68-05 Manual...
-
Page 7: Safety
CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE Indicates information considered important, but not hazard- related (e.g., messages relating to property damage). Presto Lifts XBP68-05 Manual... -
Page 8: Machine Specifications
3. Machine Specifications Model: Mortuary Lift (XBP68-05) Overall Length: 86 1/8” 30” (Standard Platform) Overall Width: 24 3/4” (Roller/Ball Transfer Platform Platform Length: 74” 30” (Standard Platform) Platform Width: 24” (Roller/Ball Transfer Platform) 14 3/8” (Standard Platform) Lowered Height: 16 3/4” (Roller/Ball Transfer Platform) 82 3/8”... - Page 9 HEIGHT HEIGHT 68" 68" VERTICAL VERTICAL TRAVEL TRAVEL 35 5/8" 35 5/8" 16 3/4" 16 3/4" LOWERED LOWERED HEIGHT HEIGHT 16 1/4" 16 1/4" 20 7/8" 20 7/8" END LOAD ROLLER TOP SIDE LOAD ROLLER TOP Presto Lifts XBP68-05 Manual...
-
Page 10: Labeling
LD DCL 2.75X5.50 TO AVOID PERSONAL IN 10006267 LD 1.62x7.00 PRESTO ALPHA C180N LD DCL 1.00X6.00 A DANGER TO AVOID BODIL 10089458 BK-LD DCL 1.25X2.75 CAPACITY 500 LBS 2998433 LD DCL 1.00X8.50 TO AVOID BODILY INJURY, 10089457 ITEM Presto Lifts XBP68-05 Manual... -
Page 11: Setup
SET SCREW (BOTH SIDES) 4. Plug the battery charger in and allow the battery to fully charge before continuing. See section 9.3 Battery Charging. 5. Ensure breather plug has been installed. See section 10.3 Hydraulic Arrangement. Presto Lifts XBP68-05 Manual... -
Page 12: Testing
10. Lower the lift approximately one foot, then release the button. The motor should turn off and the lift should come to a stop and hold its position. 11. Lower the lift to the fully lowered position. Presto Lifts XBP68-05 Manual... -
Page 13: Operation
To engage the floor lock, press down on the lever until floor lock locks into the extended position. Lift up on the lever to disengage the floor lock. FLOOR LOCK FLOOR LOCK ENGAGED DISENGAGED Presto Lifts XBP68-05 Manual... -
Page 14: Raising And Lowering
Plug the battery charger in when the lift is not in use. The battery charger supplied with this lift will not over-charge the battery, as such, the battery charger can be left plugged in whenever the lift is not in use. See section 9.3 Battery Charging. Presto Lifts XBP68-05 Manual... -
Page 15: Maintenance & Repair
Do not enter beneath the raised lift. All maintenance to be performed with the lift in the lowered position. See section 7.1 Securing the Lift for Maintenance. Presto Lifts XBP68-05 Manual... -
Page 16: Securing The Lift For Maintenance
Platform weight: Approximately 162 lb. 5. Lift the maintenance bar up and lower the platform onto the maintenance bar. LIFT MUST BE IN FULLY LOWERED POSITION HINGE PLATFORM PLATFORM UP RAISE MAINTENANCE DEVICE PLATFORM LOWERED ONTO MAINTENANCE DEVICE Presto Lifts XBP68-05 Manual... -
Page 17: Lifts Roller Transfer Platforms
Take care not to damage the roller when removing it and store it in a safe location during maintenance. END LOAD ROLLER TRANSFER PLATFORM SIDE LOAD ROLLER TRANSFER PLATFORM SPRING LOADED HEX SPRING LOADED HEX AXLE (BOTH ENDS OF AXLE (BOTH SIDES) EACH ROLLER) Presto Lifts XBP68-05 Manual... -
Page 18: Periodic Maintenance
Inspect all casters. Ensure casters roll smoothly and rubber is not damaged. Repair or replace as necessary. Ensure casters mounting hardware is tight. • Ensure battery terminals are clean and all connections are tight. • Inspect platform rollers. Ensure rollers roll smoothly. (Roller/ball transfer tops only) Presto Lifts XBP68-05 Manual... -
Page 19: Troubleshooting
See section 10.1 Hydraulic Lift raises/lowers Fluid. slowly Battery voltage is low Charge the battery, then test again. Inspect all hoses and fittings for leaks. Lift drifts down Hydraulic fluid leak Repair/replace components as necessary. Presto Lifts XBP68-05 Manual... -
Page 20: Electrical
Control Voltage 12 VDC AGM Sealed Lead Acid Battery Nominal voltage: 12 VDC Battery Nominal capacity @ 20 hour rate: 55 Amp-Hours Group Size: 24 Motor 1/3 HP @ 3450 RPM (12 VDC) intermittent duty Wiring Schematic Presto Lifts XBP68-05 Manual... -
Page 21: Electrical Arrangement
Electrical Arrangement MOTOR POSITIVE TERMINAL NEGATIVE BATTERY CHARGER TERMINAL UP/DOWN SOLENOIDS Presto Lifts XBP68-05 Manual... -
Page 22: Battery Charging
The green light indicates your battery is ready to use. STATUS LEDS IN LINE FUSE HOLDER FUSE: BUSSMAN AGX-10 (OR EQUIVALENT) 3/8” RING TERMINALS 115 VAC POWER CORD Presto Lifts XBP68-05 Manual... -
Page 23: Hydraulics
The hydraulic fluid reservoir is to be full (approximately 3/4” below the fill plug) only when the lift is in the fully lowered position. The hydraulic fluid should be transparent with no burnt or rancid smell. 10.2 Hydraulic Schematic Presto Lifts XBP68-05 Manual... -
Page 24: Hydraulic Arrangement
10.3 Hydraulic Arrangement HPU PUMP HPU MOTOR DOUBLE ACTING CYLINDER HYDRAULIC FLUID RESERVOIR FILL PORT/BREATHER FIXED DOWN SPEED FLOW CONTROL Presto Lifts XBP68-05 Manual... -
Page 25: Warranty & Contact Information
Presto Lifts with the machine’s serial number. Any claim for breach of this warranty must be received in writing by Presto Lifts within the warranty period. Warranties shall not cover failure or defective operation, caused by misuse, misapplication, negligence or accident, exceeding recommended capacities, or any alteration or repair of the item purchased which has not been authorized by Presto Lifts.
