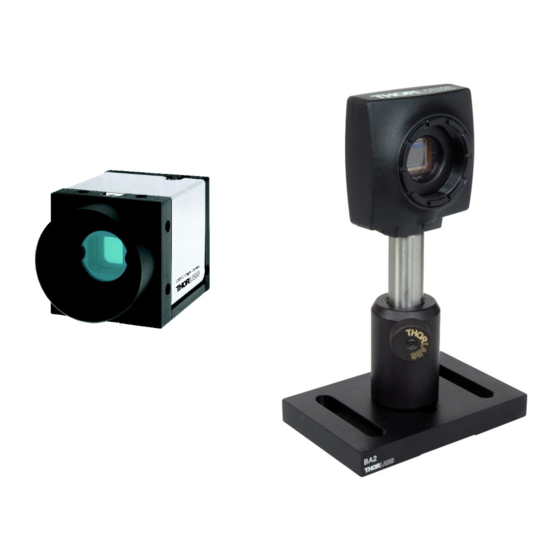

THORLABS LabView DCU2 Series Programming Manual

High-resolution usb2.o cmos and ccd cameras
Hide thumbs Also See for LabView DCU2 Series:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guidesbox.com

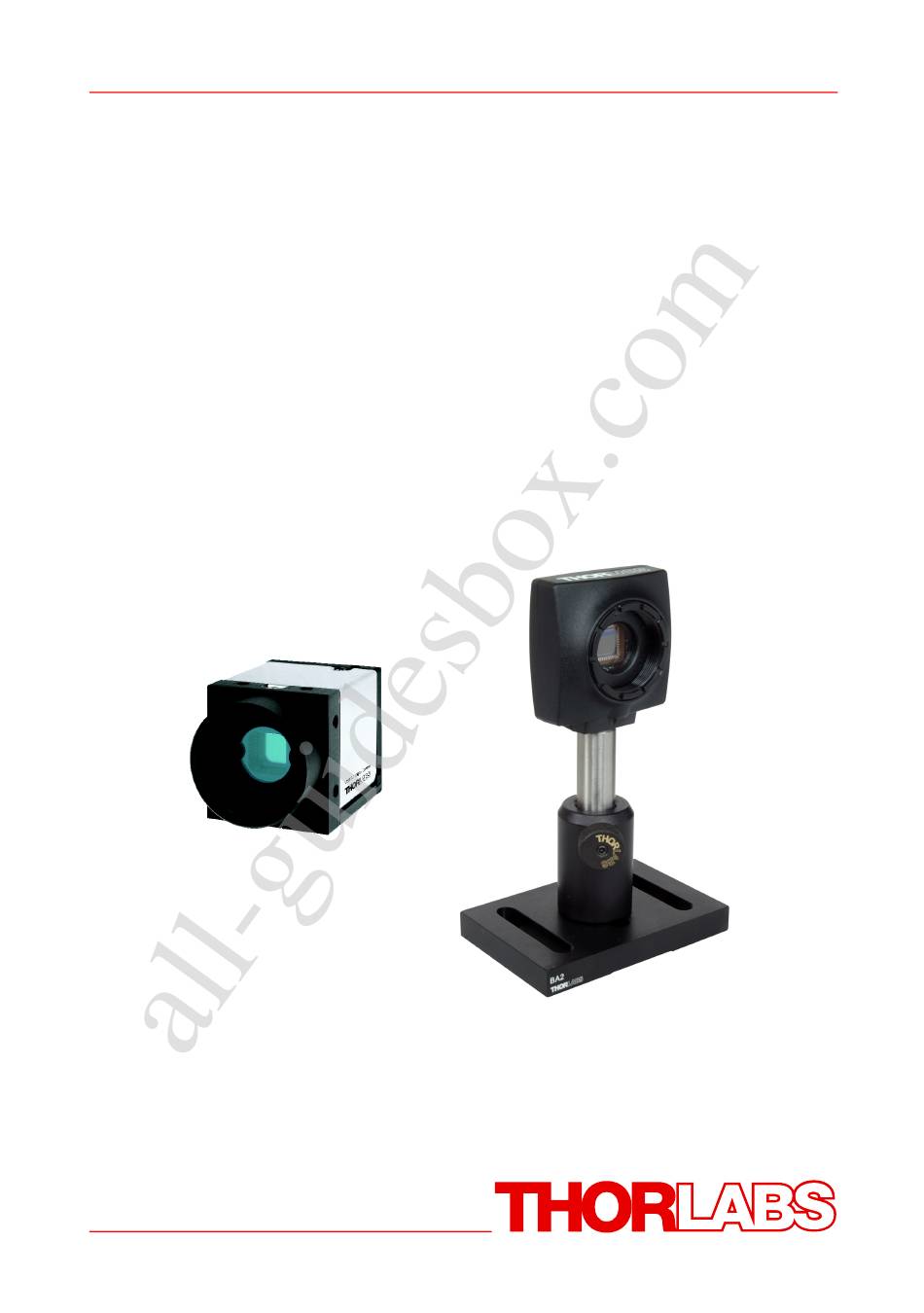

Programming Manual
LabView®
Thorlabs Instrumentation
High-Resolution USB2.0 CMOS and CCD
Cameras
DCU2xxx
DCC1x45x
2010

Advertisement

loading
Need help?

Need help?

Do you have a question about the LabView DCU2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for THORLABS LabView DCU2 Series

Summary of Contents for THORLABS LabView DCU2 Series

  • Page 1 All manuals and user guides at all-guidesbox.com Programming Manual LabView® Thorlabs Instrumentation High-Resolution USB2.0 CMOS and CCD Cameras DCU2xxx DCC1x45x 2010...
  • Page 2 All manuals and user guides at all-guidesbox.com 3.5.2 Version: 22.09.2010 Date: © 2010 Thorlabs © 2010 Thorlabs...
  • Page 3 ........................... 29 20 IsMemoryBoardConnected ........................... 30 21 IsVideoFinish ........................... 30 22 LoadParameters ........................... 31 23 LockSeqBuf ........................... 32 24 MemoryFreezeVideo ........................... 33 25 ResetToDefault ........................... 33 26 SaveParameters ........................... 34 27 SetAllocatedImageMem ........................... 35 28 SetAOI ........................... 36 © 2010 Thorlabs...
  • Page 4 ........................... 55 47 SetSubSampling ........................... 56 48 StopLiveVideo ........................... 57 49 UnlockSeqBuf ........................... 58 Part III Appendix 1 Example programs ........................... 62 2 List of error messages ........................... 63 3 Copyright ........................... 66 4 Addresses ........................... 67 © 2010 Thorlabs...
  • Page 5 This manual contains "WARNINGS" and "ATTENTION" label in this form, to indicate danger for persons or possible damage of equipment. Please read these advises carefully! NOTE This manual also contains "NOTES" and "HINTS" written in this form. © 2010 Thorlabs...
  • Page 6 All manuals and user guides at all-guidesbox.com...
  • Page 7 All manuals and user guides at all-guidesbox.com General Information DCx camera Part...
  • Page 8 Please make sure to also read the file named WhatsNew.txt which you will find on the installation CD and in the C:\Program Files\Thorlabs\DCx camera\Help directory when the installation is completed. This file contains late-breaking information on new functions and fixed issues.
  • Page 9 To use maximum bandwidth, we recommend connecting the cameras directly to the USB 2.0 ports on the mainboard. USB 2.0 ports on PCI/PCIe cards and the USB 2.0 ports on the front of the PC mostly supply lower bandwidths. © 2010 Thorlabs...
  • Page 10 All manuals and user guides at all-guidesbox.com DCx camera Detailed information on connecting and operating DCx cameras can be found in the Installation chapter in the DCx Operation Manual © 2010 Thorlabs...
  • Page 11 All manuals and user guides at all-guidesbox.com uc480 VIs DCx camera Part...
  • Page 12 Functions that use an array that was created beforehand in another VI do not function properly. The array is located in a different area of memory after the VI is exited. If this can be bypassed, all functions can be used as usual. Related functions: List of similar or associated VIs. © 2010 Thorlabs...
  • Page 13 (bits per pixel). The number of image buffers for a sequence (memory ID) is limited to the integer value range. Parameters: Image buffer ID Memory ID Image buffer Image Memory Handle on camera Camera Handle In/Out Error code error in/out Related functions AllocAndAddToSequence AllocAndSetImageMem SetImageMem © 2010 Thorlabs...
  • Page 14 24-/32-bit arrays into a two-dimensional U32 ArrayToVision array. This is necessary in order to process the data further with NI Vision. Parameters: Image height Height Image width Width Color format Bits/Pixel Memory array to be converted InArray Converted memory array OutArray © 2010 Thorlabs...
  • Page 15 Function synchronizes image capture to the next IS_DONT_WAIT (0) VSYNC, but returns immediately Function synchronizes image capture to the next IS_WAIT (1) VSYNC, and only returns thereafter Handle on camera Camera Handle In/Out Error code error in/out Related functions FreezeVideo © 2010 Thorlabs...
  • Page 16 , no image buffer is set to active. To set an image ClearSequence buffer as active image buffer, must be used. SetImageMem Parameters: Handle on camera Camera Handle In/Out Error code error in/out Related functions AddToSequence AllocAndAddToSequence © 2010 Thorlabs...
  • Page 17 ExitCamera Description: logs off the passed camera handle and frees up the data structures and ExitCamera memory areas used by the uc480 camera. Parameters: Handle on camera Camera Handle In/Out Error code error in/out Related functions InitCamera © 2010 Thorlabs...
  • Page 18 All manuals and user guides at all-guidesbox.com DCx camera FreeImageMem Description: frees up an allocated image buffer. FreeImageMem Parameters: Array memory Image Memory ID for this memory Memory ID Handle on camera Camera Handle In/Out Error code error in/out Related functions AllocAndSetImageMem SetImageMem © 2010 Thorlabs...
  • Page 19 All manuals and user guides at all-guidesbox.com uc480 VIs FreezeVideo Description: digitizes an image and stores it in the active image buffer. FreezeVideo Parameters: Handle on camera Camera Handle In/Out Error code error in/out Related functions CaptureVideo HasVideoStarted IsVideoFinish © 2010 Thorlabs...
  • Page 20 LabVIEW array with the image information. GetActImgMem Parameters: Handle on camera Camera Handle In/Out Will contain the identification number of the Memory Number image buffer Image buffer array Image Memory Out Error code error in/out Related functions GetActSeqBuf SetImageMem © 2010 Thorlabs...
  • Page 21 1 to max.: Image capture to sequence image buffer N has started LabVIEW array to which the image is currently Active Image Mem being captured LabVIEW array to which an image was last Last Image Mem captured Error code error in/out Related functions GetActImgMem © 2010 Thorlabs...
  • Page 22 Description: returns the color mode currently set. GetColorMode Parameters: Handle on camera Camera Handle In/Out Number of bits per pixel Bits/Pixel Color mode: ColorMode 0 = RGB32 1 = RGB24 6 = Y8 monochrome Related functions SetColorMode © 2010 Thorlabs...
  • Page 23 Handle on camera Camera Handle In/Out Contains the increment at which the image intervall duration can be changed Contains the maximum possible exposure time Contains the minimum possible exposure time Error code error in/out Related functions GetFrameTimeRange SetExposureTime © 2010 Thorlabs...
  • Page 24 DCx camera 2.12 GetFramesPerSecond Description: ), GetFramesPerSecond returns the number of In live operation (CaptureVideo actually captured frames per second. Parameters: Handle on camera Camera Handle In/Out Frame rate Error code error in/out Related functions GetFrameTimeRange SetFrameRate © 2010 Thorlabs...
  • Page 25 Contains the increment at which the image duration can intervall be changed Contains the maximum possible duration of an image Contains the minimum possible duration of an image Error code error in/out Related functions GetFramesPerSecond GetExposureRange SetPixelClock © 2010 Thorlabs...
  • Page 26 Parameters: Handle on camera Camera Handle In/Out Time by which the flash is delayed (in µs) Delay Out Time in which the flash is activated (in µs) Duration Out Error code error in/out Related functions SetFlashDelay SetFlashStrobe © 2010 Thorlabs...
  • Page 27 All manuals and user guides at all-guidesbox.com uc480 VIs 2.15 GetImageSize Description: returns the image size currently set. GetImageSize Parameters: Handle on camera Camera Handle In/Out Returns the image width Width Returns the image height Height Related functions SetAOI SetBinning SetSubSampling © 2010 Thorlabs...
  • Page 28 All manuals and user guides at all-guidesbox.com DCx camera 2.16 GetNumberOfCameras Description: returns the number of uc480 cameras connected to the system. GetNumberOfCameras Parameters: Number of connected uc480 cameras Number of Cameras Error code error in/out © 2010 Thorlabs...
  • Page 29 2.17 GetPixelClockRange Description: returns the range of possible pixel clock settings. GetPixelClockRange Parameters: Handle on camera Camera Handle In/Out Returns the maximum possible value Returns the minimum possible value Error code error in/out Related functions SetPixelClock GetFramesPerSecond © 2010 Thorlabs...
  • Page 30 Parameters: Handle on camera Camera Handle In/Out Will contain the digitization status: Video started = Image capture has not yet started FALSE = Image capture has started TRUE Error code error in/out Related functions IsVideoFinish FreezeVideo © 2010 Thorlabs...
  • Page 31 VI. All subsequent VIs require this handle. Parameters: Uses the first available camera Camera ID 1 - 254: Opens the camera with this ID Handle on camera Camera Handle Out Error code Error out Related functions ExitCamera © 2010 Thorlabs...
  • Page 32 This function is useful in combination with with the FreezeVideo parameter. IS_DONT_WAIT Parameters: Handle on camera Camera Handle In/Out = Image is not yet fully digitized Video Finish FALSE = Image is fully digitized TRUE Error code error in/out Related functions FreezeVideo HasVideoStarted © 2010 Thorlabs...
  • Page 33 Pointer to file name. Either the absolute path or the Filename relative path can be specified. For the camera's internal parameter sets, these would be "\\cam\\set1"/"/cam/set1," or "\\cam\\set2"/"/cam/set2." Passing displays the "Open File" window. ZERO Error code error in/out Related functions SaveParameters © 2010 Thorlabs...
  • Page 34 Parameters: Handle on camera Camera Handle In/Out Number of the image buffer to be protected Memory Number In Start address of the image buffer to be protected Image Memory In Error code error in/out Related functions UnlockSeqBuf © 2010 Thorlabs...
  • Page 35 As memory board is not supported, MemoryFreezeVideo function cannot be used. 2.25 ResetToDefault Description: sets all parameters to the default camera-specific values. ResetToDefault Parameters: Handle on camera Camera Handle In/Out Error code error in/out © 2010 Thorlabs...
  • Page 36 Pointer to file name. Either the absolute path or the Filename relative path can be specified. For the camera's internal parameter sets, these would be "\\cam\\set1"/"/cam/set1," or "\\cam\\set2"/"/cam/set2." Passing displays the "Save As" window. ZERO Error code error in/out Related functions LoadParameters © 2010 Thorlabs...
  • Page 37 Camera Handle In/Out Image width Width Image height Height Image color depth (bits per pixel) BitsPixel Allocated image buffer Image Memory Out Image buffer memory ID Memory ID Out Error code error in/out Related functions AllocAndAddToSequence AllocAndSetImageMem GetActImgMem © 2010 Thorlabs...
  • Page 38 Width of the AOI Width In/Out Vertical position of the AOI YPos In/Out Horizontal position of the AOI XPos In/Out Mode Set image AOI IS_SET_IMAGE_AOI (32770) Returns current image AOI IS_GET_IMAGE_AOI (32771) Error code error in/out Related functions SetBinning SetSubSampling © 2010 Thorlabs...
  • Page 39 Returns the current Auto Gain settings IS_GET_ENABLE_AUTO_GAIN (34817) Activates/deactivates the Auto Shutter IS_SET_ENABLE_AUTO_SHUTTER (34818) function Returns the current Auto Shutter settings IS_GET_ENABLE_AUTO_SHUTTER (34819) Activates/deactivates the Auto White Balance IS_SET_ENABLE_AUTO_WHITEBALANCE (34820) function Returns the current Auto White Balance IS_GET_ENABLE_AUTO_WHITEBALANCE (34821) settings © 2010 Thorlabs...
  • Page 40 Sets automatic deactivation of the Auto White IS_SET_AUTO_WB_ONCE (32782) Balance function Returns the status of automatic deactivation IS_GET_AUTO_WB_ONCE (32783) Activate/deactivate auto functions enable Returns the setting queried with Get Value Error in/out Error code Related functions SetExposureTime SetHardwareGain SetFrameRate © 2010 Thorlabs...
  • Page 41 Activates horizontal and vertical four-pixel binning Returns the current setting IS_GET_BINNING (32768) Returns the supported binning modes IS_GET_SUPPORTED_BINNING (32769) Contains the current mode when using Value IS_GET_BINNING or IS_GET_SUPPORTED_BINNING Error code error in/out Related functions SetAOI SetSubSampling © 2010 Thorlabs...
  • Page 42 Mode parameter is ignored IS_IGNORE_PARAMETER (-1) Contains the offset used for compensation. Possible offset values range from 0 to 255. Contains the return value when an parameter Value IS_GET is passed error in/out Error code © 2010 Thorlabs...
  • Page 43 To achieve better color rendering with color sensors, color correction can be activated with SetColorCorrection Parameters: Handle on camera Camera Handle In/Out Mode Deactivates color correction IS_CCOR_DISABLE (0) Activates color correction IS_CCOR_ENABLE (1) Error code error in/out © 2010 Thorlabs...
  • Page 44 VGA card. Always ensure that the image buffer is large enough. Parameters: Handle on camera Camera Handle In/Out Mode 32-bit true-color mode; R-G-B dummy IS_SET_CM_RGB32 (0) 24-bit true-color mode; R-G-B IS_SET_CM_RGB24 (1) 8-bit monochrome images IS_SET_CM_Y8 (6) Error code error in/out © 2010 Thorlabs...
  • Page 45 Using this function increases the CPU load of the system. Parameters: Camera Handle In/Out Handle on camera Mode Deactivates the edge filter IS_EDGE_EN_DISABLE (0) Activates the strong edge filter IS_EDGE_EN_ STRONG(1) Activates the weaker edge filter IS_EDGE_EN_WEAK(2) Error code error in/out © 2010 Thorlabs...
  • Page 46 If the dialog box is closed with Cancel, the error report is also deactivated. Parameters: Handle on camera Camera Handle In/Out Mode Deactivate error reporting IS_DISABLE_ERR_REP (0) IS_ENABLE_ERR_REP (1) Activate error reporting error in/out Error code © 2010 Thorlabs...
  • Page 47 IS_SET_EXPOSURE_TIME (32900) New desired exposure time. Exposure Time = 0.0 is passed, an exposure time of 1/frame rate will be used. new exposure time Returns the actually set exposure time Error code error in/out Related functions GetExposureRange SetAutoParameter © 2010 Thorlabs...
  • Page 48 Read trigger mode setting back out IS_GET_EXTERNALTRIGGER (32768) Returns the current level at the trigger input IS_GET_TRIGGER_STATUS (32769) Returns the setting queried with Get Status Error code error in/out Related functions FreezeVideo © 2010 Thorlabs...
  • Page 49 Time by which the flash is delayed (in µs) Duration In Time in which the flash is activated (in µs) Delay In Returns the setting queried with Value IS_GET Error code error in/out Related functions SetFlashStrobe GetGlobalFlashDelays © 2010 Thorlabs...
  • Page 50 IS_SET_FLASH_HI_ACTIVE (2) Sets strobe output to HIGH IS_SET_FLASH_HIGH (3) Sets strobe output to LOW IS_SET_FLASH_LOW (4) Returns the current mode IS_GET_FLASHSTROBE_MODE (32768) Returns the setting queried with Get Mode Error code error in/out Related functions SetFlashDelay GetGlobalFlashDelays SetExternalTrigger © 2010 Thorlabs...
  • Page 51 FPS parameter when this function is used. Parameters: Handle on camera Camera Handle In/Out Desired number of frames per second Returns the actually set frame rate new FPS Error code error in/out Related functions SetExposureTime SetPixelClock GetFramesPerSecond GetFrameTimeRange SetAutoParameter © 2010 Thorlabs...
  • Page 52 1 and Gamma 1,000 (Gamma value x 100). Parameters: Camera Handle In/Out Handle on camera Gamma value multiplied by 100. Range: [1 Gamma to 1,000] Error code error in/out © 2010 Thorlabs...
  • Page 53 IS_GET_DEFAULT_MASTER (32772) Returns standard master gain Returns standard red gain IS_GET_ DEFAULT_RED (32773) IS_GET_ DEFAULT_GREEN (32774) Returns standard green gain Returns standard blue gain IS_GET_ DEFAULT_BLUE (32775) Sets gains IS_SET_GAIN (34816) Error code error in/out Related functions SetAutoParameter © 2010 Thorlabs...
  • Page 54 Activates the software correction based on the IS_BPC_ENABLE_SOFTWARE (2) hot pixel list stored in the EEPROM Returns the current mode IS_GET_BPC_MODE (32768) Contains the current mode when using Value IS_GET_BPC_MODE 0 = Disabled 1 = Enabled Error code error in/out © 2010 Thorlabs...
  • Page 55 Parameters: Handle on camera Camera Handle In/Out Image Memory In/Out Pointer to start of memory area ID for this memory Memory ID In/Out Error code error in/out Related functions AllocAndAddToSequence AllocAndSetImageMem SetAllocatedImageMem © 2010 Thorlabs...
  • Page 56 Returns the standard pixel clock IS_GET_DEFAULT_PCLK (32769) Sets the value given under pixel frequency IS_SET_PIXEL_CLOCK (32770) Pixel frequency in MHz Pixel Clock Pixel frequency in MHz if GetClock = Value TRUE Error code error in/out Related functions SetFrameRate GetPixelClockRange © 2010 Thorlabs...
  • Page 57 IS_SET_ROP_MIRROR_LEFTRIGHT (64) function may be a hardware or a software function depending on the camera. Returns the current settings IS_GET_ROP_EFFECT (32768) Activates/deactivates Rop effect On / Off Value Returns the setting queried with Get Error code error in/out © 2010 Thorlabs...
  • Page 58 Activates vertical and horizontal four-pixel IS_SUBSAMPLING_4X_V_4X_H (12) subsampling Returns the current setting IS_GET_SUBSAMPLING (32768) Returns the supported subsampling modes IS_GET_SUPPORTED_SUBSAMPLING (32769) Returns the setting queried with Get Value Error code error in/out Related functions SetBinning SetAOI © 2010 Thorlabs...
  • Page 59 (IS_DONT_WAIT) IS_FORCE_VIDEO_STOP Parameters: Handle on camera Camera Handle In/Out Wait Function returns immediately IS_DONT_WAIT (0) Function returns immediately IS_WAIT(1) Immediately stop digitizing IS_FORCE_VIDEO_STOP (16384) error in/out Error code Related functions FreezeVideo HasVideoStarted © 2010 Thorlabs...
  • Page 60 UnlockSeqBuf again. Parameters: Handle on camera Camera Handle In/Out Number of the image buffer to be released Memory Number In Start address of the image buffer Image Memory In Error code error in/out Related functions LockSeqBuf © 2010 Thorlabs...
  • Page 61 All manuals and user guides at all-guidesbox.com uc480 VIs © 2010 Thorlabs...
  • Page 62 All manuals and user guides at all-guidesbox.com...
  • Page 63 All manuals and user guides at all-guidesbox.com Appendix DCx camera Part...
  • Page 64 Various camera settings can be made. Trigger_8bit Trigger_8bit captures an image from the camera in 8-bit mode and displays this image. In addition, the camera’s trigger mode can be activated and various camera settings can be made. © 2010 Thorlabs...
  • Page 65 IS_SEQUENCE_BUF_ALREADY_LOCKED Unable to lock memory. The pointer to the buffer is invalid. The Device ID is invalid. Possible IDs range IS_INVALID_DEVICE_ID from 0 to 255. The Board ID is invalid. Possible IDs range from IS_INVALID_BOARD_ID © 2010 Thorlabs...
  • Page 66 This setting is not possible with the currently IS_INVALID_EXPOSURE_TIME set exposure time. This setting cannot be changed as long as IS_AUTO_EXPOSURE_RUNNING automatic exposure time control is active. BackBuffer Surface cannot be created. IS_CANNOT_CREATE_BB_SURF BackBuffer Mixer Surface cannot be created. IS_CANNOT_CREATE_BB_MIX © 2010 Thorlabs...
  • Page 67 BackBuffer surface invalid. IS_INVALID_SURFACE IS_SURFACE_LOST BackBuffer surface lost. Error when releasing the Overlay Device IS_RELEASE_BB_OVL_DC Context. BackBuffer Timer could not be created. IS_BB_TIMER_NOT_CREATED BackBuffer Overlay was not activated. IS_BB_OVL_NOT_EN Only possible in BackBuffer mode. IS_ONLY_IN_BB_MODE Invalid color format. IS_INVALID_COLOR_FORMAT © 2010 Thorlabs...
  • Page 68 User Manual, please contact your local Thorlabs dealer or system installer. All rights reserved. This manual may not be reproduced, transmitted or translated to another language, either as a whole or in parts, without the prior written permission of Thorlabs GmbH. Status: 2010 ©...
  • Page 69 Phone: +1 973 579 7227 Fax: +1 973 300 3600 Email: sales@thorlabs.com Internet: http://www.thorlabs.com Japan: Thorlabs Japan, Inc. Higashi Ikebukuro Q Building 1st floor 2-23-2 Toshima-ku, Tokyo 170-0013 Japan Phone: +81 3 5979 8889 Fax: +81 3 5979 7285 Email: sales@thorlabs.jp...
  • Page 70 All manuals and user guides at all-guidesbox.com...
