Getting started
Getting started...
DCU22x Series and DCC1x45 Series

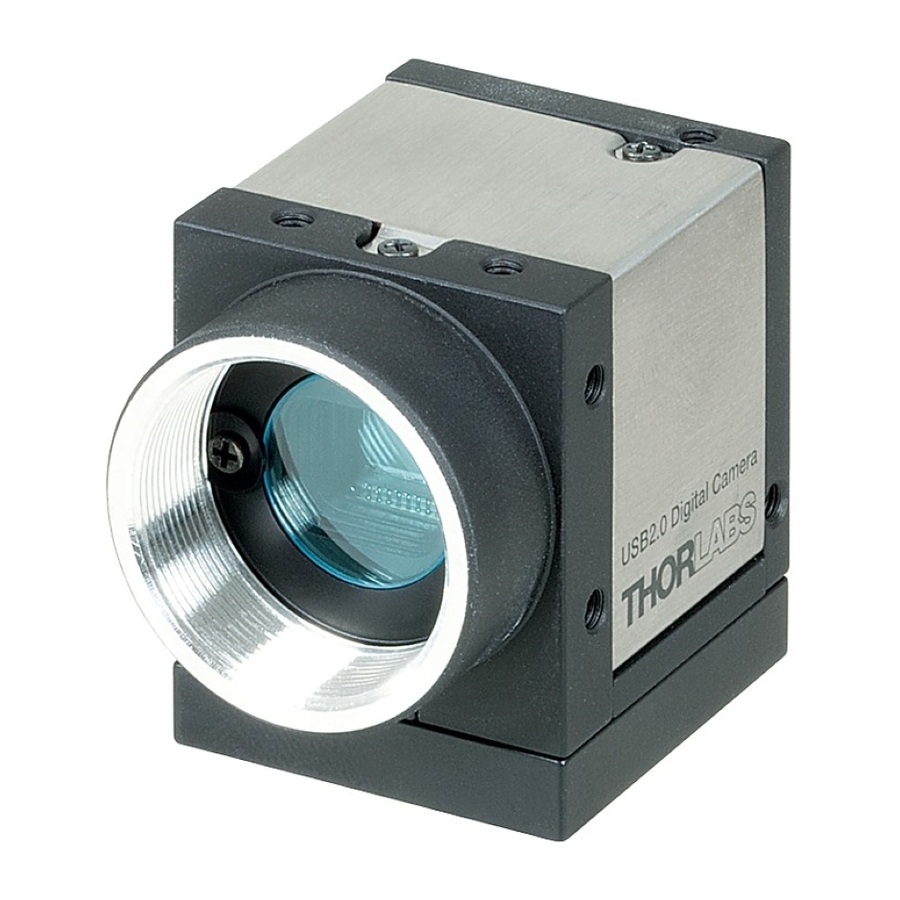

USB 2.0 Camera
Thank you for buying a DCx Series camera. On this "Getting started" flyer you can see
how easy it is to install a DCx Series camera. The CD should start automatically. If not,
please start the "Autorun.exe" file on the CD. After the installation start "camera info" or
the "camera viewer" in the samples folder to check the connection.
Find detailed information about the camera and the SDK on the CD
For troubleshooting please contact our Support Team at:
DCx Camera System requirements:
CPU speed
min. 600 MHz
Memory (RAM)
min. 256 MB
USB host controller
USB 2.0 high speed (480 Mbps); full powered (500mA)
Graphics card
min. onboard graphics chip
Operating system
Windows 2000 (Service Pack 4)
Windows XP 32 bit (Service Pack 2)
Windows Vista 32 bit
...with your new DCx Series Camera
Getting started:
1) Install Software first
Setup will start automatically or run autorun.exe on the CD
2) Attach camera
Driver will install automatically
