1.3.4

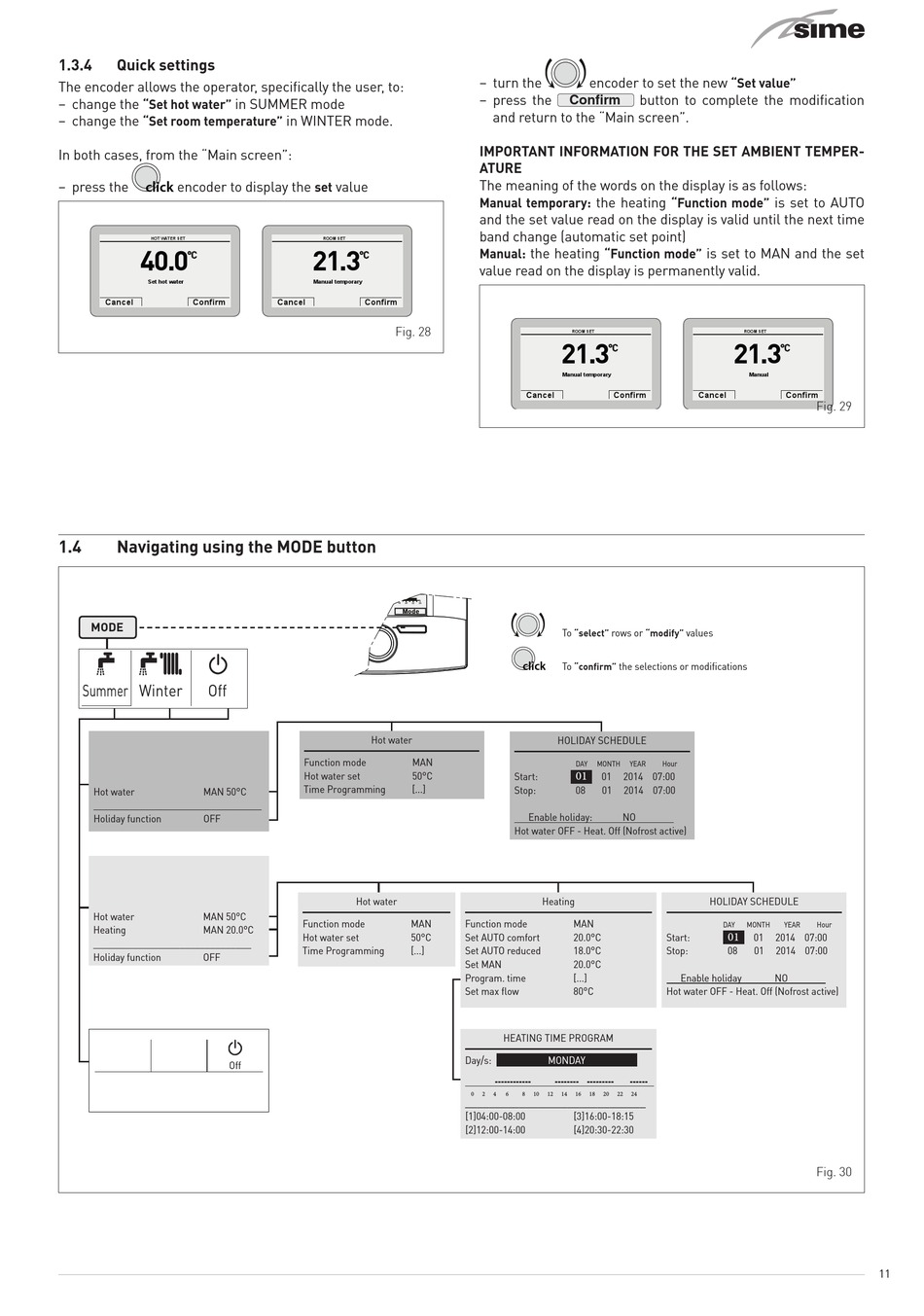

Quick settings

The encoder allows the operator, specifically the user, to:
– change the "Set hot water" in SUMMER mode
– change the "Set room temperature" in WINTER mode.
In both cases, from the "Main screen":
– press the encoder to display the set value
click
HOT WATER SET
40.0
Set hot water
Cancel Confirm
1.4

Navigating using the MODE button

MODE
Summer Winter Off
Hot water MAN 50°C
_________________________________
Holiday function OFF
Hot water MAN 50°C
Heating MAN 20.0°C
_______________________________
Holiday function OFF
Off
ROOM SET
21.3
Manual temporary
Cancel Confirm
Fig. 28
Modo: Inverno Progr. automatico - Set 18,0 Cfino alle 11:30
Menu Mode
Hot water
Function mode MAN
Hot water set 50°C
Time Programming [...]
Hot water
Function mode MAN
Hot water set 50°C
Time Programming [...]
– turn the encoder to set the new "Set value"
– press the
Confirm
and return to the "Main screen".
IMPORTANT INFORMATION FOR THE SET AMBIENT TEMPER-
ATURE
The meaning of the words on the display is as follows:
the heating "Function mode" is set to AUTO
Manual temporary:
and the set value read on the display is valid until the next time
band change (automatic set point)
the heating "Function mode" is set to MAN and the set
Manual:
value read on the display is permanently valid.
ROOM SET
21.3
Manual temporary
Cancel Confirm
To "select" rows or "modify" values
To "confirm" the selections or modifications
click
HOLIDAY SCHEDULE
DAY MONTH YEAR
01
Start: 01 2014 07:00
Stop: 08 01 2014 07:00
Enable holiday: NO
Hot water OFF - Heat. Off (Nofrost active)
Heating
Function mode MAN
Set AUTO comfort 20.0°C
Set AUTO reduced 18.0°C
Set MAN 20.0°C
Program. time [...]
Set max flow 80°C
HEATING TIME PROGRAM
MONDAY
Day/s:
¬¬¬¬¬¬¬¬¬¬¬¬ ¬¬¬¬¬¬¬¬ ¬¬¬¬¬¬¬¬¬ ¬¬¬¬¬¬
0 2 4 6 8 10 12 14 16 18 20 22 24
______________________________
[1]04:00-08:00 [3]16:00-18:15
[2]12:00-14:00 [4]20:30-22:30
button to complete the modification
ROOM SET
21.3
Manual
Cancel Confirm
Hour
HOLIDAY SCHEDULE
DAY MONTH YEAR
01
Start: 01 2014 07:00
Stop: 08 01 2014 07:00
Enable holiday NO
Hot water OFF - Heat. Off (Nofrost active)
Fig. 29
Hour
Fig. 30
