Measurement board (optional)
The Measurement board connects between the Emulation Adapter and the Conversion board.
Embedded targets often do not have access to all the MCU pins / connected signals to connect with
measurement equipment (oscilloscope, logic analyzer), its use provides easy access to all MCU
pins. It is delivered together with an Layout board (chip signals are clearly marked), which is placed
over the Measurement board.
Measurement board (optional)
Ordering code:
IAMTC377TE
The Measurement board is not available for every Emulation Adapter or every MCU pin
count.
See below table for available pin count layout boards:
Target board
TC332 (0.4 pitch)
TC323, TC333 (0.4 pitch)
TC324, TC334 (0.4 pitch)
TC364 (0.4 pitch)
TC364 (0.5 pitch)
TC365 (0.5 pitch)
TC375 (0.5 pitch)

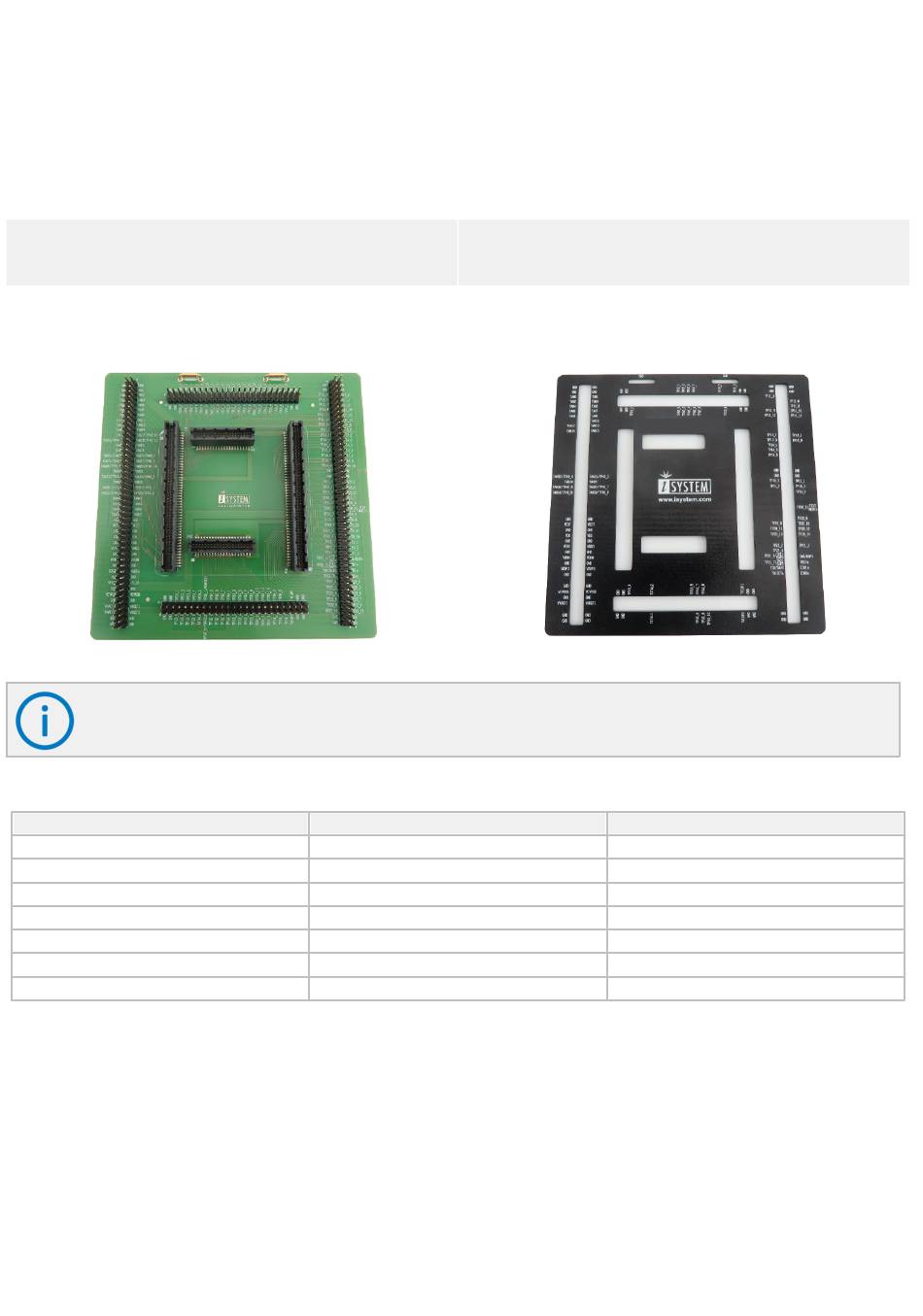

Layout board example for the Measurement
Pin number
80
100
144
144
144
176
176
board
Pin count layout board
TC331 TQFP-80
TC333 TQFP-100
TC334 TQFP-144
TC364 TQFP-144
TC364 LQFP-144
TC365 LQFP-176
TC375 LQFP-176
