QFP Flex

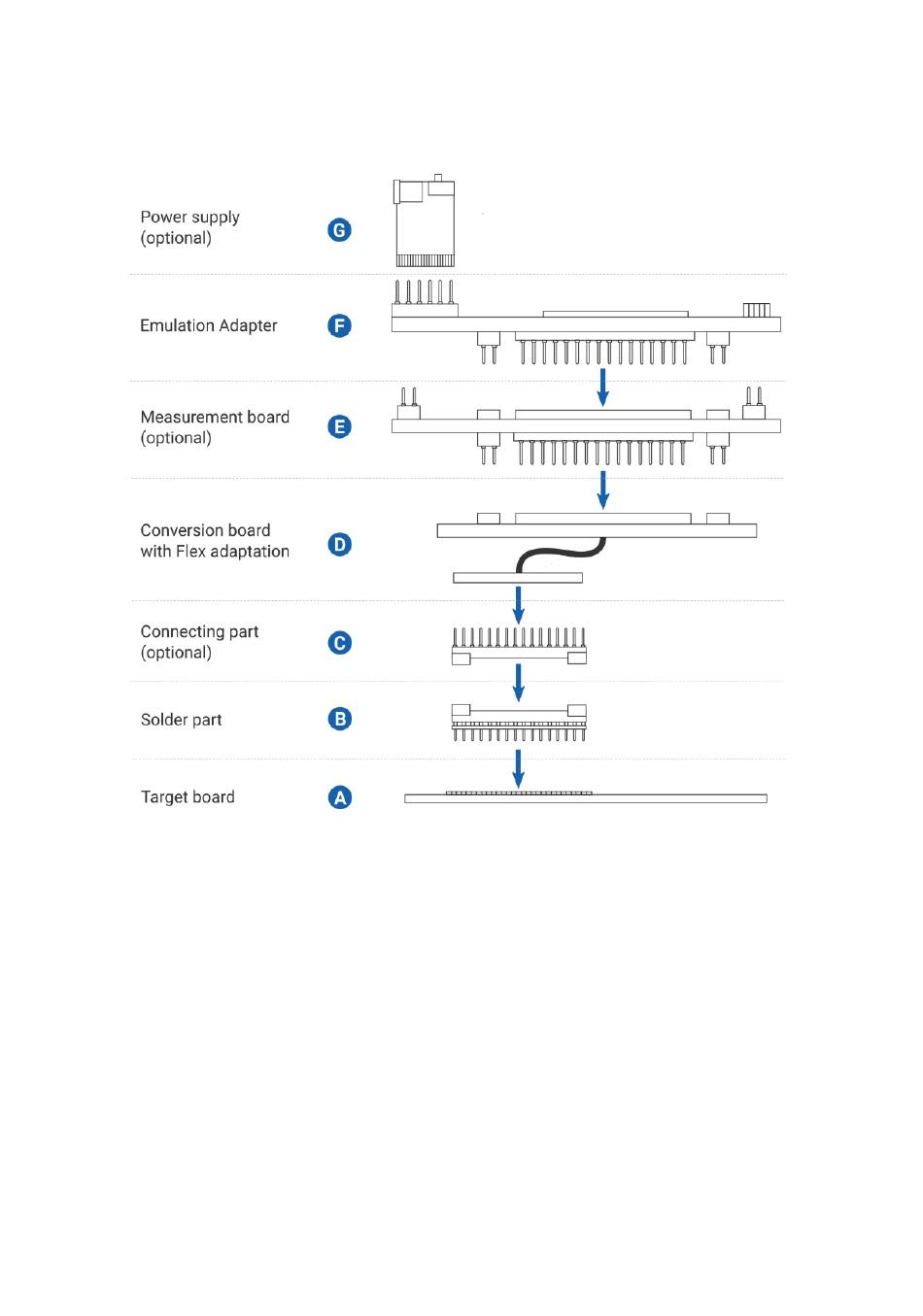

1. Solder the Solder part B on the target A. In the case of 0.4 mm pitch variant, assemble the
Connecting part C on the Solder part.
2. Assemble in order: Emulation Adapter F, optional Measurement board E, Conversion board D.
3. Connect Conversion board's Flex adaptation D to the Solder part.
