Summary of Contents for SHOWTEC Power Spot 6 Q5

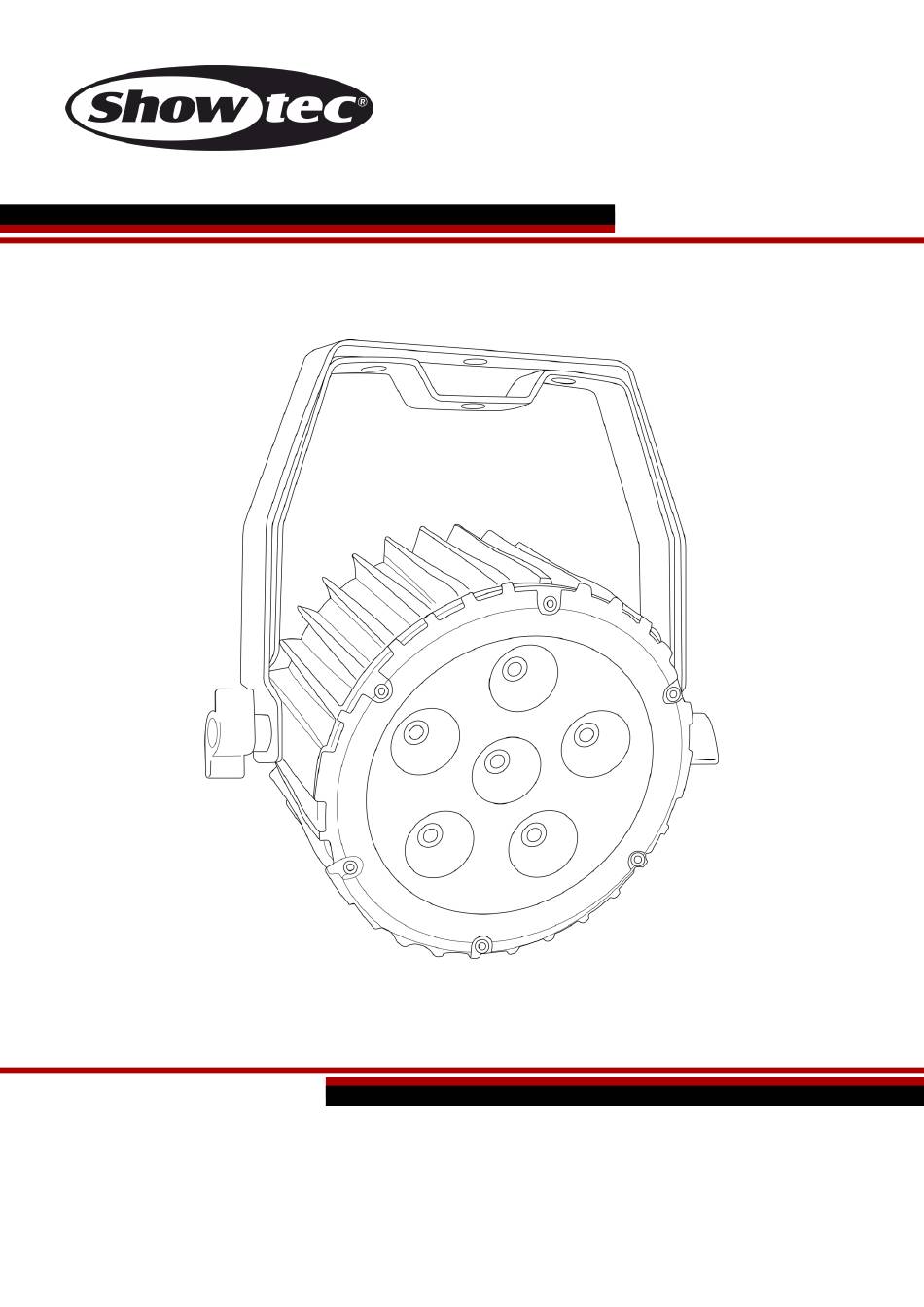

- Page 1 MANUAL ENGLISH Power Spot 6 Q5 Ordercode: 42574 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Power Spot 6 Q5 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 LED Expected Lifespan ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device .............................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Power Spot 6 Q5 IEC power cable – 1,5 m ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Power Spot 6 Q5 • The user is responsible for correct positioning and operating of the Power Spot. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Power Spot 6 Q5 The Power Spot can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Power Spot 6 Q5 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

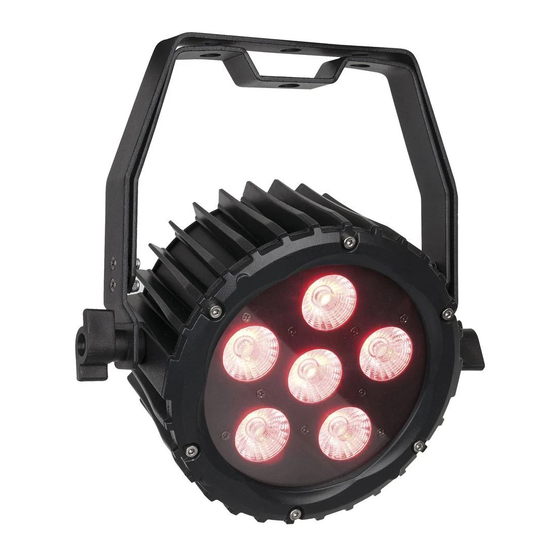

Power Spot 6 Q5 Description of the device Features The Power Spot 6 Q5 is an ultra-compact light effect with high output and great effects. Ideal solution for small clubs and mobile DJs Compact size Sound Control Input voltage: 100-240V, 60/50Hz ... -
Page 9: Backside
09) 3-pin DMX signal connector Installation Remove all packing materials from the Power Spot 6 Q5. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Set Up And Operation
Power Spot 6 Q5 Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. -
Page 11: Multiple Power Spots (Dmx Control)
Power Spot 6 Q5 Multiple Power Spots (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Power Spots and other devices. -
Page 12: Fixture Linking
Power Spot 6 Q5 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Power Spot 6 Q5 The Power Spot 6 Q5 can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MODE button C) SETUP button D) UP button DOWN button Fig. -
Page 14: Menu Overview
Power Spot 6 Q5 Menu Overview Ordercode: 42574... -
Page 15: Main Menu Options
Power Spot 6 Q5 Main Menu Options Built-in programs Auto Mode DMX-512 Mode Master/Slave Mode Sound-controlled Mode Manual Mode (Static Color Mode) 1. Built-in programs 01) Press the MODE button until the display shows one of the 11 built-in programs: 02) Press the UP/DOWN buttons to toggle between the programs. -
Page 16: Dmx-512 Mode
Power Spot 6 Q5 3. DMX-512 Mode 01) Press the MODE button until the display shows 02) Press the UP/DOWN buttons to choose the desired DMX address. There are 512 DMX addresses available. 03) Press the SETUP button to open the submenu. -
Page 17: Dmx Channels
Power Spot 6 Q5 DMX Channels 5 channels Channel 1 – Red 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue 0-255 Gradual adjustment Blue, from 0-100% Channel 4 – White... - Page 18 Power Spot 6 Q5 Channel 4 – Blue Dimmer must be open 0-255 Gradual adjustment Blue, from 0-100% Channel 5 – White Dimmer must be open 0-255 Gradual adjustment White, from 0-100% Channel 6 – Amber Dimmer must be open...
-
Page 19: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Power Spot 6 Q5 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 20: No Response To Dmx
Power Spot 6 Q5 No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 21: Product Specifications
Power Spot 6 Q5 Product Specifications Model: Showtec Power Spot 6 Q5 Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 45W (full output) DMX linking: 30pcs Fuse: T1AL/250V Dimensions: 245 x 105 x 255 mm (LxWxH) Weight: 2,5 kg Operating and Programming:... -
Page 22: Dimensions
Power Spot 6 Q5 Dimensions Ordercode: 42574... -
Page 23: Notes
Power Spot 6 Q5 Notes Ordercode: 42574... - Page 24 ©2015 Showtec...
