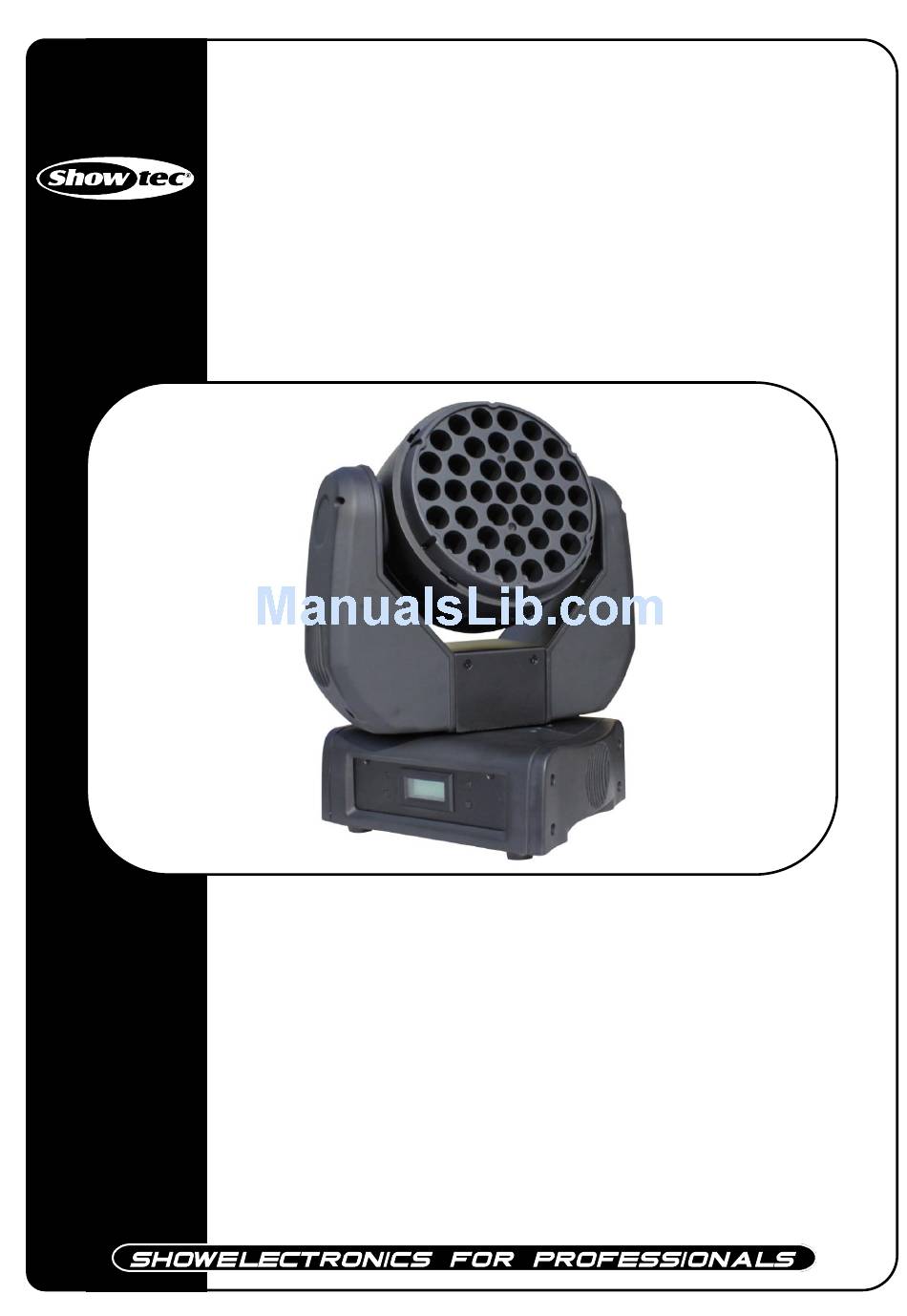

- Page 1 Expression 5000 ORDERCODE 41364 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Expression 5000 Product Guide ™ Warning.................…...……………..…………………………….………………………………..…… Safety-instructions…………………………………………………………………………………………………………………………….…… Operating Determinations.…………………………………………………………………………………………………...…………………. Rigging.………………………………………………………………………………………………………………………………...……………. Return Procedure………….………………………………………………………………………………………………………...……………. Claims……………………………………………………………………………..................... Description................…...……………………………………………………………….…….……….. Features and Overview ………………………………...….……………….…………………………………….……….……….…………… Backside…………………………………………………...…...….……………….……………………………………………...………………. Installation................…...……………………………………………………………………….………. Set Up and Operation..............……..……………………………………………………………….……… Fixture Linking…………………....……..……………………………………..…………………..……………………………………..….. Data Cabling………………..……..……………………………………………..…………………………………………………….……. Control Modes……………………………………………………………………………………………………………………………….……. One Expression 5000 (Built-in Programs)…..………………………………….……………….……………………………....Multiple Expression 5000s (Master/Slave control).………………………………………………..........…. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Expression 5000 • 2 brackets and safety cable • Volex IEC powercable 1,4m •... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
When rigging, derigging or servicing the projector, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Expression 5000 can be placed on a flat stage floor or mounted to any kind of truss by a clamp. - Page 7 Mounting a clamp to the underside of the Expression moving head Clamp Eye for safety-cable Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable...
-
Page 8: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 9: Description Of The Device

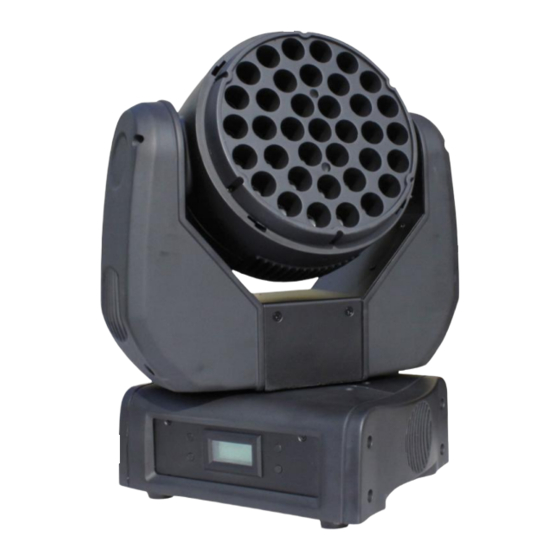

Description of the device Features The Showtec Expression 5000 is a moving-head with high output and great effects. • Low power consumption • Less heat • Auto Correction system for pan and tilt movement • 37 LED's total: 13x Red LED 2W, 12x Green LED 3W, 12x Blue LED 3W •... -
Page 10: Backside
Backside Fig. 2 DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin 5) IEC power connector + Fuse T3,15A 250V ON/OFF Earth Installation Remove all packing materials from the Expression 5000. Check that all foam and plastic padding is removed. -
Page 11: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Modes
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. When the Expression 5000 is not connected by a DMX-cable, it functions as a stand-alone device. Please see page 17 for more information about the built-in programs. -
Page 13: Multiple Expression 5000S (Dmx Control)
Multiple Expressions (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). 3. Use a 3-p XLR cable to connect the Expressions and other devices. 4. -
Page 14: Control Panel
The Expression 5000 can be operated with a controller in control mode or without the controller in stand- alone mode. Control Panel Fig. 6 A. LCD Display D. Down Button B. MENU button E. Up Button C. ENTER Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 15: Menu Overview
Menu Overview Once you have entered a step, you will see menu 5.2-5.12. -
Page 17: Main Menu Options
MAIN MENU Press the MODE button to scroll through 8 options of the menu: To see menu 7 and 8 You have to enter password UP DOWN UP DOWN in menu EXTRA When you use the menu button, the 2 hidden menus will now appear. 1. -
Page 18: Dmx Addressing
Controlled. Built-in Programs Mode With this menu you can select 3 different Programs when using the Expression 5000. 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Operation menu. -
Page 19: Custom Mode
Custom Mode For a custom program to run, you have to enter some values first. For more information, please see Edit menu. Slave Mode With this menu you are able to set the device as a slave device. 1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Run menu. -
Page 20: Info Version
1) Press Menu, until the display shows: Intro 2) Press Enter and use the Up/Down buttons to go to the Info menu. 3) Press enter to see your expression 5000 version number. 2. Invert 1) Press Menu, until the display shows: Invert 2) Press Enter and use the Up/Down buttons to scroll through the options: Pan, Tilt, Dimmer, Use. -
Page 21: Edit
• The Access Password: UP + DOWN + UP + DOWN . When you have pressed ENTER in menu KEYLOCK ON, it will take 30 seconds before the Expression 5000 is locked. When the password is activated, the display will ask for password each time the fixture is powered on. -
Page 22: Calib
7. Calib... -
Page 23: Default
7. Calib 1) Press Menu, until the display shows: Calib 2) Press Enter and use the Up/Down buttons to choose the different color temperatures. 3) There are 11 pre-programmed White colors and RGB TO WHITE. They can be edited by mixing Red, Green and Blue. -
Page 24: Dmx Channels
DMX Protocol 12 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish. –... - Page 25 Channel 11 – Shutter / Strobe (Dimmer must be open Open 10-255 Strobe effect, from slow to fast (0-10 flashes/sec.) Channel 12 – Control 0-19 No Function 20-39 Blackout during Pan/Tilt movement 40-59 Disabled blackout during Pan/Tilt movement 60-79 Fan Auto 80-99 Fan Slow 100-119...
-
Page 26: Channels (Basic)
DMX Protocol 9 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540°and stopped at any position you wish. Channel 2 –... -
Page 27: Channel Settings
Channel 9 – Control 0-19 No Function 20-39 Blackout during Pan/Tilt movement 40-59 Disabled blackout during Pan/Tilt movement 60-79 Fan Auto 80-99 Fan Slow 100-119 Fan Normal 120-139 Fan Fast 140-149 Auto 1 activated after 5 seconds 150-159 Auto 2 activated after 5 seconds 160-169 Test activated after 5 seconds 170-179... -
Page 28: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Expression 5000 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. - Page 29 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 30: Product Specification
Product Specification Model: Showtec Expression 5000 Voltage: 240V-50Hz (CE) Power Consumption: 140W max at full output Fuse: 3,15A / 250V Dimensions: 296x190x344mm (LxWxH) Weight: 6,5 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
