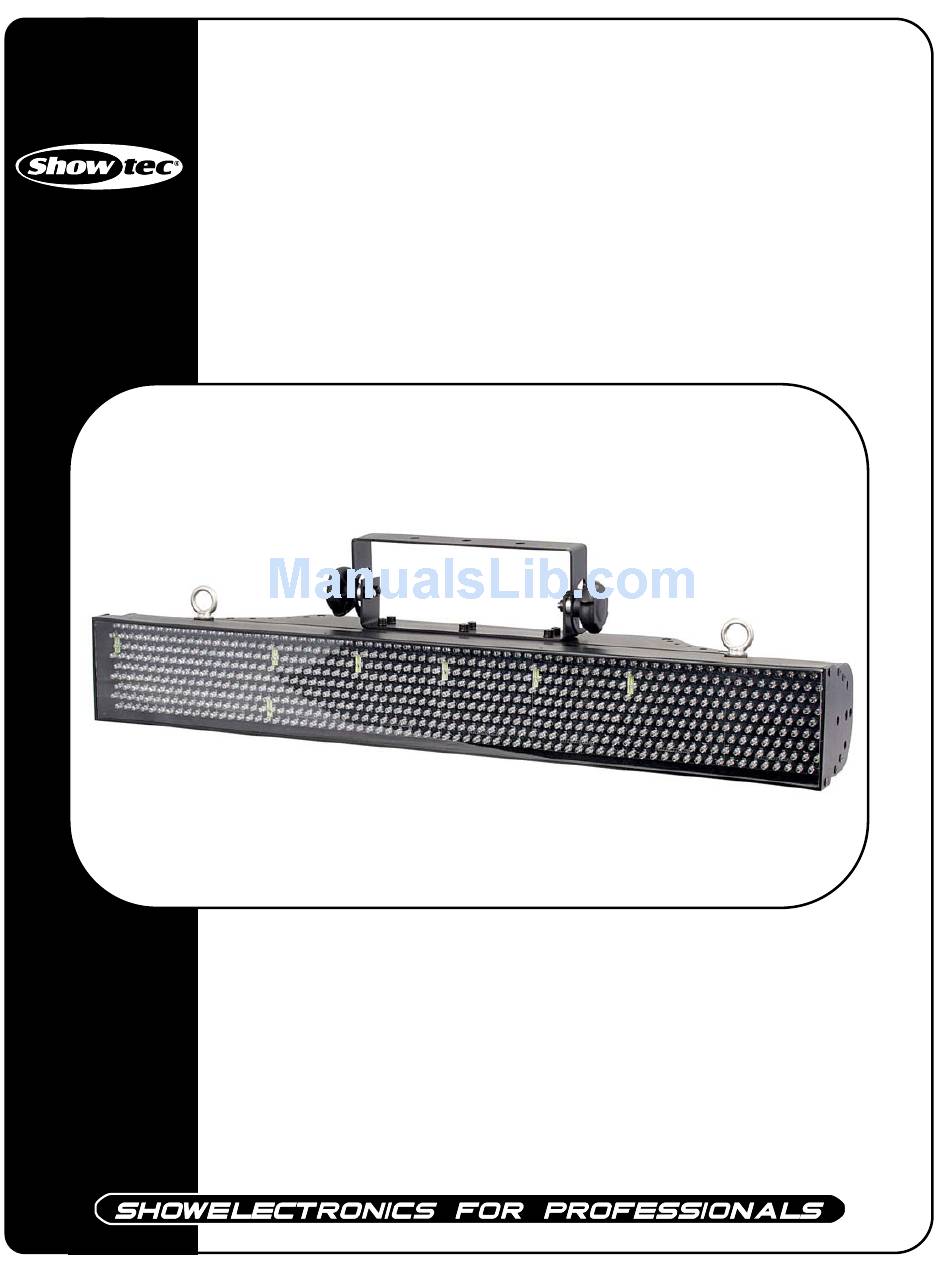

- Page 1 LED Pixel Track ORDERCODE 42200...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Pixel Track Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features…….……………………………………………………………………………………….……...…. Overview……………………………………………………………………………………………………….. Backside……………………………………………………………………………………………………….. Installation................…...…………………………………….…… Set Up and Operation..............……..…………………………….…… Panel Functions……..……………………………………………………………………………….……...… - Mode…..........…………......……………………..………….. - F / S…................…..…………..………………….. Stand-Alone…………………………..…………………………………………………………….…….……. Sound-Active……..…………………..…………………………………………………………….……...….. Operation…………..…………..…………………………………………………………….……...….. - DMX Modes..….......…………......……………………..……………. Maintenance...................………..………….…….……………… Changing the Fuse................…………………….………….………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The LED Pixel Track can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Improper installation can cause serious damage to people and property ! -
Page 6: Description

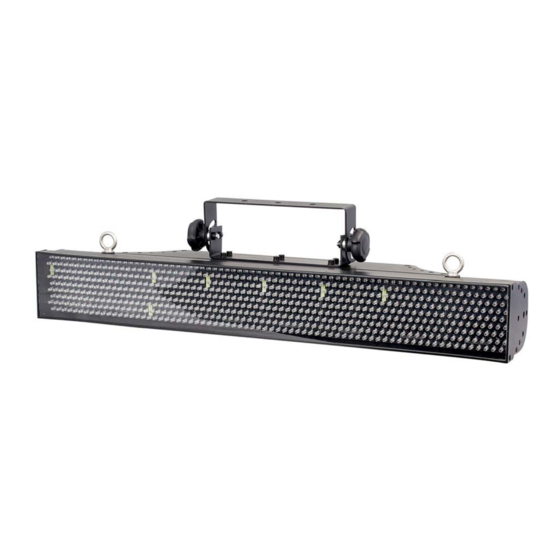

• 3 Modes: Stand-alone, DMX-controlled or Sound-controlled NOTE: Knowledge of DMX is required to fully utilize this unit. Overview Fig. 1 1) Safety Eye for Truss mounting 2) Total LED Pixel Track 648 LEDS 3) Mountingbracket for Truss mounting 4) Adjustment Screw Backside Fig. 2... -
Page 7: Installation
Installation Remove all packing materials from the LED Pixel Track. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Mode
Stand-alone Operation Refer to the four buttons on the front panel of the LED Pixel Track: Mode F / S Down Press the MODE button to view the Chase menu: Select Chases 1-9 using the UP and DOWN buttons. Chases 1-8 run according to the Fade and Speed values. -
Page 9: Dmx Operation
When programming your own DMX sequences, note that Channel 6 must be off (0) to avoid activating Sound-active mode during playback. The LED Pixel Track system can operate as a 48-, 24-, 12- or 6- channel DMX fixture. Select DMX Mode 1, 2, 3 or 4 as described on the next page. -
Page 10: Dmx Modes
DMX Mode 1 : 48-channel operation (Control each LED Pixel Track LED cluster separately) DMX Mode 2 : 24-channel operation (Control 4 sets of 2 LED Pixel Track LED clusters) DMX Mode 4 : 12-channel operation (Control 2 sets of 4 LED Pixel Track LED... -
Page 11: Maintenance
2. Check the fuse, power from the wall, all cables etc. 3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Pixel Track, as this may damage the unit and the warranty will become void. -
Page 12: Product Specifications
Product Specification Model: Showtec LED Pixel Track Voltage : AC 230V-50Hz (CE) Power: 115W Fuse: 250V / T1,5A Audio trigger: Built-in Mic DMX Input : 3-pin XLR Male connector DMX Output : 3-pin XLR Female connector Dimensions : 811 x 173 x 160 mm (LxWxH) Weight : 8,2 kg Design and product specifications are subject to change without prior notice. - Page 13 2005 Showtec.
