Summary of Contents for SHOWTEC Spectral CYC2000

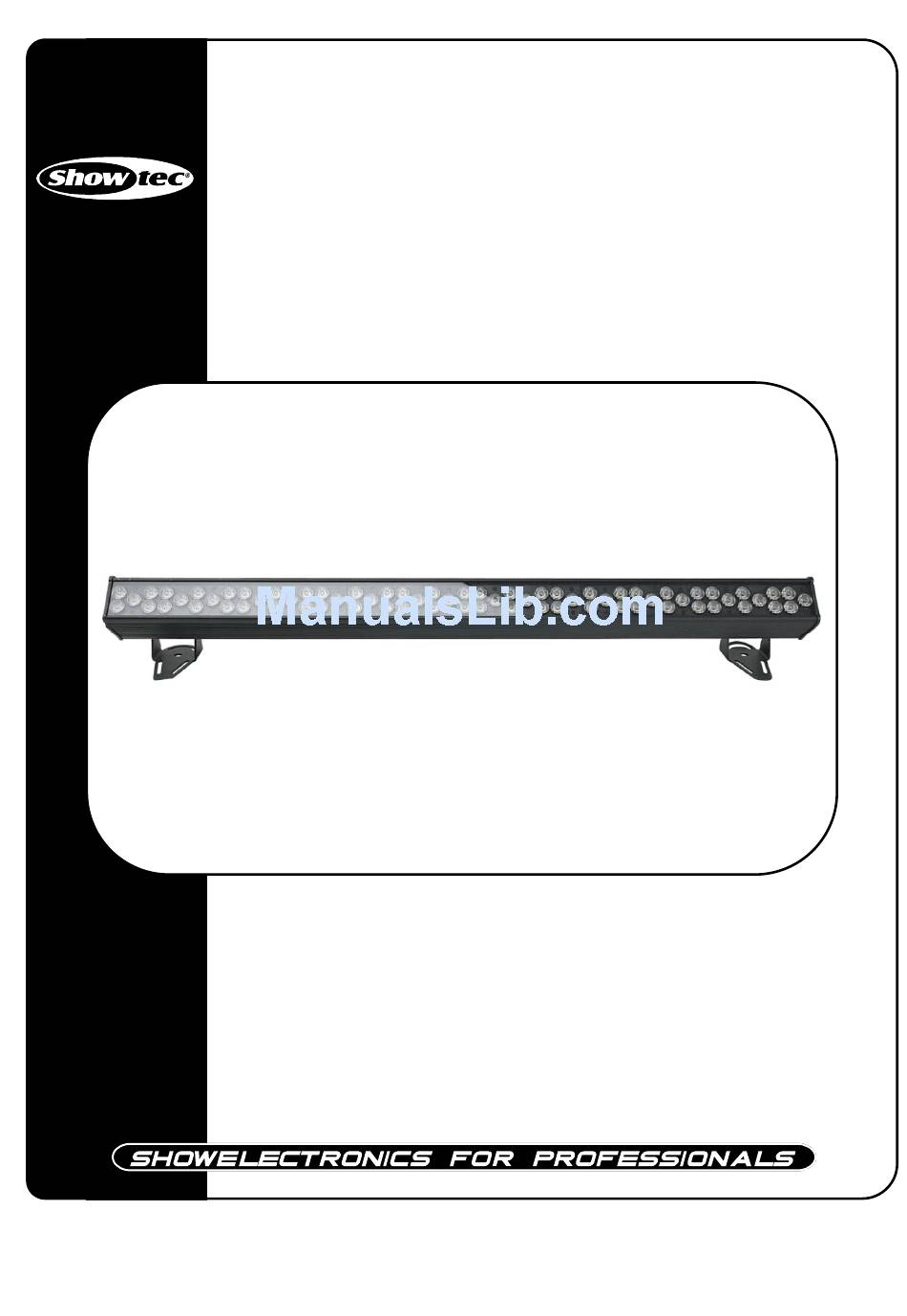

  • Page 1 Spectral CYC2000 ORDERCODE 43506...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!

  • Page 3: Table Of Contents

    Showtec Showtec Spectral CYC2000 Product Guide ™ Warning.................…...……………..…………………………….………..… Safety-instructions……………………………………………………………………………………………………….. Operating Determinations.……………………………………………………………………………………………. Rigging.………………………………………………………………………………………………………………….… Return Procedure……………………………………………………………………..........Claims……………………………………………………………………..............Description................…...……………………………………….………..…. Features…….……………………………………………………………………………………….……...…………….. DMX Channel Summary……………………………………………………………………………………………….. Overview………………………………………………………………………………………………………………….. Backside…………………………………………………………………………………………………………………... Installation................…...…………………………………….…………….… Set Up and Operation..............……..…………………………….……………… Fixture Linking…………………....……..……………………………………………..…………………………… Data Cabling…………………....……..……………………………………………..…………………………… Control Panel...……..…………..……..………………..……..……………………………………………... DMX Addressing without ID addressing.……………………....……..………………………………………. Addressing with Address………..………………………………………..……………………………...

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Spectral CYC2000 • 1X safety cable • User manual LED Expected Lifespan LEDs gradually decline in brightness over time.
  • Page 5  If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 6: Operating Determinations

    The Spectral CYC2000 can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Improper installation can cause serious damage to people and property !

  • Page 7: Return Procedure

    Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN...

  • Page 8: Description

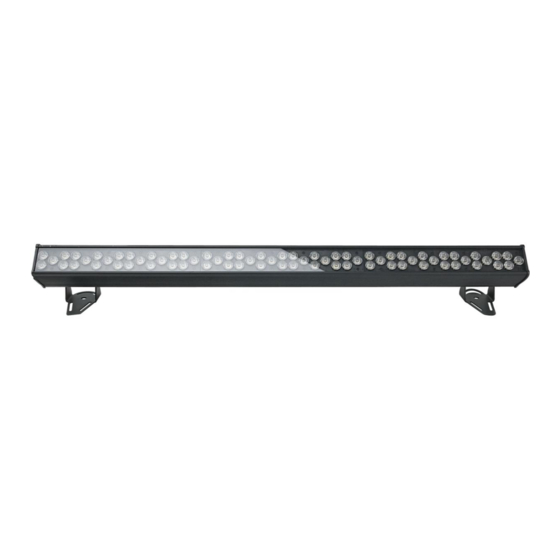

    Description of the device Features The Spectral CYC2000 indoor/outdoor colour wash is a LED Bar from Showtec • Touring proof • 3 and 5 Pole XLR • Neutrik Powercon Input and Output • RGBWA • 25 x 6° lenses, ideal for Wallwash •...

  • Page 9: Dmx Channel Summary

    DMX Channel Summary TOUR Channel Description Master Dimmer Green Blue White Amber Color Macro Strobe Auto & Custom Programs Auto Speed Adjustment Dimmer Speed ID Address Selection Block Sections BLOCK1 Channel Description Block 1 Red Block 1 Green Block 1 Blue Block 2 Red Block 2 Green Block 2 Blue...

  • Page 10: Overview

    ARC2 Channel Description Green Blue White Amber ARC2+D Channel Description Master Dimmer Green Blue White Amber ARC2+S Channel Description Master Dimmer Green Blue White Amber Strobe Channel Description Saturation Value Overview Fig. 1 1) 72 LEDs (18x Red, 18x Green, 18x Blue, 9 White, 9x Amber) 2) Mountingbracket for Truss mounting Backside Fig.

  • Page 11: Installation

    The Spectral CYC2000 uses a maximum of 15 channels. Important: Fixtures on a serial data link must be daisy chained in one single line. To comply with the EIA-485 standard no more than 30 devices should be connected on one data link.

  • Page 12: Control Panel

    DMX512 ADDRESSING WITHOUT ID ADDRESSING 1) Connect a DMX controller (example 50720 Showdesigner 1024) to the series of Spectral CYC2000„s. 2) Each Spectral CYC2000 has 15 DMX channels (DMX address LED Par #1=1, Par #2=16, Par #3=31, Par #4=46, etc.).

  • Page 13: Dmx Addressing With Id Address

    The figure above shows a simple DMX layout. All 3 Spectral CYC2000„s have different ID addresses, which allows the user to collectively control a group of 3 Spectral CYC2000„s with the same DMX address by setting CH15 to 0, or to control each Spectral CYC2000 independently by first selecting the DMX address...

  • Page 14: Menu Overview

    MENU OVERVIEW...

  • Page 15: Creating A Static Color

    Main Menu Options Press the MODE button to scroll through 11 options of the menu: Creating a static color When you press ENTER in menu Static color, you have to use DOWN to scroll through this menu. Use the UP/DOWN buttons to change the static colors (Red, Green, Blue, White, Amber) or the strobe speed (0-20Hz).

  • Page 16: Activating An Auto Program

    Activating an Auto Program When you press ENTER in menu AUTO, you can choose one of the 10 built-in programs. Press ENTER after selecting the desired auto program, You can select the auto speed of the 10 built-in programs from 000-255. You can also edit 10 custom programs.

  • Page 17: Run Mode

    Run Mode • Enter the RUN MODE mode to set the desired working mode: DMX mode is used when working with a DMX512 controller to control the Spectral. SLAVE mode is for using the device during a Master-Slave operation. When the fixtures are in Auto program operation, the RUN MODE does not work. Personality Enter the PERSONALITY mode to select a DMX mode: TOUR, BLOCK1, BLOCK2, ARC1, AR1+D, ARC2, AR2+D, AR2+S, HSV.

  • Page 18: Changing The Settings

    The RGB’ s parameter can be adjusted in CAL2 . When UC is selected, the RGB output is adjusted to a standard preset universal color. This way, different versions of Spectral CYC2000‟s are color balanced to match each other. FACTORY DEFAULT SETTINGS...

  • Page 19: Edit Custom

    Edit Custom • Enter the EDIT CUSTOM mode to edit the custom programs CUSTOM01 – CUSTOM10. • Each custom program has 30 steps, which can be edited. • Each step allows the creation of a scene using RED, GREEN, BLUE, WHITE, AMBER, STROBE, TIMER & FADE. White Settings •...

  • Page 20: Fans

    Fans With this menu you able to control the fan speed of the device. 1) Press Menu, until the display shows: FANS 2) Press enter to open this menu. Scroll through the menu to set the desired fan speed. Activate Password •...

  • Page 21: How To Make Your Own Custom Program

    How to make your own Custom Program Use Up/Down to change the values Use Up/Down to change the values Use Up/Down to change the values Use Up/Down to change the values Use Up/Down to change the values Use Up/Down to change the values Use Up/Down to change the values Use Up/Down to change the values Use Up/Down to change the values...

  • Page 22: Modes

    DMX Control TOUR Channel Value Function Dimmer 000 – 255 0 – 100 % 000 – 255 0 – 100 %; CH2 will control the STEP TIME, if CH9 is set to custom 01-10 (only if CH9 161-255) Green 000 – 255 0 –...
  • Page 23 000 – 255 Auto Speed. CH10 will control the AutoSpeed, if CH9 is set to AUTO 1-AUTO 10 (only if CH9 061-160) Dimmer Speed. 000 – 009 Preset Dimmer Speed from Display Menu 010 – 029 Linear Dimmer 030 – 069 Non Linear Dimmer (fastest) 1 070 –...
  • Page 24 AUTO • Channel 9 selects the preset AUTO and CUSTOM programs (1-10). • Channel 9 has priority over channels 2, 3, 4, 5, 6, 7 and 8. • When activating the custom AUTO programs 1-10, it is possible to control the Step Time (CH2) and Fade Time (CH3).

  • Page 25: 15-Channel (Block2)

    DMX Control BLOCK2 Channel Value Function Block 1 Red 000 – 255 0 – 100 % Block 1 Green 000 – 255 0 – 100 % Block 1 Blue 000 – 255 0 – 100 % Block 1 White 000 – 255 0 –...

  • Page 26: 3-Channel (Hsv): Hue, Saturation, Value

    DMX Control ARC2 Channel Value Function 000 – 255 0 – 100 % Green 000 – 255 0 – 100 % Blue 000 – 255 0 – 100 % White 000 – 255 0 – 100 % Amber 000 – 255 0 –...

  • Page 27: Dmx Value - Id Addresses

    DMX Value – ID Addresses ID addresses ID addresses Select all ID addresses ID address #34 10-19 ID address #1 ID address #35 20-29 ID address #2 ID address #36 30-39 ID address #3 ID address #37 40-49 ID address #4 ID address #38 50-59 ID address #5...

  • Page 28: Beam Angles

    Beam Angles...

  • Page 29: Connection Cables

    Maintenance The Spectral CYC2000 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture‟s light-output will be significantly reduced.

  • Page 30: 9-Channel (Block1)

    6-channel (ARC2+D): Master Dimmer, RGBWA 7-channel (ARC2+S): Master Dimmer, RGBWA, Strobe 3-channel (HSV): Hue, Saturation, Value Additional Features LCD display with password protection Double-bracket doubles as floor stand Design and product specifications are subject to change without prior notice. Website: www.Showtec.info Email: service@highlite.nl...
