INSTALLATION AND OPERATION MANUAL

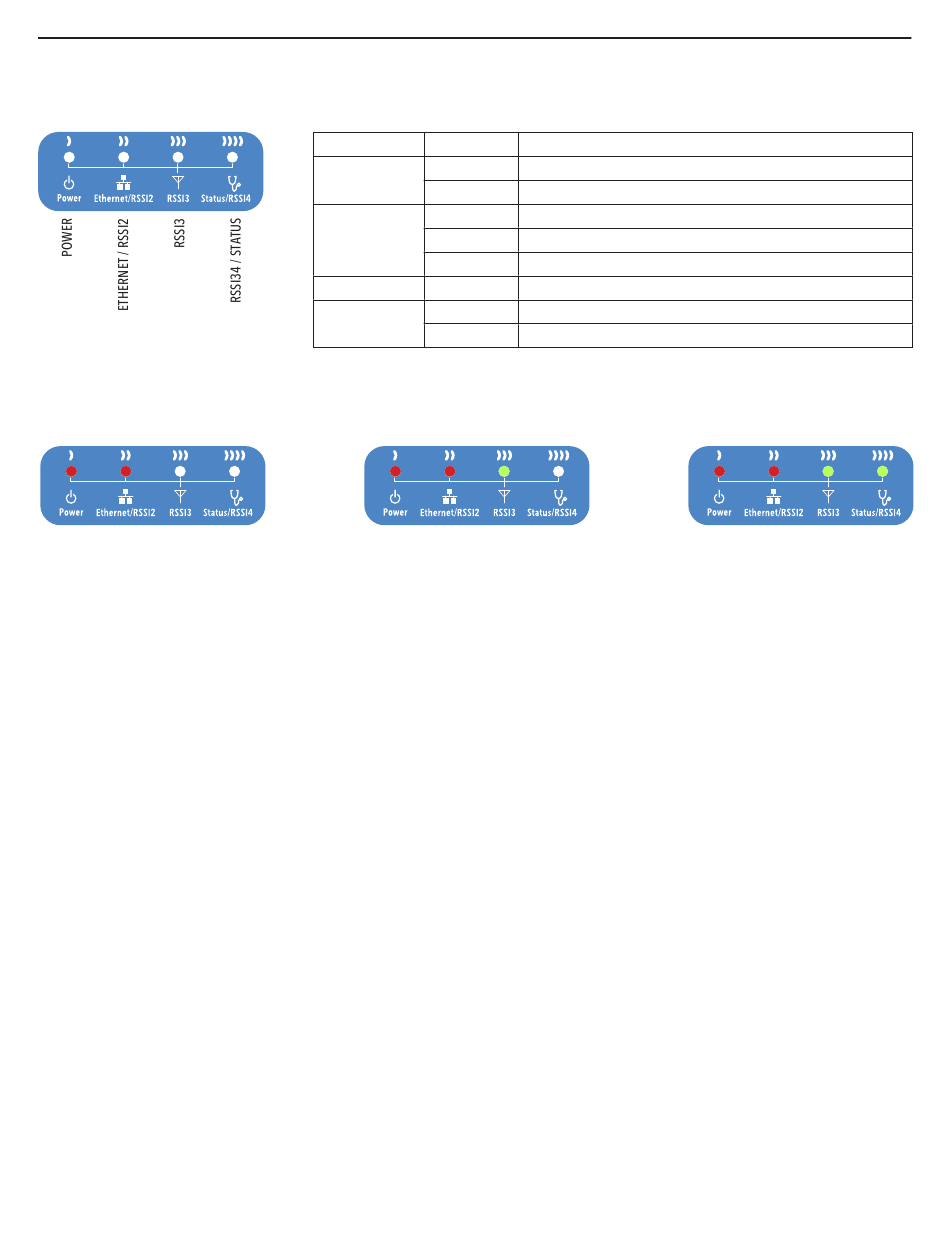

5.2 NW1 and NW2 Indicating LED Details

SIGNAL STRENGTH:
MINIMUM SIGNAL
Power – will illuminate when there is power applied to the Ethernet port
Ethernet – will illuminate when there is an active Ethernet connection
RSSI3 – will illuminate when the RSSI threshold goes above what is set in the RSSI LED Setting
section of the WIRELESS SETTINGS page
Status/RSSI4 – Provided status during boot and will illuminate solid when the RSSI threshold
goes above what is set in the RSSI LED Setting section of the WIRELESS SETTINGS page
TECH SUPPORT: 1.888.678.9427
LED VISUAL CUE
SOLID RED
POWER
OFF
SOLID RED
ETHERNET / RSSI2 FLASH RED
OFF
RSSI3 SOLID GREEN
FLASH GREEN
RSSI4 / STATUS
SOLID GREEN
INDICATION
Power is supplied to the NW1/NW2
No power is supplied to the NW1/NW2
Ethernet connection is established
Ethernet connection is established and there is activity present
No Ethernet connection established
Good signal strength
Unit is booting up
Excellent signal strength
MAXIMUM SIGNAL
NW1/NW2
INS_NW(1,2)_REV– 06/10/13 PAGE 9
