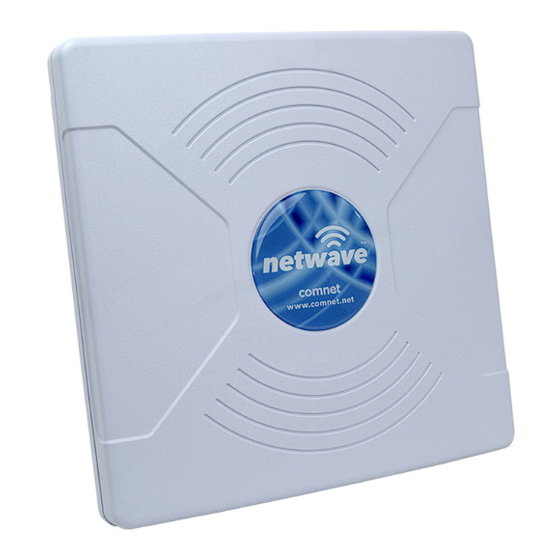

Comnet netwave NW1 Quick Start Manual

Outdoor 802.11a/n wireless ethernet
Hide thumbs Also See for netwave NW1:
Table of Contents

Advertisement

Quick Links

Download this manual
This manual serves the following
ComNet Model Numbers:
NW1
NW2
QUICK START GUIDE
INDUSTRIAL OUTDOOR 802.11A/N WIRELESS ETHERNET
Thank you for purchasing NetWave
walk you through installation.
This guide applies to the following models:
NW1: Industrial Multipoint, FCC Version, User Configurable
NW2: Industrial Multipoint, ETSI Version, User Configurable
An easy to read LED array displays unit operational status along with received signal
strength ensuring optimal installation and operation. See Figure 2 on Page 2 for LED
Indicator explanations.
See Figures 3 through 5 beginning on Page 3 for mounting instructions.
from ComNet. This quick start guide is designed to
®
INS_NW1_NW2_QS_REV– 05/20/13 PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the netwave NW1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comnet netwave NW1

Summary of Contents for Comnet netwave NW1

  • Page 1 QUICK START GUIDE INDUSTRIAL OUTDOOR 802.11A/N WIRELESS ETHERNET Thank you for purchasing NetWave from ComNet. This quick start guide is designed to ® This manual serves the following walk you through installation. ComNet Model Numbers: This guide applies to the following models:...
  • Page 2 QUICK START USER GUIDE NW1/NW2 FIGURE 1 – NW1/NW2 INDUSTRIAL WIRELESS ETHERNET LINK FRONT BACK FIGURE 2 – STATUS LED INDICATIONS VISUAL CUE INDICATION SOLID GREEN Power is supplied to the NW1/NW2 POWER No power is supplied to the NW1/NW2 FLASH GREEN Ethernet connection is established SOLID YELLOW...
  • Page 3 QUICK START USER GUIDE NW1/NW2 FIGURE 3 – INSTALLATION INSTRUCTIONS Step 1. Unpack the mounting hardware from the box. Determine if this will be a pole or wall mount application. The included Mounting kit is designed to support poles up to 3 in (7.6 cm) in diameter. If surface or wall mounting, the optional NWBKT1 hardware will be required.
  • Page 4 QUICK START USER GUIDE NW1/NW2 FIGURE 4 – POLE MOUNT INSTRUCTIONS Included Hardware Vertical Mount in -45º Position Vertical Mount in +45º Position FIGURE 5 – OPTIONAL POLE/WALL MOUNT HARDWARE ComNet Part NWBKT1 TECH SUPPORT: 1.888.678.9427 INS_NW1_NW2_QS_REV– 05/20/13 PAGE 4...

  • Page 5: Installation Requirements

    • Wireless mode – Set to AP or Client • Country code – Only required if setting up the NW2 and NWK2 (ETSI) models NOTE: It is the user’s responsibility to ensure that the correct country is chosen. ComNet accepts no liability for incorrectly set up equipment.
  • Page 6 QUICK START USER GUIDE NW1/NW2 TYPICAL POINT-TO-POINT CONFIGURATION Cat5 Cable 10/100Mbps or other ComNet Gigabit PSE device Managed Switch (Set to Access Point) (Set to Client) Camera with 30W PoE+ TYPICAL POINT-TO-MULTIPOINT CONFIGURATION NOTE: NW1 and NW2 Multipoint nodes will need to have the Wireless Mode set to either AP or Client (default is Client). And the IP addresses will need to be all set to different addresses (default address is 192.168.10.101).
  • Page 7 QUICK START USER GUIDE NW1/NW2 AGENCY COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •...
  • Page 8 T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2014 Communications Networks Corporation. All Rights Reserved. “ComNet,” the “ComNet Logo,” “NetWave,” and the “NetWave Logo” are registered trademarks of Communication Networks, LLC. INS_NW1_NW2_QS_REV– 05/20/13 PAGE 8...
