INSTALLATION AND OPERATION MANUAL

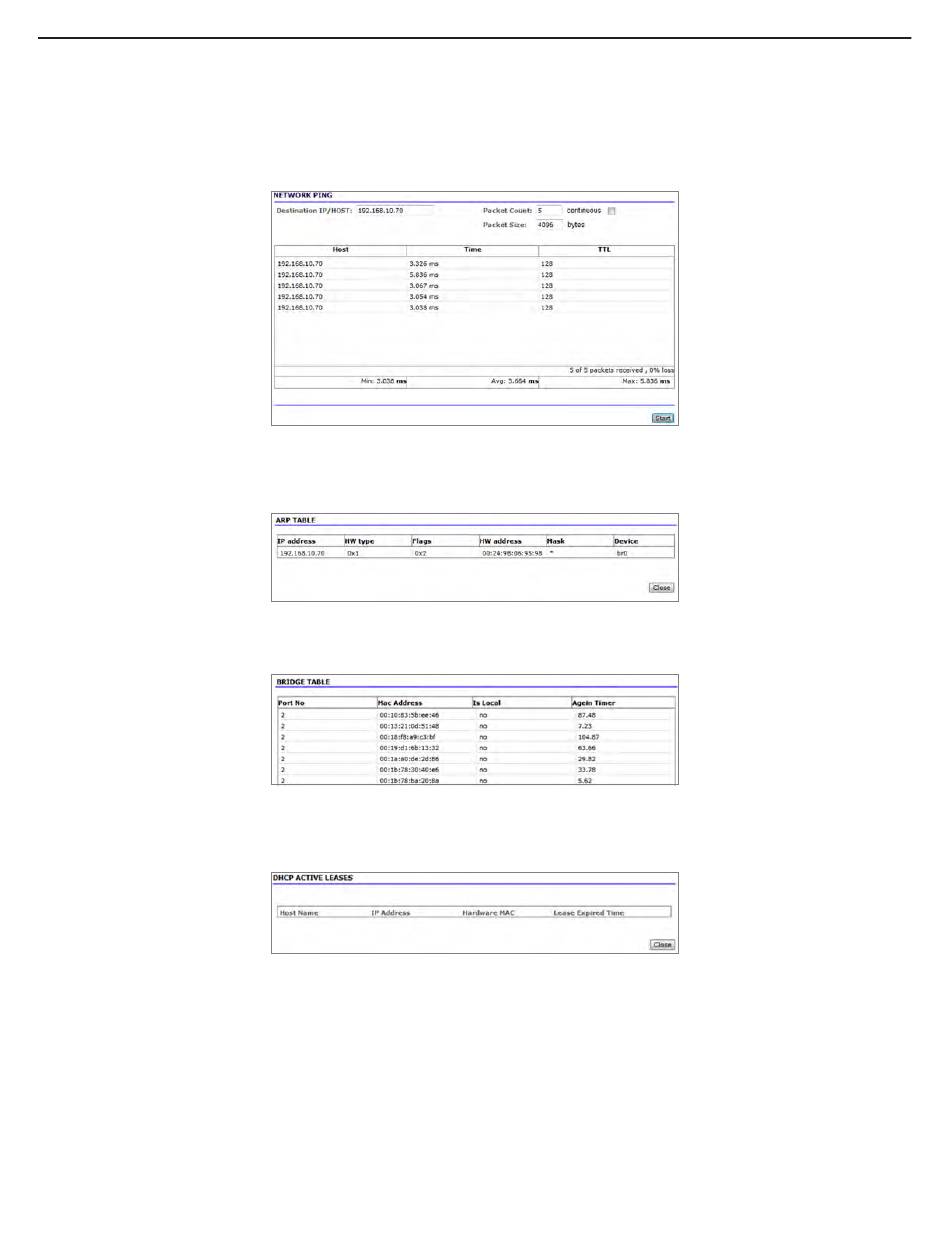

Ping Utility
Use this utility to test network connections using ICMP ping.
When Ping Utility is selected, a pop up screen with come up as shown below:
ARP Table
When ARP Table is selected, the below pop up screen comes up listing all ARP entries:
Bridge Table
This table displays a list of devices connected to the node bridge interface as shown below
DHCP Active Leases
This table displays a list of active DHCP leases if this node were configured as a DHCP server.
TECH SUPPORT: 1.888.678.9427
NW1/NW2
INS_NW(1,2)_REV– 06/10/13 PAGE 35
