INSTALLATION AND OPERATION MANUAL
INDUSTRIAL OUTDOOR ULTRA-HIGH THROUGHPUT,
IMPACT RESISTANT HARDENED 802.11AC
WIRELESS ETHERNET DEVICE
Thank you for purchasing NetWave from ComNet. This installation guide applies to
all Generation 4 NetWave Radios. NW1 Shown in examples.

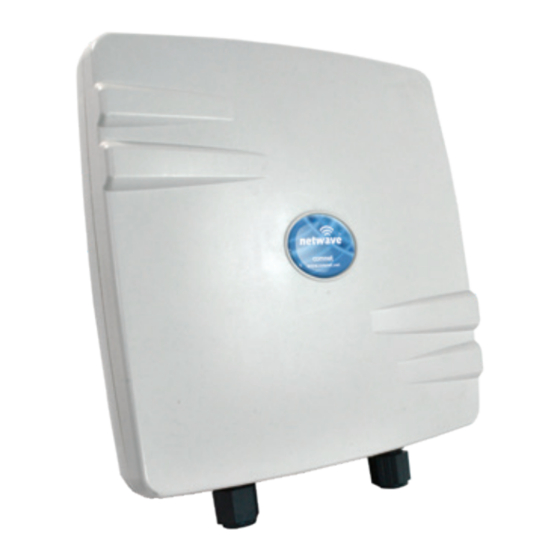

The NetWave® NW(1,2)[IC] Industrial Grade high performance wireless radio is
ideal for high capacity and scalable deployments where channel overlapping and
interference typically cause our discounted competitors radios to become unstable.
The wide range of channel spectrum widths available on the NW(1,2)[IC] series of
radios gives you the option of narrowing channel bandwidths as your network grows
which will increase the number of non-overlapping channels and improve stability.
The NW(1,2)[IC] comes standard with an integrated antenna and an IP67 rated
impact resistant polycarbonate enclosure that is designed to survive the most
extreme conditions.
The NW1 is FCC certified for use in the United States. The NW2 is ETSI, DFS and TPC
certified for use in the European Union. The NW1IC is certified for use in Canada.
