5.0 Hardware Installation

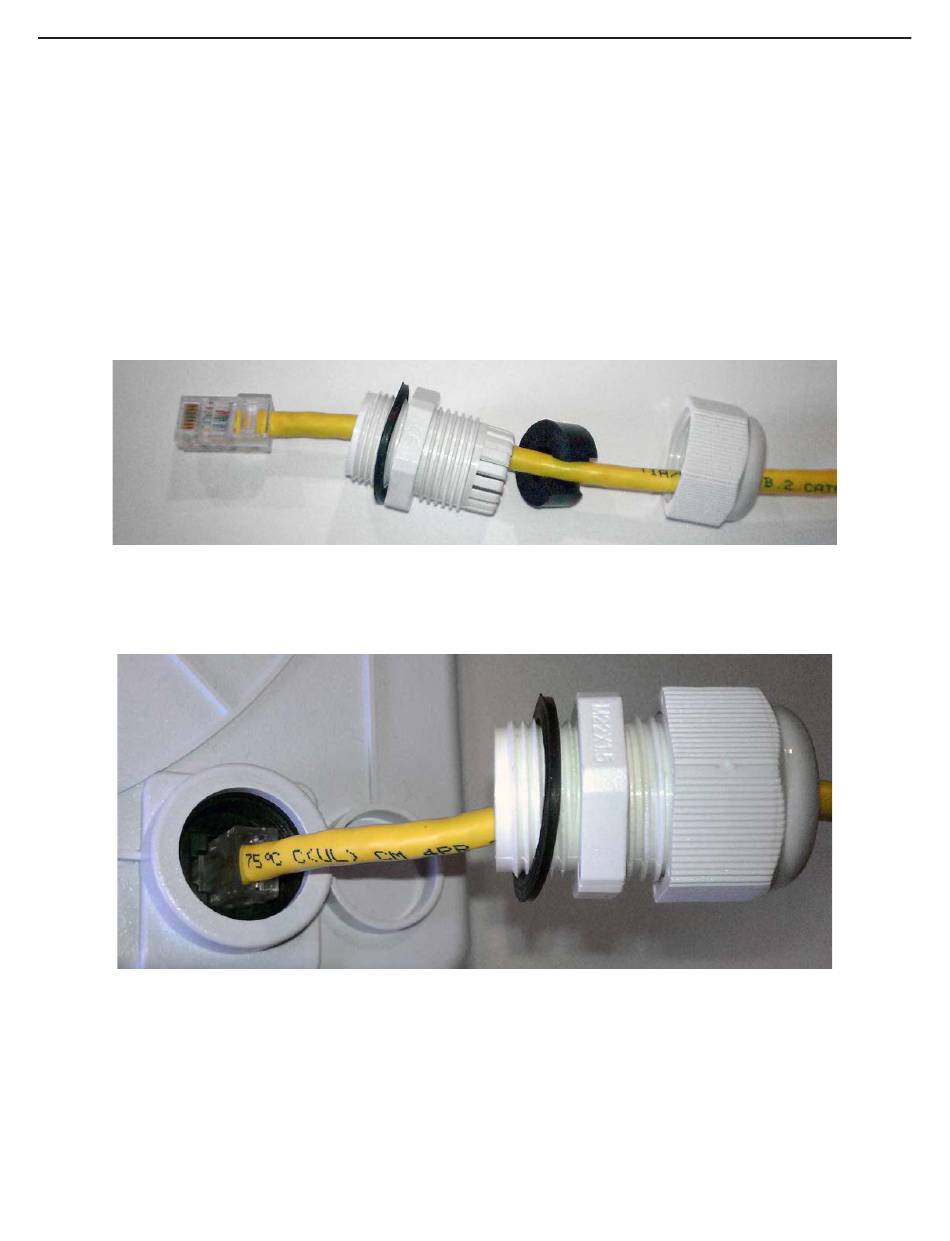

There will be at least one cable gland included with each outdoor enclosure. Below is an image

of the individual parts of the gland with an Ethernet cable routed through.

Note: The split rubber washer allows a pre-terminated Ethernet cable to be used.

Once the cable has been routed through the weather connection as shown, push the split

rubber gasket into place and loosely screw the cap that goes over the rubber washer.

Below is an image with the Ethernet connection made to the node and the gland assembly

about to be installed.

Once the RJ45 connection has been made, screw in the gland into the housing making sure it is

tight enough for a water tight seal.

TECH SUPPORT: 1.888.678.9427

NW1/NW2

INS_NW(1,2)_REV– 06/10/13 PAGE 7
