INSTALLATION AND OPERATION MANUAL

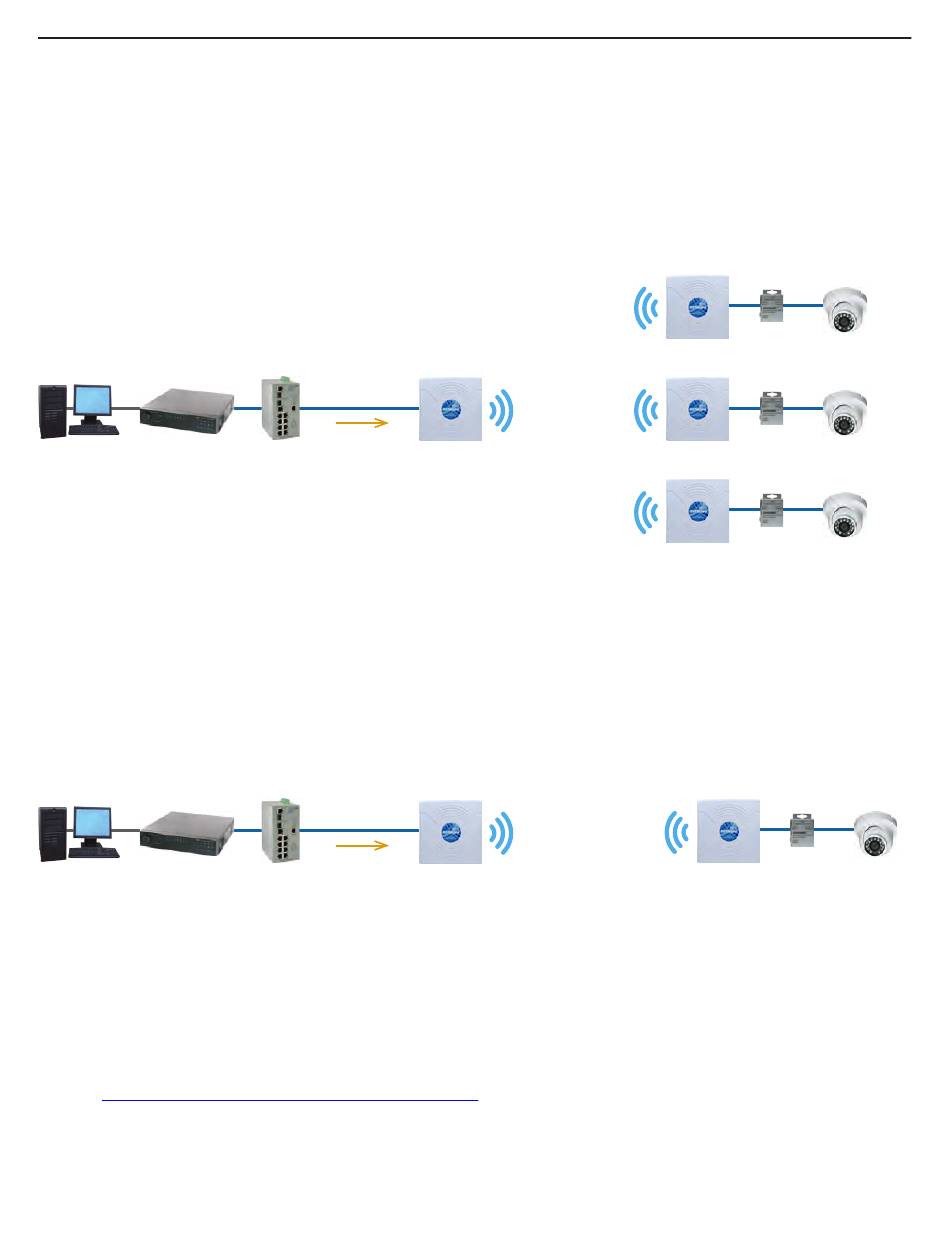

2.0 Point to Multi-Point – NW1 and NW2
These individual units allow the user to configure for either multipoint access point or client
operation. There is a MAC address lock feature that can be enabled through the user interface
but is not enabled by default. The NWx supports integrated directional and external omni
directional antennas. See the ComNet website for the latest information regarding antenna
support.
PC DVR
3.0 Point to Point Systems – NWK1 and NW2
Each point to point kit comes with a preconfigured access point and client. Both units will
not only be configured to operate on the same SSID but also MAC addressed locked to each
other. This simplifies installations as well as enabling higher operating EIRP for FCC versions.
The NetWave preconfigured kit supports integrated directional and external omni directional
antennas. See the ComNet website for the latest information regarding antenna support.
PC DVR

4.0 Cabling Requirements

Shielded CAT 5 or better should be used for all out of plant Ethernet connection and should
be properly grounded through the PoE AC ground. Industrial grade shielded Ethernet cable is
recommended to help prevent ESD damage commonly experienced with outdoor installations.
Visit www.comnet.net/comnet-products/cables
TECH SUPPORT: 1.888.678.9427
Cat5 Cable
(10/100Mbps)
PoE
ComNet Gigabit
Managed Switch (Recommended
with 30W PoE+ Access Point)
Cat5 Cable
(10/100Mbps)
PoE
ComNet Gigabit
Managed Switch (Recommended
with 30W PoE+ Access Point)
NW1/IA870
NW1/IA870
NW1/NW2
Passive
Power IP
NW1
(Client)
Injector Camera
Passive
NW1 Power IP
(Client)
Injector Camera
Passive
Power IP
NW1
(Client)
Injector Camera
Passive
Power
NWK1
(Client)
Injector Camera
INS_NW(1,2)_REV– 06/10/13 PAGE 6
