QUICK START GUIDE
INDUSTRIALLY HARDENED HIGH PERFORMANCE
WIRELESS ETHERNET
Thank you for purchasing NetWave
walk you through installation.
This guide applies to all Generation 4 5GHz NetWave Radios.
An easy to read LED array displays unit operational status along with received signal
strength ensuring optimal installation and operation. See Figure 2 on Page 2 for LED
Indicator explanations.
See Figures 3 through 5 beginning on Page 3 for mounting instructions.
from ComNet. This quick start guide is designed to
®
INS_NetWave_QS_REV– 07/7/15 PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetWave NW1 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet NetWave NW1 Series

Summary of Contents for Comnet NetWave NW1 Series

  • Page 1 QUICK START GUIDE INDUSTRIALLY HARDENED HIGH PERFORMANCE WIRELESS ETHERNET Thank you for purchasing NetWave from ComNet. This quick start guide is designed to ® This manual serves the following walk you through installation. ComNet Series: NW1[IC] This guide applies to all Generation 4 5GHz NetWave Radios.

  • Page 2: Signal Strength

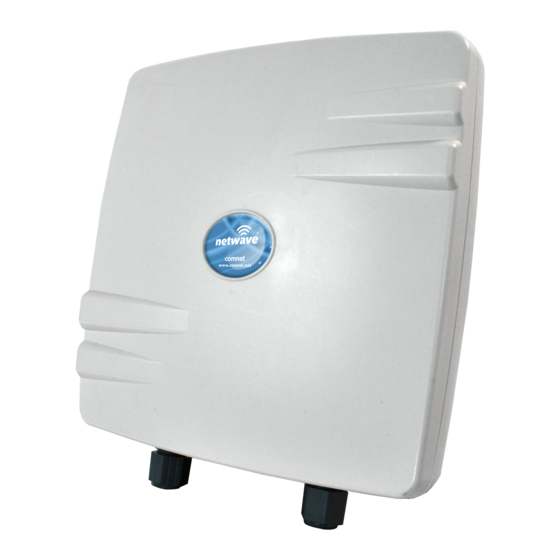

    QUICK START USER GUIDE NETWAvE FIGURE 1 – INDUSTRIAL HIGH THROUGHPUT WIRELESS ETHERNET LINK PORT 1 - POE IN PORT 2 - POE OUT PORT 2 - POE OUT PORT 1 - POE IN FRONT BACK IMPORTANT: Only plug PoE power to Port 1. Connecting a PoE power source to the PSE Port (#2) will cause a major device malfunction and void the warranty.
  • Page 3 QUICK START USER GUIDE NETWAvE FIGURE 3 – INSTALLATION INSTRUCTIONS Step 1. Unpack the mounting hardware from the box. Determine if this will be a pole or wall mount application. The included Mounting kit is designed to support poles up to 2 in (5.8 cm) in diameter. If surface or wall mounting, the optional NWBKT hardware will be required.

  • Page 4: Installation Requirements

    WIFI STANDARDS 802.11AC with a 867 Mbps data is available but only recommended for ideal RF environments. For applications with more than 10 RF devices, ComNet Recommends using the 802.11a/n standard to help limit the amount of RF Noise. NOTE: A Reset to defaults (performed on the ADMIN page or via the RESET button) will erase all user configurations.

  • Page 5: Default Configurations

    • Wireless mode – Set to AP or Client • Country code – Only required if setting up ETSI Models (NW2, NW9E). NOTE: It is the user’s responsibility to ensure that the correct country is chosen. ComNet accepts no liability for incorrectly set up equipment.

  • Page 6: Reset To Factory Default

    CONFIGURING MAC LOCK FOR POINT TO POINT LINKS* MAC-Filter replaces MAC-Lock on the first generation Netwave hardware. MAC-Filter is only available on devices operating as an AP. By default, it is disabled. You can locate MAC-Filter tab by going to Networking -> WIFI -> Enable. To enable and lock to a client radio, Click on the drop down menu and select “Allow Listed Only”.
  • Page 7 NETWAvE TYPICAL POINT-TO-POINT CONFIGURATIONS Ethernet (Access Point) (Client) 1Gbps 1Gbps PoE Camera Ethernet Ethernet Ethernet ComNet Gigabit ComNet Gigabit Managed Switch Managed Switch providing 30W PoE providing 30W PoE Connected to Network PoE Camera Power CNGE1IPS or (Client) (Access Point)

  • Page 8: Agency Compliance

    QUICK START USER GUIDE NETWAvE AGENCY COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •...
  • Page 9 T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2021 Communications Networks Corporation. All Rights Reserved. “ComNet,” the “ComNet Logo,” “NetWave,” and the “NetWave Logo” are registered trademarks of Communication Networks, LLC. INS_NetWave_QS_REV– 07/7/15 PAGE 9...
