INSTALLATION AND OPERATION MANUAL

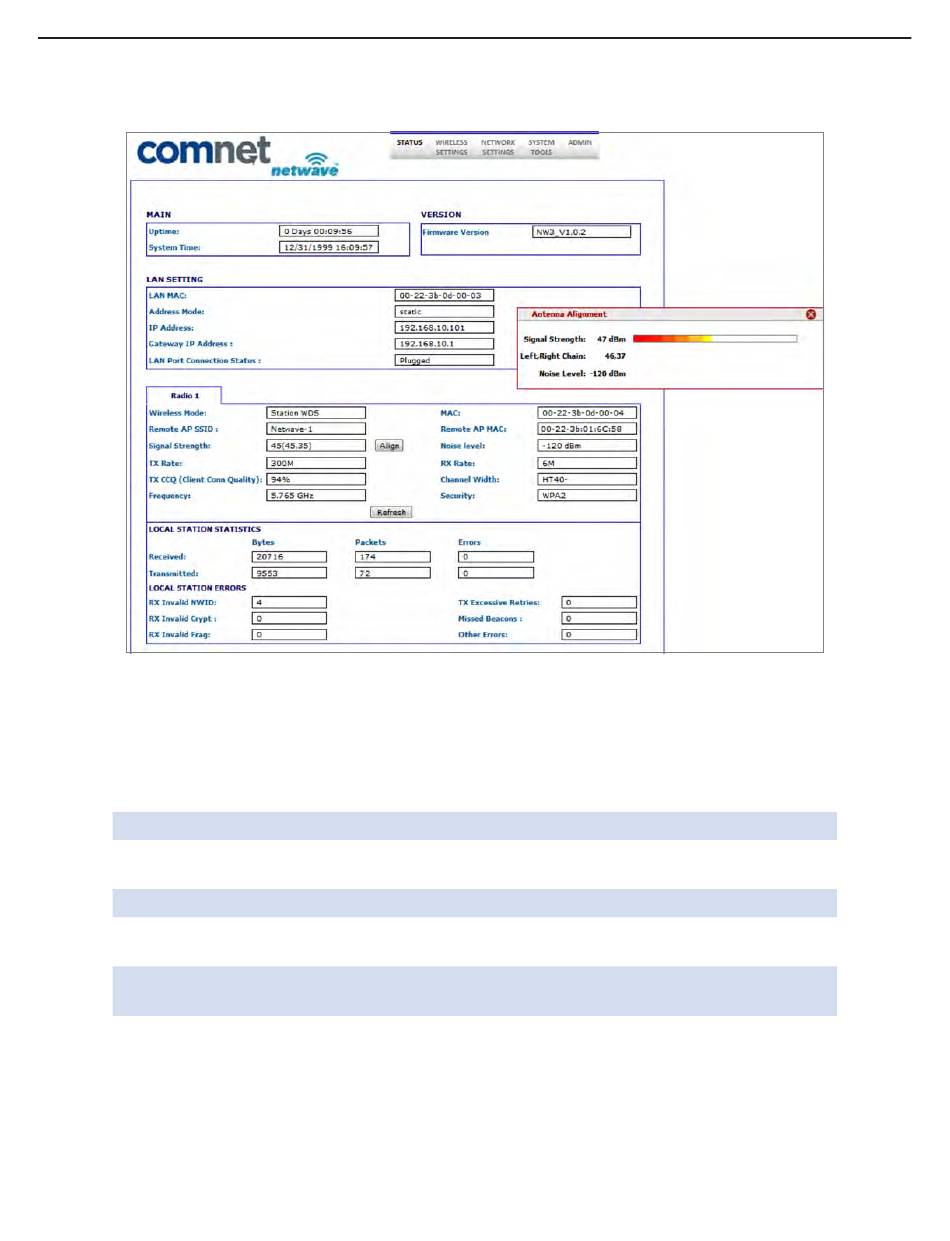

8.2 STATUS-Client Page - Client

8.2.1 STATUS-Client Page MAIN Section
This section will list the unit uptime as well as the system time which can be set on the SYSTEM
TOOLS page.
8.2.2 STATUS-Client Page LAN SETTING Section
LAN MAC
Address Mode
IP Address
Gateway IP
Address
LAN Port
Connection
TECH SUPPORT: 1.888.678.9427
Lists the MAC address for the electrical copper Ethernet port
Shows the current setting for setting the IP address for the embedded
web server. This is configured on the NETWORK SETTINGS page
Current IP address for the embedded web server
IP address for the network gateway
Shows connection status for the copper Ethernet port.
NW1/NW2
INS_NW(1,2)_REV– 06/10/13 PAGE 17
