Operation

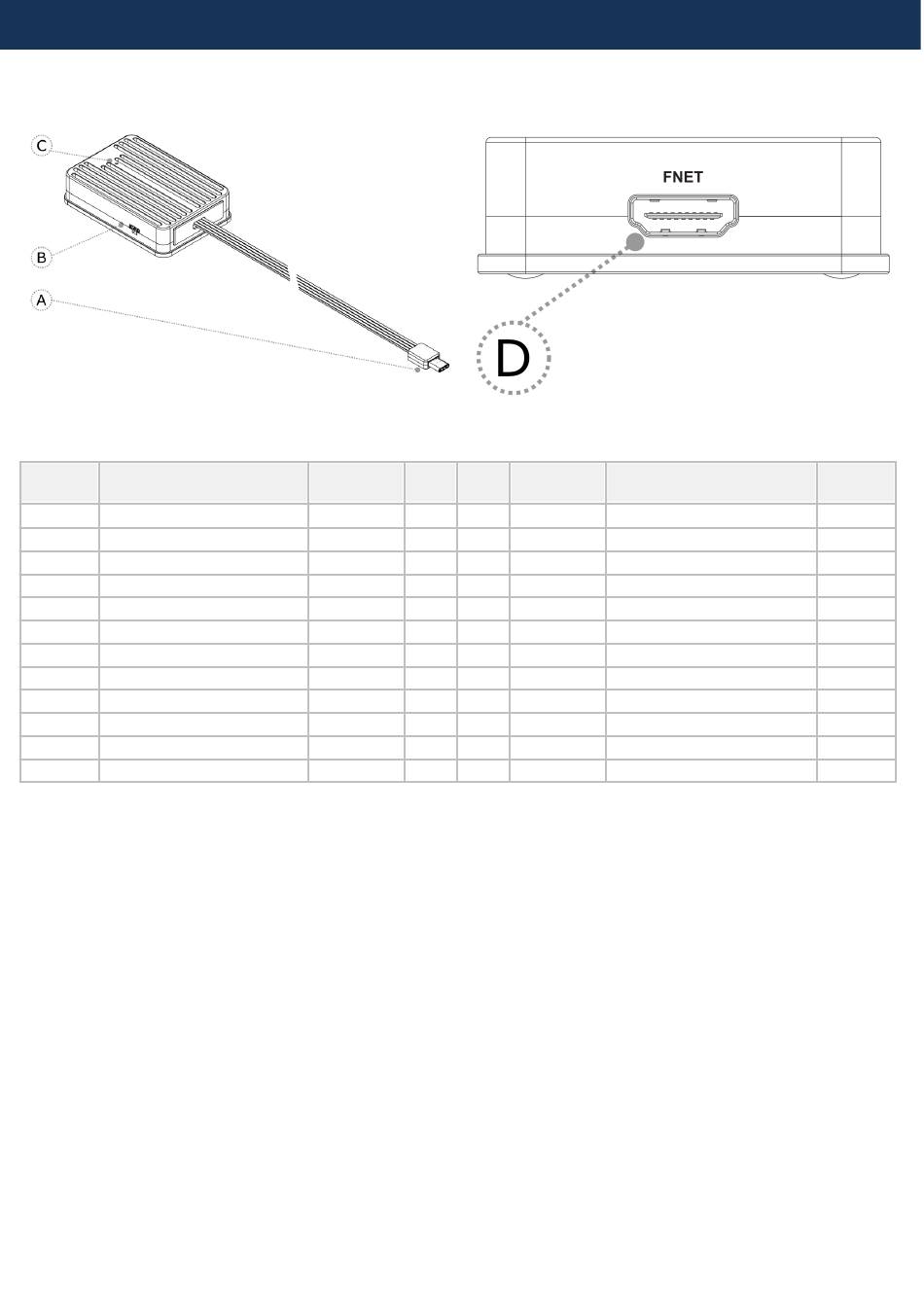

A – USB-C connector, with the following pinout:
Signal
Signal Description
Direction
Ground
I AGBT TX0_P
I AGBT TX0_N
Not Connected
I/O Target Reset Pin
I/O Optional 2nd DAP data
I/O Optional 3rd DAP data
O DAP Clock
Not Connected
Not Connected
Not Connected
Ground
Blue colored signals are trace signals.
Signal direction definition:
O – Output from the Active Probe to the target microcontroller
I – Input to the Active Probe from the target microcontroller
Signal Pin Pin
GND A1 B12
TX0+ A2 B11
TX0- A3 B10
NC A4 B9
nRESET A5 B8
DAP2 A6 B7
DAP3 A7 B6
DAP0 A8 B5
NC A9 B4
NC A10 B3
NC A11 B2
GND A12 B1
(HSTCU) USB-C pinout
Signal Signal Description
NC Not Connected
CLK+ AGBT Clock
CLK- AGBT Clock
NC Not Connected
DAP1 DAP Data
nTRST Output
NC Not Connected
Vref Reference Voltage
NC Not Connected
NC Not Connected
NC Not Connected
GND Ground
Signal
Direction
O
O
I
O
I
