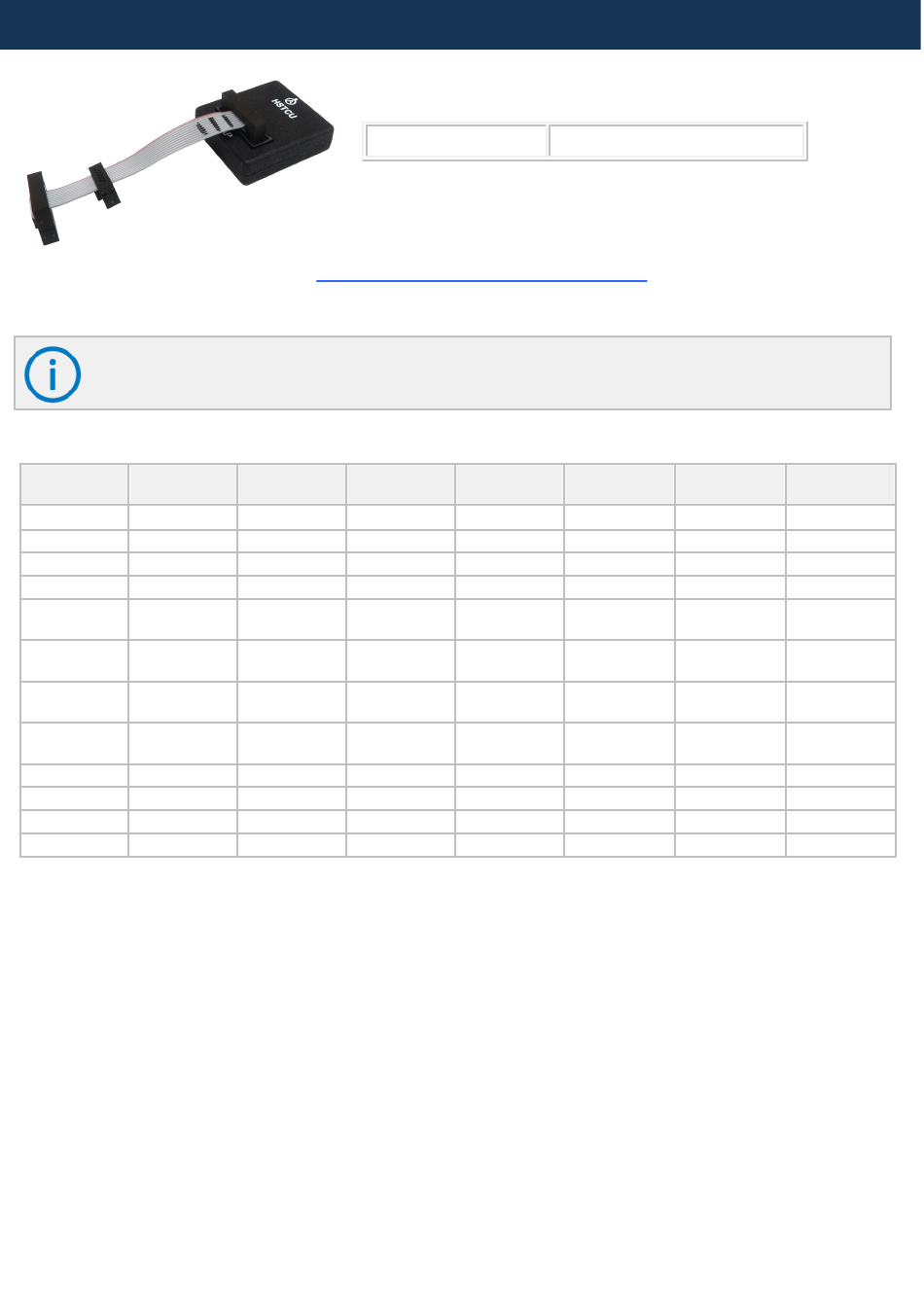

HSTCU (USB-C) to DAP10 1.27 Converter

This converter is used to connect
the target via DAP connector. It must be ordered separately.
When attaching this converter to the Active Probe, make sure its marking A and marking B is
aligned and matches with the markings on the Active Probe connector.
The following pinout is valid on the converter side:
Signal
Signal Direction
Description
Ground
Not Connected
Not Connected
Not Connected
Target Reset
I/O
Pin
Optional 2nd
I/O
DAP data
Optional 3rd
I/O
DAP data
O DAP Clock
Not Connected
Not Connected
Not Connected
Ground
Ordering code
Infineon SGBT (HSTCU) Active Probe
Signal Pin
GND A1
NC A2
NC A3
NC A4
nRESET A5
DAP2 A6
DAP3 A7
DAP0 A8
NC A9
NC A10
NC A11
GND A12
(HSTCU) USB-C pinout
IAHSTCU-DAP10
(Ordering code: IC57166) to
Pin Signal
B12 NC
B11 NC
B10 NC
B9 NC
B8 DAP1
B7 NC
B6 NC
B5 Vref
B4 NC
B3 NC
B2 NC
B1 GND
Signal
Signal Direction
Description
Not Connected
Not Connected
Not Connected
Not Connected
DAP Data I
Not Connected
Not Connected
Reference
I
Voltage
Not Connected
Not Connected
Not Connected
Ground
