Operation

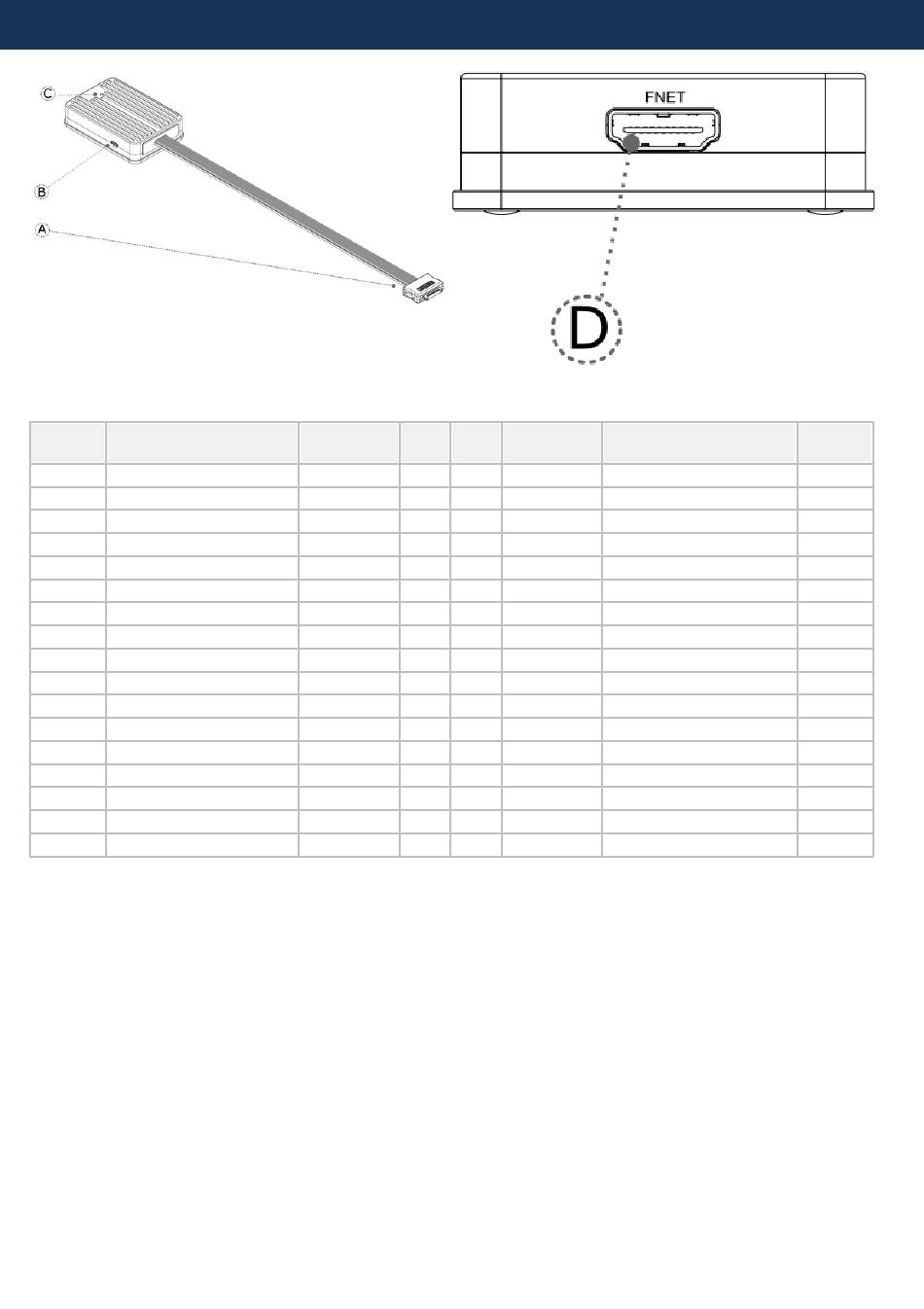

A – RH850 Aurora target pinout:
Signal
Signal Description
Direction
I AGBT TX0_P
I AGBT TX0_N
Ground
Ground
Ground
Ground
Not Connected
Not Connected
Ground
Not Connected
Not Connected
Blue colored signals are Aurora trace signals.
Signal Direction is described from the BlueBox perspective.
Signal direction definition:
O - Output from the Active Probe to the target microcontroller
I - Input to the Active Probe from the target microcontroller
Signal Pin Pin
TX0_P 1 2
TX0_N 3 4
GND 5 6
Reserved 7 8
Reserved 9 10
GND 11 12
Reserved 13 14
Reserved 15 16
GND 17 18
Reserved 19 20
Reserved 21 22
GND 23 24
NC 25 26
NC 27 28
GND 29 30
NC 31 32
NC 33 34
34-pin ERF8 RH850 target pinout
Signal Signal Description
Vref Reference Voltage
LPDCLK Debug Clock
TMS JTAG
LPDI Debug Signal
LPDO Debug Signal
nTRST Debug Signal
FLMD0 Flash Mode
nEVTI Nexus Event Input
nEVTO Nexus Event Output
FLMD1 Flash Mode
RESETn Reset
GND Ground
CLK_P AGBT Clock_P
CLK_N AGBT Clock_N
GND Ground
LPDCLKOUT Debug Clock
Reserved
Signal
Direction
I
O
O
O
I
O
O
O
I
I/O
O
O
I
