SYNERGIC / PULSED / DOUBLE
PULSED MIG
Press the button

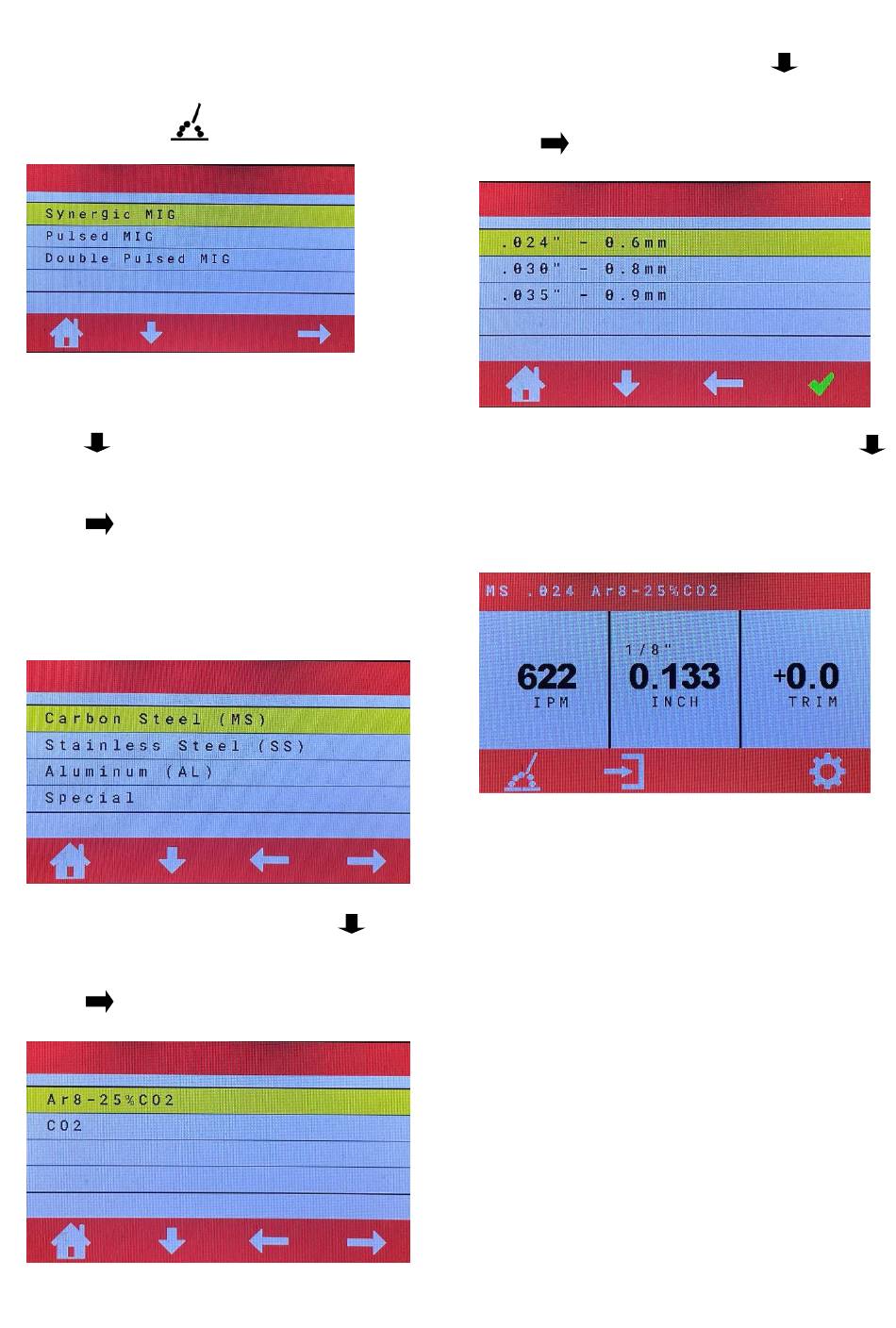

Select the Synergic Mig , Pulsed Mig or
Double Pulsed Mig function through the
button ( Fig.4,ref.9 ) or the encoder
( Fig.4,ref. 12 )
To activate the selected function, press the
button ( Fig.4,ref. 11 )
SYNERGIC MIG MODE
Choosing the Synergic Mig mode the display
will show this :
Select the material though the button
( Fig.4,ref.9 ) or the encoder ( Fig.4,ref. 12 )
To activate the selected function, press the
button ( Fig.4,ref. 11 )
( Fig.4,ref. 8 )
Select the GAS though the button
( Fig.4,ref.9) or the encoder ( Fig.4,ref. 12)
To activate the selected function, press the
button ( Fig.4,ref. 11 )
Select the size of the wire though the button
( Fig.4,ref.9 ) or the encoder ( Fig.4,ref. 12 )
To activate the selected function, press the
Ѵ
button ( Fig.4,ref. 11 )
Once you select a program, the program is
displayed . The top line in the display shows
the name of the program, the wire diameter,
and the required gas/gas mixture. The line
below displays, starting from the left, the wire
speed, material thickness and arc trim.
On the Left display ( Fig.4,ref.15 ) there is an
approximate amperage (calculated based on
the material, wire speed, wire diameter, and
other variables).
On the right display ( Fig.4,ref. 13 ) there is
the value of the volts .
By turning left encoder F ( Fig. 4,ref.16 ),
you can adjust the material thickness;
adjusting the material thickness also adjusts,
automatically, the wire speed and the voltage
