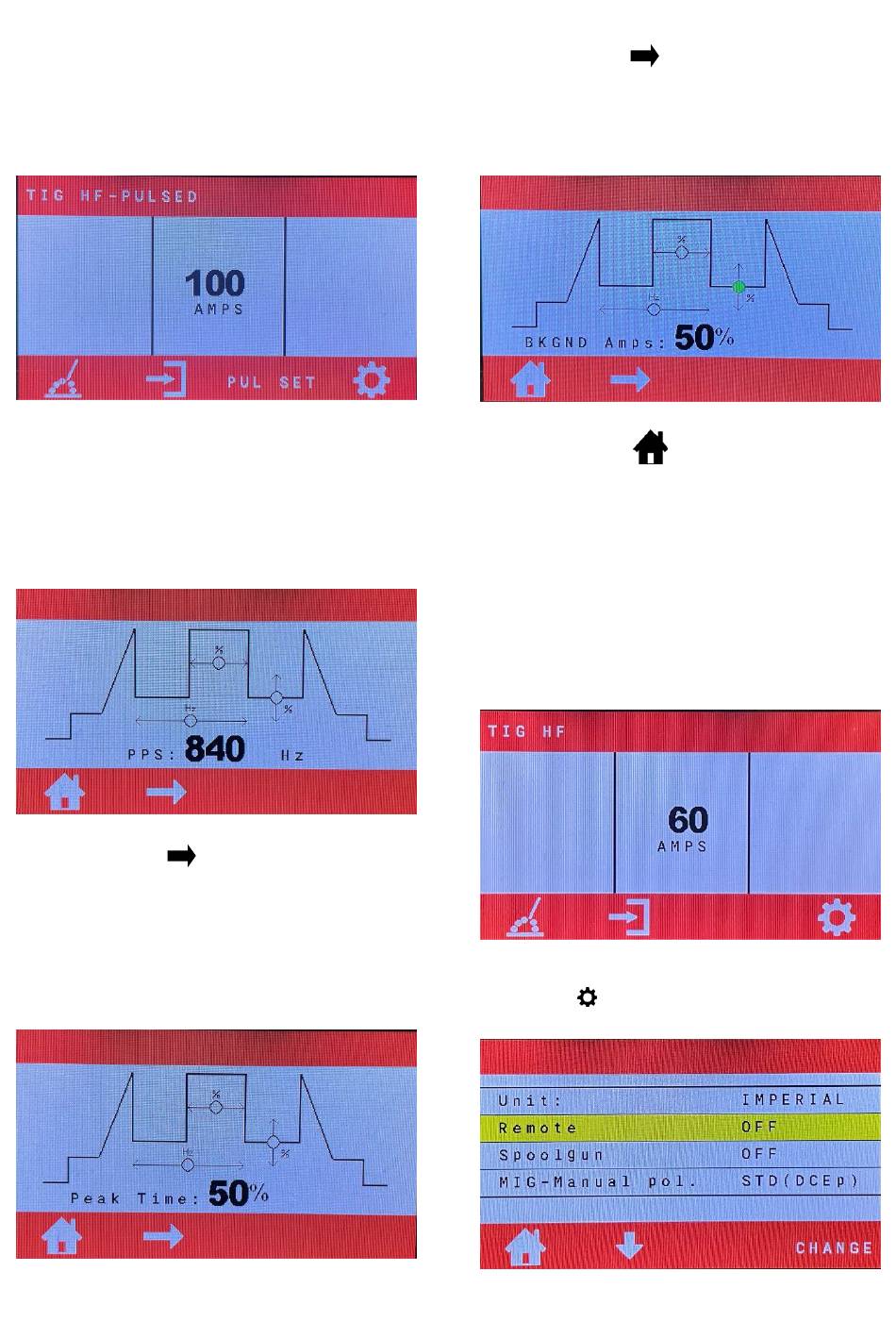

DC PULSE MODE
When you select The Pulse mode DC you can
regulate three different parameters .
For regulate the pulse parameters press the
button PUL SET ( Fig.4,ref. 10 ) . With the
encoder ( Fig.4,ref. 12 ) you can regulate
the value of the Frequency ( Hz ) . The value
is adjustbale from 0,4 to 1000 Hz .
Press the button
Time regulation . The value is adjustable from
10 to 90 % . Peak Time refers to pulse-on
time or the percentage of time that you weld
at peak current (the previously adjusted
welding current) over the background current.
( ref. 11 ) to go to Peak
Press the button
Background amps regulation .Background
amp regulation is a percentage of the welding
current .
Press the button
8 ) to come back to main screen.

REMOTE CONTROL

When you connect a REMOTE CONTROL it
is necessary activate the function from the
settings menu.
To activate the REMOTE CONTROL press
the button ( Fig.4,ref.11 )
( Fig.4,ref. 11 ) to go to
( HOME ) ( Fig.4,ref.
