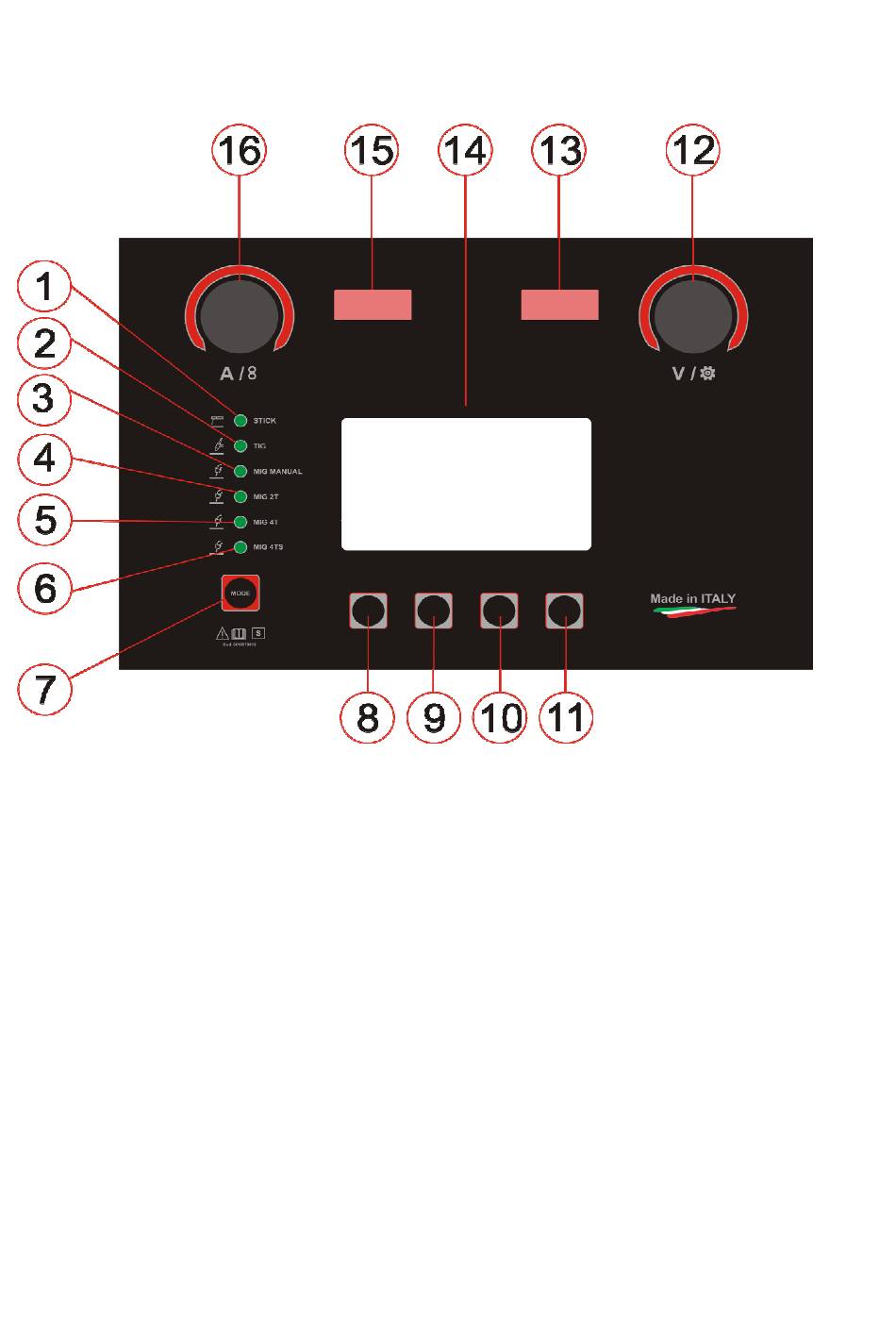

FRONT PANEL CONTROLS

1 STICK WELDING LED ;
2 TIG WELDING LED ;
3 MIG MANUAL WELDING LED;
4 MIG SYNERGIC 2T LED ;
5 MIG SYNERGIC 4T LED ;
6 MIG SYNERGIC 4TS LED -
7 SELECT MODE button - Allows you to access different welding modes by pressing
repeatedly.
8 9 10 11 SETUP AND SELECTIONS BUTTON - The function of these buttons differs
depending on which mode the machine is in and what setup screen the machine is on. The function
of the individual button is shown in the display right above each button.
12 RIGHT ENCODER - Turning the right encoder in manual mode sets the voltage, while
turning the right encoder in all synergic and pulse programs adjusts the voltage of the synergic
curve but does not set an absolute arc voltage as it does in manual mode. (This can also be done by
welding). If the machine is in a setup menu screen, you may use the right encoder to scroll through
lists and make adjustments as necessary.
13 RIGHT DISPLAY - In this display you can see the voltage
14 MAIN DISPLAY – In this display you see all welding parameters
15 LEFT DISPLAY - Shows wire feed speed,welding amperage or maximum pedal amperage
16 LEFT ENCODER - Turning the left encoder in manual mode adjusts the wire feed speed,
while turning the left encoder in all synergic and pulse programs adjusts the material
thickness, wire feed speed, amperage, and voltage. (This can also be done while welding).
Fig. 4
