TIG WELDING

TIG 2T
Use the Select Mode button ( Fig.4,ref 7 ) to
toggle through the menu until the LED next to
2T illuminates. You are now in the TIG 2T
welding mode.

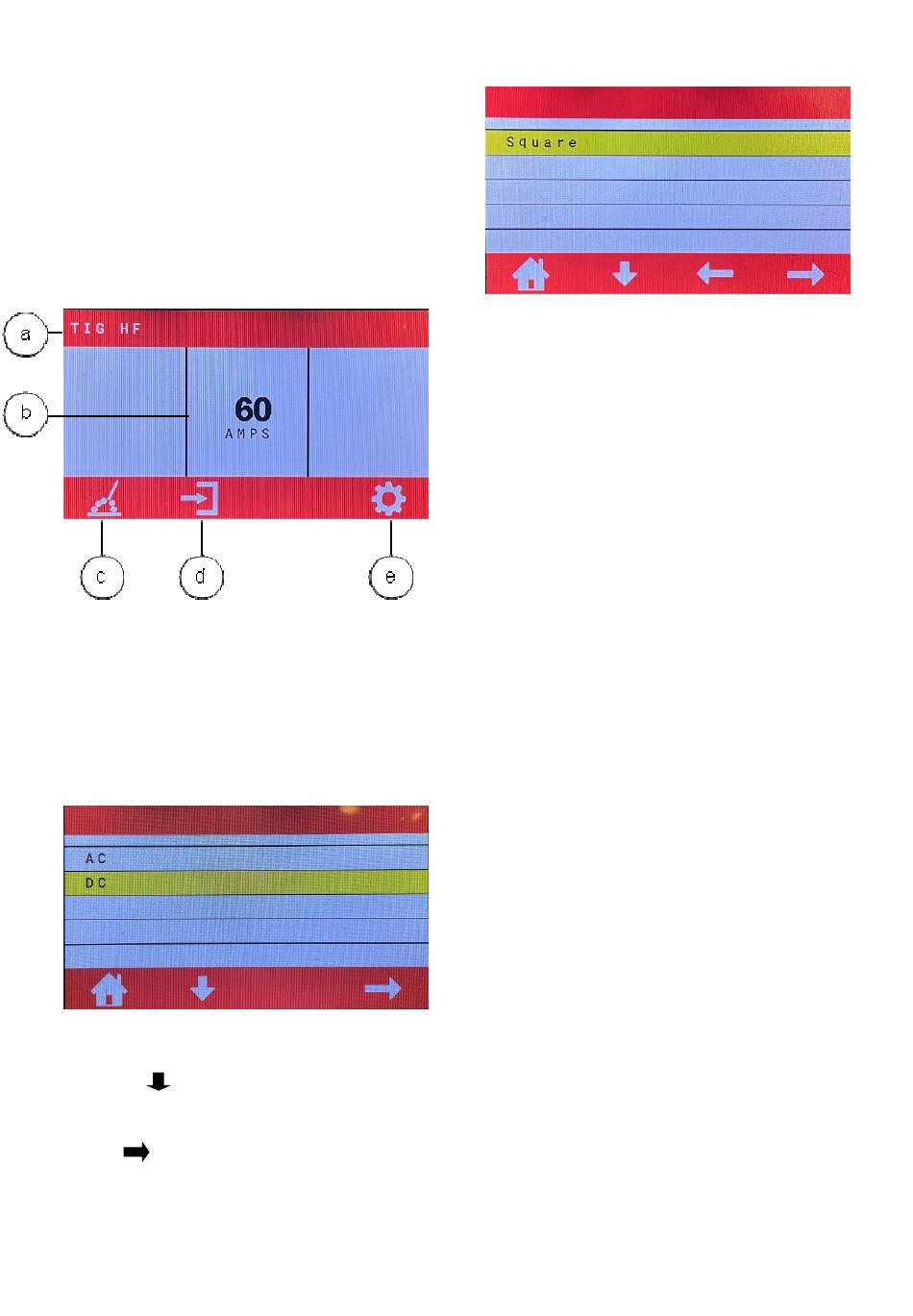

a Welding Mode;
b Amps;
c Process ;
d Sequence ;
e Settings ;
Plug the TIG torch into the output receptacle
( Fig.1, ref.U ) and the ground clamp into the
output receptacle ( Fig.1,ref. W )
1) Press the button ( Fig.4,ref.8 )
2) Select the AC or DC set function through
the button ( Fig.4,ref.9 ) or the encoder
( Fig.4,ref. 12 )
3) To activate the selected function, press the
button ( Fig.4,ref. 11 )
3a) If you activate the AC function the next
screen will be this :
SQUARE is the AC Wave Form.
SQUARE WAVE : The standard wave form
for all modern inverter
machines. The square wave offers excellent
power, arc control, and bead appearance. A
good choice, all around, for aluminum
welding. When in use, some operators may
perceive the square wave sound as loud and
unpleasant. However, many operators prefer
to use a square wave due to its superior
performance and features, such as the ability
to run pulse.
.
