HTP Revolution 2500 Manual page 20

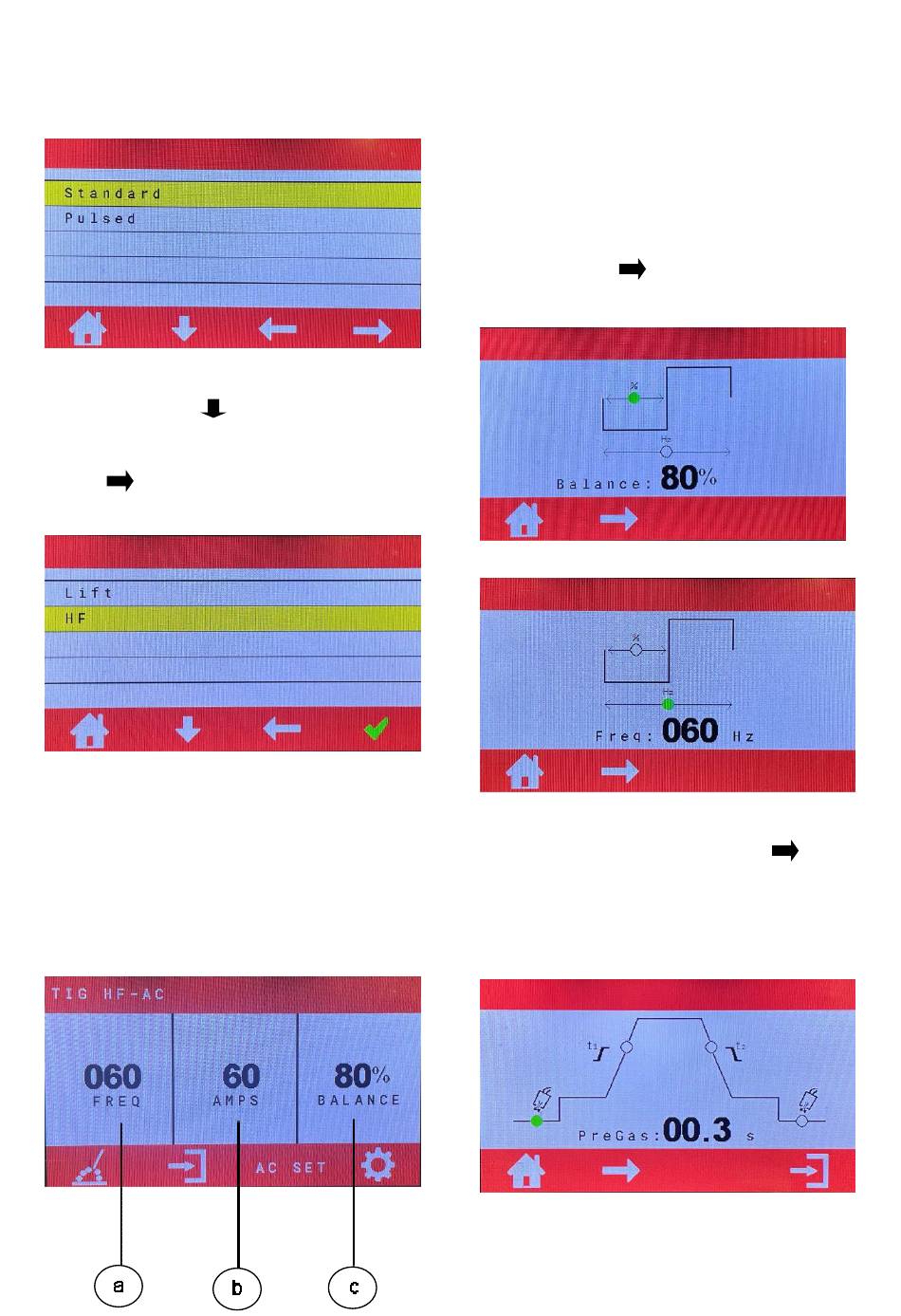

4) Then you will go to a new screen ( Only if
you select DC mode )
5) Select the Standard or Pulsed set function
through the button
encoder ( Fig.4,ref.12 )
6) To activate the selected function, press the
button ( Fig.4,ref. 11 )
7) Then you will go to a new screen:
8) Select LIFT or HF through the button
( Fig.4, ref.9 ) or the encoder ( Fig.4,ref. 12 )
AC MODE
This is the main screen when you activate the
AC MODE
( Fig.4,ref.9 ) or the
a AC Frequency;
b Amps;
c AC Balance
For regulate the parameters AC
FREQUENCY and AC BALANCE press the
button AC SET ( Fig.4, ref.10 ). With the
encoder ( Fig.4, ref. 12 ) you can regulate
the value .
Press the button
Frequency regulation .
In order to access the TIG - MAIN
SETTINGS submenu, press button
(Fig.4, ref.9 ), and the following screen
appears
( Fig.4,ref. 11 ) to go to
]
