Home Position Adjustment - ACME PIXEL LINE IP User Manual

 To access the control menus, press the [MENU] button.
 To access the offset menus, long-press the [ENTER] button.
 Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.
 To select a menu option or to confirm a selection, press the [ENTER] button.
 To return to a higher level in the menu structure without making a change, press the
[MENU] button, or wait 30 seconds.
RED-A

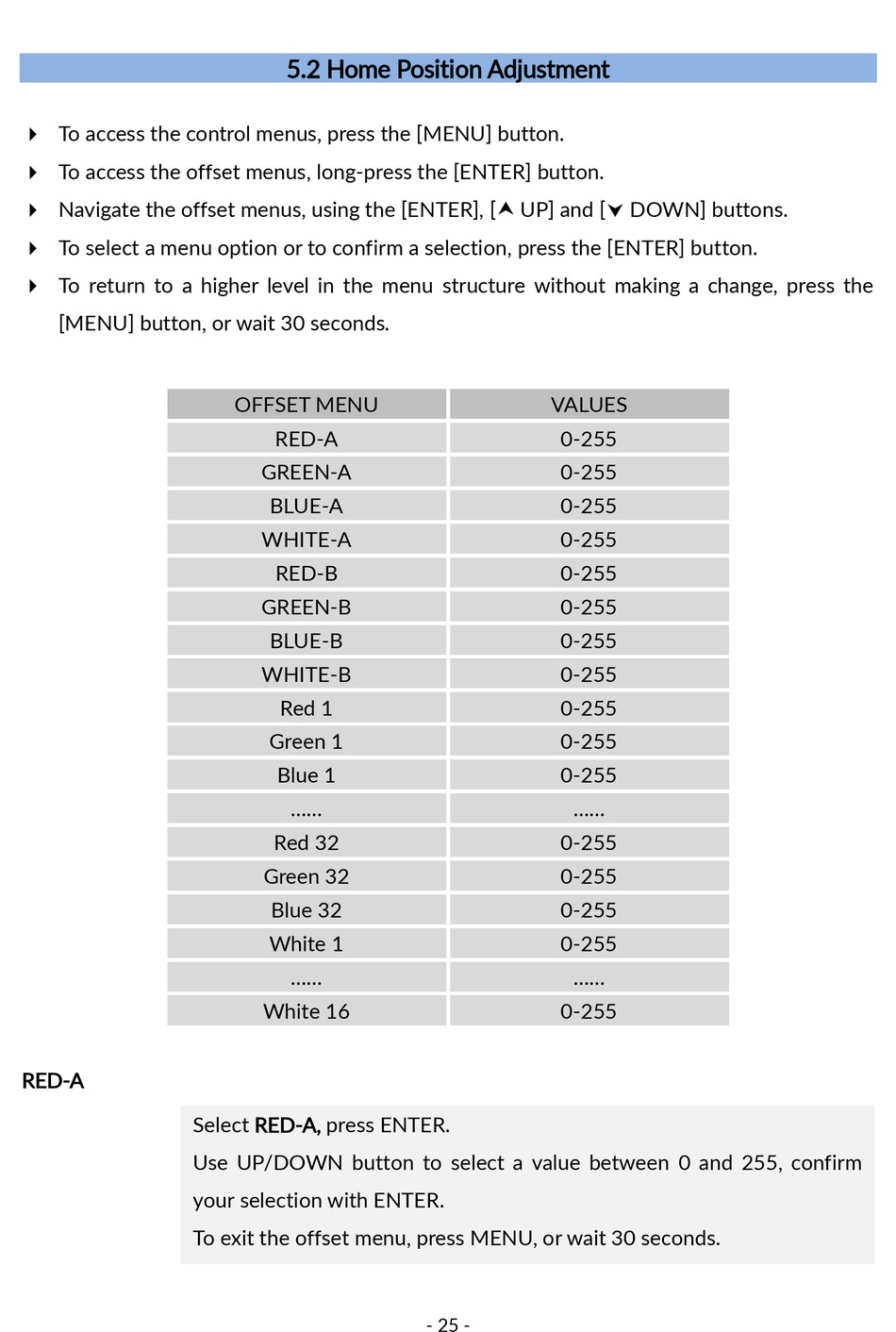

5.2 Home Position Adjustment

OFFSET MENU
RED-A
GREEN-A
BLUE-A
WHITE-A
RED-B
GREEN-B
BLUE-B
WHITE-B
Red 1
Green 1
Blue 1
......
Red 32
Green 32
Blue 32
White 1
......
White 16
Select RED-A, press ENTER.
Use UP/DOWN button to select a value between 0 and 255, confirm
your selection with ENTER.
To exit the offset menu, press MENU, or wait 30 seconds.
VALUES
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
......
0-255
0-255
0-255
0-255
......
0-255
- 25 -
