Summary of Contents for ACME Stag Par MP-200

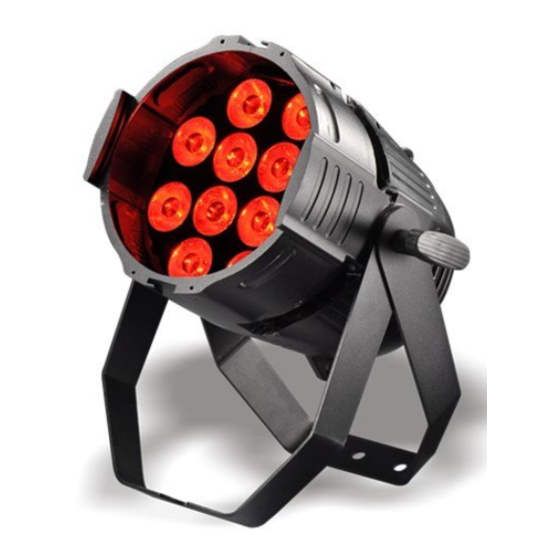

- Page 1 MP-200 User Manual Please read the manual carefully before using...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ..................3 3. How To Set The Unit ..................5 3.1 Control panel....................5 3.2 Main Functions ..................6 4. How to Control the Unit ................12 4.1 Master/Slave Built In Preprogrammed Function ........12 4.2 DMX Controller ..................12 5. -
Page 3: Safety Instructions
1. Safety Instructions Please read the instruction carefully, it includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. -
Page 4: Technical Specifications
For 230V 50Hz power supply, maximum fixtures that can be connected on one power cable is 8; For 120V 60Hz power supply, maximum fixtures that can be connected on one power cable is 4; Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. - Page 5 ◇ Electronic strobe smooth dimming with wash effect ◇ Quad color with flicker-free Voltage： AC 100~240V, 50/60Hz Power Consumption： 122W LED: 12pcs x 10W CREE LEDs Fuse: T 6.3A Beam Angle: 10° Dimension： 325 x 276x 344mm Weight： 6.6Kgs...
-
Page 6: How To Set The Unit
3. How To Set The Unit 3.1 Control panel 1. Mains Input: Used to connect to supply mains power for the fixture. 2. Mains Output: Used to connect to the next fixture. 3. DMX Output: Used to output the DMX signal to the next fixture by a 3-pin XLR plug cable. 4. -
Page 7: Main Functions
Button: 11. MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions 14. ENTER To confirm the selected functions 3.2 Main Functions To select any of the given functions, press the MENU button up to when the required one is showing on the display. -
Page 9: Channel Mode
DMX 512 Address Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX 512 Address. Once the required address has been selected, press the ENTER button to save or automatically return to the main functions without any change after one minute. - Page 10 (Dimmer 255); select the (Color 10), press the ENTER button, and select the (Red), (Green),… (Dimmer), pressing the ENTER button and adjust the brightness intensity from When you selected the (Fade mode), press the ENTER button, and then use the DOWN and UP button to adjust the fade speed from (Speed 1, the slowest) to (Speed 3: the fastest).
-
Page 11: Led Display
Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels. Sound Mode Select the , press the ENTER button and the display will blink. Use the DOWN and UP button to select the (Sound mode on) or (Sound mode off). - Page 12 Display Inverse Select the , press the ENTER button and the display will blink. Use the ENTER button to change the display mode between (Display normal) and (Display Inversion, good for installing in the ceilings). Press the ENTER button to setup. Back to the functions without any change press the MENU button.
-
Page 13: How To Control The Unit
Fixture use time Select the , press the ENTER button and the display will show the number of working hours of the unit. To go back to the functions press the MENU button. Software version Select the , press the ENTER button and the display will show the version of software of the unit. - Page 14 Press the MENU button up to when the is showing on the display. Press the ENTER button and the display will blink. Use the DOWN and UP button to change the DMX512 address. Once the address has been selected, press and keep the ENTER button pressed up to when the display stops blinking or storing automatically one minute later.
-
Page 15: Dmx 512 Configurations
5. DMX 512 Configurations 4/5/7 Channels Mode:... -
Page 16: Dmx 512 Connections
6. DMX 512 Connections 1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit. -
Page 17: Troubleshooting
7. 3 pin XLR connectors are more popular than 5 pin XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin 4/Pin 5: Not used. -
Page 18: Fixture Cleaning
8. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. -
Page 19: Declaration Of Conformity
Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &... - Page 20 Innovation, Quality, Performance...
