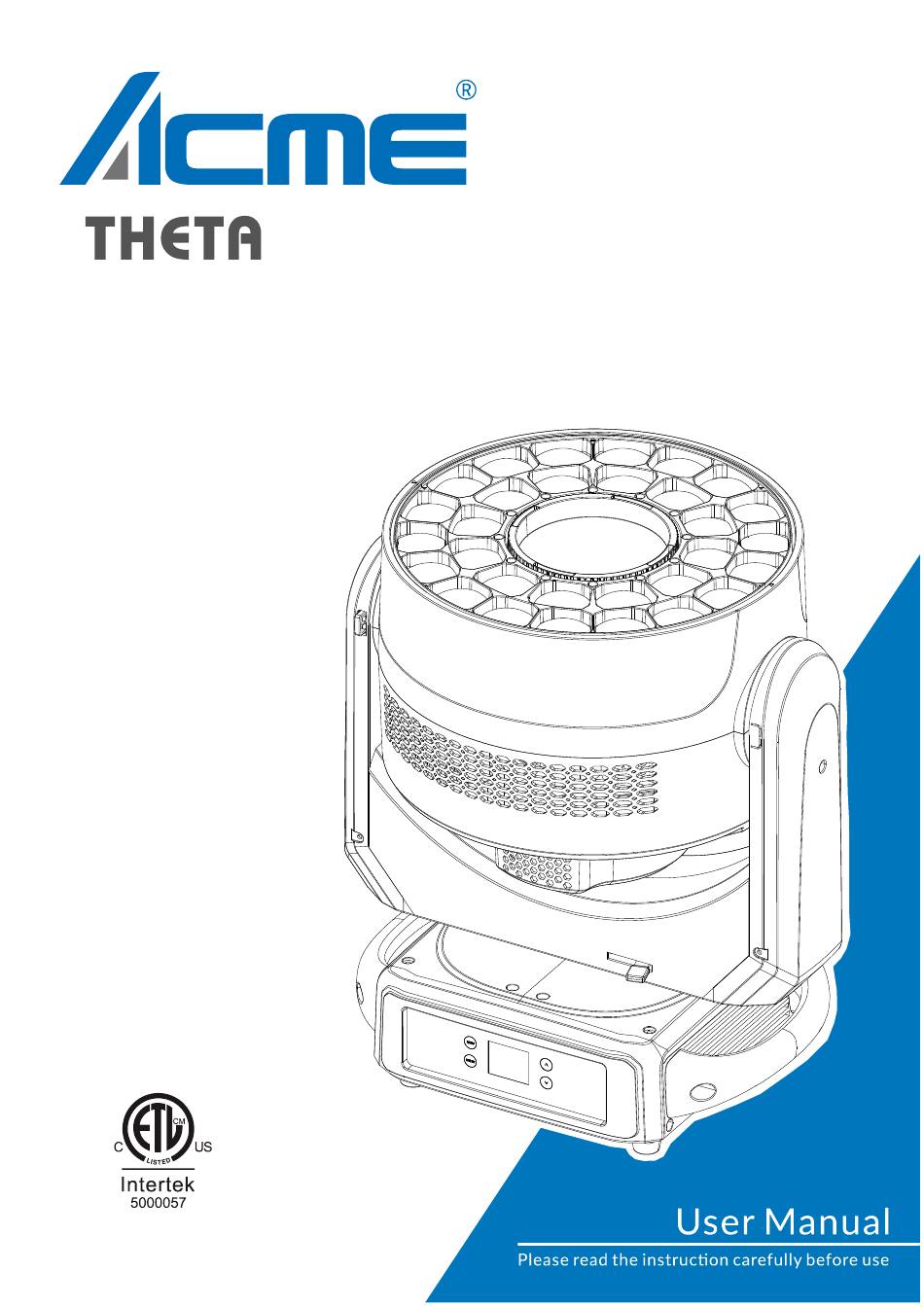

ACME THETA CM 1000ZF User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. THETA CM 1000ZF
  6. User manual

ACME THETA CM 1000ZF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THETA CM 1000ZF and is the answer not in the manual?

Questions and answers

Related Manuals for ACME THETA CM 1000ZF

Summary of Contents for ACME THETA CM 1000ZF

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................6 03/ Control Panel ......................8 04/ Fixture Installation ....................9 05/ Effect Wheels ......................10 06/ How To Set The Unit .................... 11 6.1 Main Functions ....................11 6.2 Home Position Adjustment ................. 27 07/ Control By Universal DMX Controller ..............

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 pour éviter tout risque d'incendie. Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 65℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil.

  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 1600W 1x200W CW LED Light Source 30x40W RGBW LED Beam Angle 3° Zoom Range 4°-51° 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed Color Wheel 13 colors + open with rainbow effect Gobo Wheel Static Gobo Wheel 9 gobos + open...
  • Page 8 Motorized focus Motorized zoom Independent frost effect 2 x prisms: 8-facet prism + 16-facet prism, capable of bidirectional rotation and superposition Features Variable CTO Pixel control, outstanding color macro effect With color correction system to ensure consistent color output Powerful beam and wash effects Dimensions 453.7x341x589.4mm 17.9"x13.4"x23.2"in...

  • Page 9: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.

  • Page 11: 05/ Effect Wheels

    05/ Effect Wheels DANGER! Install the color wheel / gobo wheel with the device switched off only. Unplug from mains before changing the color wheel / gobo wheel! - 10 -...

  • Page 12: 06/ How To Set The Unit

    06/ How To Set The Unit 6.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 13 MENU SUBMENU OPTIONS Network to DMX Pan Invert Tilt Invert P/T Feedback Linear Square Law Dimmer Curve Inv SQ Law S Curve Fast Dimmer Speed Smooth LED Red Zone 1 125-255 LED Green Zone 1 125-255 LED Blue Zone 1 125-255 LED Red Zone 2 125-255...
  • Page 14 MENU SUBMENU OPTIONS 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz LED Refresh Rate 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz Auto Cooling Mode Quiet Invert Pixel Order Color Calibration Hi CRI Calibration Mode Hi Output Enable Gobo Short Cut Disable Enable Color Short Cut...
  • Page 15 MENU SUBMENU OPTIONS Single Auto Test Cycle Mode 1 Mode 2 Clear No/Yes Clear No/Yes 0-255 0-255 Tilt 0-255 Tilt 0-255 X/Y Speed 0-255 X/Y Speed 0-255 All Dimmer 0-255 All Dimmer 0-255 Beam Beam 0-255 0-255 Strobe Strobe Wash Wash 0-255 0-255...
  • Page 16 MENU SUBMENU OPTIONS Fixture Use Hour Total LED Hour LED Use Hour LED On Hour LED Hours Reset Password=050 Current Max LED 1 Temperature LED’s LED 2 LED 3 Fixture Information LED 4 Upgrade File B_FAN 1-4 Fan State H_FAN 1-5 Firmware Version RDM UID Fixture Errors...
  • Page 17 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select Port A Address, Port B Address, DMX Channel Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings, sACN Settings or Network to DMX. Port A Address Select Port A Address, press ENTER.
  • Page 18 No DMX Status Select No DMX Status, press ENTER. Use UP/DOWN button to select one of the following status: Blackout (Fixture blacks out if DMX signal stops) Hold (The device continues to operate in the current mode with the last active DMX values until the signal returns) Manual (The device accepts the DMX value stored in the ‘Manual Test’...
  • Page 19 sACN Settings Select sACN Settings, press ENTER. Use UP/DOWN button to select Universe or Priority, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Network to DMX Select Network to DMX, press ENTER. Use UP/DOWN button to select No or Yes, confirm your selection with ENTER.
  • Page 20 P/T Feedback Select P/T Feedback, press ENTER. Use UP/DOWN button to select No (pan/tilt feedback deactivated) or Yes (pan/tilt feedback activated), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Dimmer Curve Select Dimmer Curve, press ENTER. Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S Curve, confirm your selection with ENTER.
  • Page 21 LED Refresh Rate Select LED Refresh Rate, press ENTER. Use UP/DOWN button to select 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, 10KHz, 15KHz, 20KHz or 25KHz, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Cooling Mode Select Cooling Mode, press ENTER.
  • Page 22 Gobo Short Cut Select Gobo Short Cut, press ENTER. Use UP/DOWN button to select Enable or Disable, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Color Short Cut Select Color Short Cut, press ENTER. Use UP/DOWN button to select Enable or Disable, confirm your selection with ENTER.
  • Page 23 Fixture Test Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to select Auto Test or Manual Test. Auto Test Select Auto Test, press ENTER. Use UP/DOWN button to select Single (the device immediately performs a single automatic self-test) or Cycle (the device immediately performs a cyclic automatic self-test), confirm your selection with ENTER.
  • Page 24 LED Use Hour Select LED Use Hour, press ENTER. Use UP/DOWN button to select Total LED Hour (total time) or LED On Hour (current switch-on time), confirm your selection with ENTER. The total time or current switch-on time is displayed. Use UP/DOWN button to select LED Hours Reset, confirm your selection with ENTER.
  • Page 25 Error Logs Select Error Logs, press ENTER. Use UP/DOWN button to select Fixture Errors, confirm your selection with ENTER. The error list is displayed. Use UP/DOWN button to select Reset Error Log, confirm your selection with ENTER. If you wish to reset the relevant error logs, select Yes. If you do not wish to reset anything, select No.
  • Page 26 All Reset Select All Reset, press ENTER. Use UP/DOWN button to select No or Yes (the device will run built-in program to reset all to their home positions), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Special Function Enter the control menu and select Special Function, press ENTER.
  • Page 27 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 28: Home Position Adjustment

    6.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 29 Frequency(Hz) Select Frequency(Hz), press ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Frequency VALUES 900Hz 772~1027 1000Hz 872~1127 1100Hz 972~1227 1200Hz 1072~1327 1300Hz 1172~1427 1400Hz 1272~1527 1500Hz...
  • Page 30 Color Select Color, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Gobo Select Gobo, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 31 16 R-Prism Select 16 R-Prism, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Frost Select Frost, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 32 Select Red, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Green Select Green, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER.
  • Page 33 Green 1 Select Green 1, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Blue 1 Select Blue 1, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER.
  • Page 34 Blue 30 Select Blue 30, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. White 30 Select White 30, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER.

  • Page 35: 07/ Control By Universal Dmx Controller

    07/ Control By Universal DMX Controller 7.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 36: Address Setting

    7.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.
  • Page 37 CHANNEL VALUE FUNCTION 19+ch 27ch 139ch 19+ ch (Controlled by DMX) 0°540° 000-255 000-255 PAN FINE TILT 0°210° 000-255 000-255 TILT FINE PAN/TILT SPEED 000-255 Fast to Slow DIMMER (BEAM & WASH) 000-255 0%100% BEAM STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139...
  • Page 38 080-089 Null 090-099 Null 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-122 Null 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10KHz 15KHz 20KHz 25KHz 138-139 Null 140-149 Pan/Tilt Reset 150-159 Effect Reset 160-169 Color Calibration: On 170-179 Color Calibration: Off...
  • Page 39 028-031 Color 6 032-039 Color 7 040-043 Color 8 044-047 Color 9 048-051 Color 10 052-055 Color 11 056-059 Color 12 060-063 Color 13 Open Open+Color 1 Color 1 Color 1+Color 2 Color 2 Color 2+Color 3 Color 3 Color 3+Color 4 Color 4 Color 4+Color 5 Color 5...
  • Page 40 044-049 Gobo 7 050-055 Gobo 8 056-063 Gobo 9 064-070 Gobo 1 Shaking, Slow to Fast 071-077 Gobo 2 Shaking, Slow to Fast 078-084 Gobo 3 Shaking, Slow to Fast 085-091 Gobo 4 Shaking, Slow to Fast 092-098 Gobo 5 Shaking, Slow to Fast 099-105 Gobo 6 Shaking, Slow to Fast 106-112...
  • Page 41 000-255 0%100% WASH CCT Null 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022 7600K 023-027 7500K 028-031 7400K 032-036 7300K 037-040 7200K 041-045 7100K 046-049 7000K 050-054 6900K 055-058 6800K 059-063 6700K 064-067 6600K 068-072 6500K 073-076 6400K 077-081 6300K 082-085 6200K...
  • Page 42 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243 2700K 244-247 2600K 248-255 2500K WASH COLOR MACRO 000-007 Null 008-015 Color 1 016-023 Color 2 024-031 Color 3 032-039 Color 4 040-047 Color 5 048-055...
  • Page 43 008-015 Ring 1 (outer ring) 016-023 Ring 2 (inner ring) 024-031 Built-in Effect 1 032-039 Built-in Effect 2 040-047 Built-in Effect 3 048-055 Built-in Effect 4 056-063 Built-in Effect 5 064-071 Built-in Effect 6 072-079 Built-in Effect 7 080-087 Built-in Effect 8 088-095 Built-in Effect 9 096-103...
  • Page 44 000-255 0%100% WASH GREEN 2 000-255 0%100% WASH BLUE 2 0%100% 000-255 WASH WHITE 2 000-255 0%100% WASH RED 3 000-255 0%100% WASH GREEN 3 000-255 0%100% WASH BLUE 3 000-255 0%100% WASH WHITE 3 000-255 0%100% WASH RED 4 000-255 0%100% WASH GREEN 4...
  • Page 45 WASH BLUE 7 0%100% 000-255 WASH WHITE 7 000-255 0%100% WASH RED 8 000-255 0%100% WASH GREEN 8 0%100% 000-255 WASH BLUE 8 000-255 0%100% WASH WHITE 8 000-255 0%100% WASH RED 9 000-255 0%100% WASH GREEN 9 000-255 0%100% WASH BLUE 9 000-255 0%100%...
  • Page 46 WASH RED 13 0%100% 000-255 WASH GREEN 13 000-255 0%100% WASH BLUE 13 000-255 0%100% WASH WHITE 13 0%100% 000-255 WASH RED 14 000-255 0%100% WASH GREEN 14 000-255 0%100% WASH BLUE 14 000-255 0%100% WASH WHITE 14 000-255 0%100% WASH RED 15 000-255 0%100%...
  • Page 47 WASH BLUE 18 0%100% 000-255 WASH WHITE 18 000-255 0%100% WASH RED 19 000-255 0%100% WASH GREEN 19 0%100% 000-255 WASH BLUE 19 000-255 0%100% WASH WHITE 19 000-255 0%100% WASH RED 20 000-255 0%100% WASH GREEN 20 000-255 0%100% WASH BLUE 20 000-255 0%100%...
  • Page 48 WASH RED 24 0%100% 000-255 WASH GREEN 24 000-255 0%100% WASH BLUE 24 000-255 0%100% WASH WHITE 24 0%100% 000-255 WASH RED 25 000-255 0%100% WASH GREEN 25 000-255 0%100% WASH BLUE 25 000-255 0%100% WASH WHITE 25 000-255 0%100% WASH RED 26 000-255 0%100%...
  • Page 49 WASH BLUE 29 0%100% 000-255 WASH WHITE 29 000-255 0%100% WASH RED 30 000-255 0%100% WASH GREEN 30 0%100% 000-255 WASH BLUE 30 000-255 0%100% WASH WHITE 30 000-255 0%100% LED PIXEL ZONES: - 48 -...

  • Page 50: 08/ Error Information

    08/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B/C/D/E/F/G/H/I/J Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 51 Wash Too Hot Off When leds’ temperature reaches 83℃, they will automatically turn off to protect the fixture. Beam Too Hot Off When the beam temperature reaches 75℃, it will automatically turn off to protect the fixture. Pan Reset Error Check whether the position of the pan where the magnet is installed falls off or is damaged.
  • Page 52 Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 53 Color Reset Error Check whether the position of the color wheel where the magnet is installed falls off or is damaged. Check whether there are obstacles in the color wheel operating range. Check whether the Hall element on the color wheel is damaged. Check whether the lead connecting the Hall element on the color wheel and the PCB board is in poor contact or disconnected.
  • Page 54 8 Prism/16 Prism Reset Error Check whether the position of the 8 prism/16 prism where the magnet is installed falls off or is damaged. Check whether there are obstacles in the 8 prism/16 prism operating range. Check whether the Hall element on the 8 prism/16 prism is damaged. Check whether the lead connecting the Hall element on the 8 prism/16 prism and the PCB board is in poor contact or disconnected.
  • Page 55 Frost Reset Error Check whether the position of the frost where the magnet is installed falls off or is damaged. Check whether there are obstacles in the frost operating range. Check whether the Hall element on the frost is damaged. Check whether the lead connecting the Hall element on the frost and the PCB board is in poor contact or disconnected.
  • Page 56 Zoom Reset Error Check whether the position of the zoom where the magnet is installed falls off or is damaged. Check whether there are obstacles in the zoom operating range. Check whether the Hall element on the zoom is damaged. Check whether the lead connecting the Hall element on the zoom and the PCB board is in poor contact or disconnected.

  • Page 57: 09/ Troubleshooting

    09/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work  Check the connected power.  Measure the voltage. ...
  • Page 58 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015+A1: 2020; EN 55035: 2017+A11: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A3: 2021.
