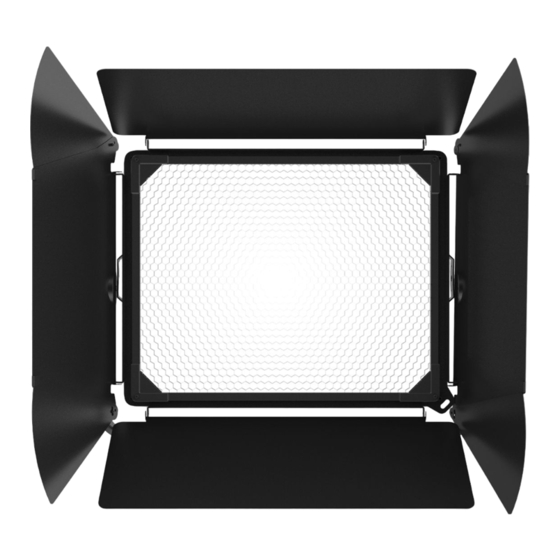

Summary of Contents for ACME TV LIGHT PANEL 2000

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3 Control Panel ....................5 4. The Plate for Barn Door Installation ............... 6 5. How To Set The Unit ..................6 5.1 Main Function ..................6 6. Control By Universal DMX Controller ............11 6.1 DMX512 Connection ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 Disconnect mains power before fuse replacement or servicing.  Replace fuse only with the same type.  In the event of serious operating problem, stop using the unit immediately.  Never turn on and off the unit time after time. ...

  • Page 5: Technical Specifications

    Data In/Out: 5-pin XLR (3-pin XLR is optional) Power In/Out: Power Connector in Protection Rating: IP20 Features: With outstanding floodlight and soft light, TV LIGHT PANEL 2000 are widely applied to photographic studio, TV station, conference room, shopping mall; Access to buttery.

  • Page 6: Control Panel

    Dimension/Weight: 668x148x491mm, 13kgs 26.3"x5.8"x19.3"in, 28.7lbs Photometrics Diagram: 3 Control Panel 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER...

  • Page 7: The Plate For Barn Door Installation

    3. DIMMER: Adjust the dimmer 4. FUSE(T 5A): Protects the unit from over-voltage or short circuit 5. MAINS IN: To connect to supply power 6. BATTERY (DC 48V): Connects to external battery 7. DMX OUT: Use 5-pin XLR cable to link the next units (3-pin XLR is optional) 8.
  • Page 9 DMX Setting To select DMX Setting, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, Art-Net Setup or Channel Mode. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 10 Optically Linear: The increase in light intensity appears to be linear as DMX value is increased. Square Law: Light intensity control is finer at low levels and coarser at high levels. Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 11 Backlight Auto Off Select Backlight Auto Off, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Invert Display Select Invert Display, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select No (normal display) or Yes (invert display), press the ENTER button...

  • Page 12: Control By Universal Dmx Controller

    Factory Setting Select Factory Setting, press the ENTER button to confirm, use the UP/DOWN button to select No(normal) or Yes(the fixture will reset to factory settings), press ENTER button to store. Press the MENU button to exit. 6. Control By Universal DMX Controller 6.1 DMX512 Connection 1.

  • Page 13: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Setting, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blinking the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 14 2A Channels (Mode 2): CHANNEL VALUE FUNCTION DIMMER 000-255 0100% STROBE 000-031 032-063 064-095 Strobe: Slow to Fast 096-127 128-159 Strobe Pulse: Fast to Slow 160-191 192-223 Random Strobe 224-255 2B Channels (Mode 3): CHANNEL VALUE FUNCTION DIMMER 000-255 0%100% 000-255 DIMMER FINE 3 Channels (Mode 4):...

  • Page 15: Troubleshooting

    7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work and no light 1. Check the connect power and main fuse. 2. Measure the mains voltage on the main connector. 3.
  • Page 16 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015; EN 55103-2: 2009; EN 61000-3-2: 2014; EN 61000-3-3: 2013. &...
