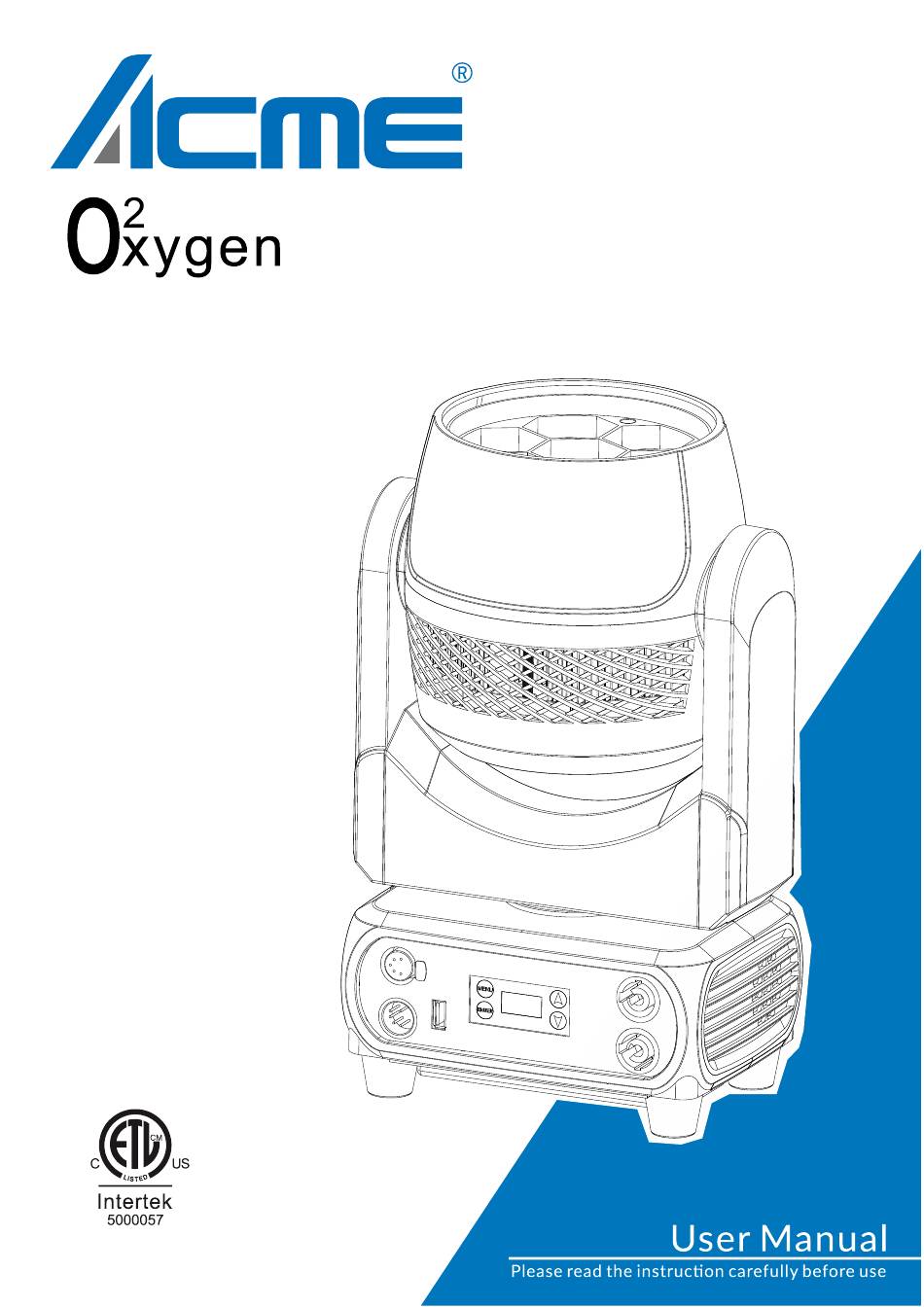

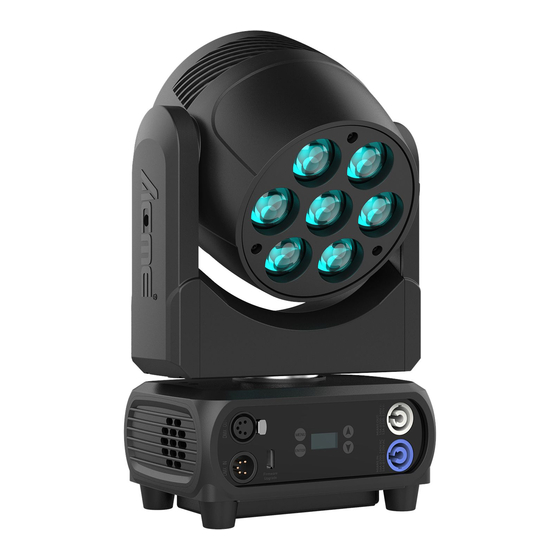

ACME Oxygen User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. Oxygen
  6. User manual

ACME Oxygen User Manual

Hide thumbs Also See for Oxygen:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oxygen and is the answer not in the manual?

Questions and answers

Related Manuals for ACME Oxygen

Summary of Contents for ACME Oxygen

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................6 03/ Control Panel ......................8 04/ Fixture Installation ....................9 05/ How To Set The Unit .................... 11 5.1 Main Functions ....................11 5.2 Home Position Adjustment ................. 25 06/ Control By Universal DMX Controller ..............

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 pour éviter tout risque d'incendie. Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 75℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil.

  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 340W Light Source 7x40W RGBW LED Color Temperature 2500K-8000K Beam Angle 4.5°-36.5° Field Angle 8.5°-56.5° 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed 540° Tilt 230° Movement Pan/Tilt Resolution 16 bit Automatic pan/tilt position correction DMX Channel...
  • Page 8 Photometric Diagram: - 7 -...

  • Page 9: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 11 - 10 -...

  • Page 12: 05/ How To Set The Unit

    05/ How To Set The Unit 5.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 13 MENU SUBMENU OPTIONS 125-255 Green 125-255 Blue 125-255 Red 1 125-255 Green 1 125-255 White Balance Blue 1 125-255 …… …… Red 7 125-255 Green 7 125-255 Blue 7 125-255 Color Calibration High CRI Calibration Mode High Output Secondary Pri/Sec Mode Primary Display Invert °C...
  • Page 14 MENU SUBMENU OPTIONS Pixel 0-255 Green 7 0-255 Pixel Rotating 0-255 Blue 7 0-255 White 7 0-255 Set Scene Totals 0-50 0-255 Green 0-255 Edit Scene Color 1-50 Blue 0-255 White 0-255 Show Program Fade Time 0-255 Hold Time 0-255 Pan POS 0-255 Tilt POS...
  • Page 15 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, Channel Mode, No DMX Status or View DMX Value. DMX Address Select DMX Address, press ENTER. Use UP/DOWN button to select an address, confirm your selection with ENTER.
  • Page 16 View DMX Value Select View DMX Value, press ENTER. Use UP/DOWN button to select the desired DMX channel, for which the value is to be displayed. To exit the menu, press MENU, or wait 30 seconds. Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Pan Invert, Tilt Invert, P/T Feedback, Zoom Invert, Fan Mode, Dimmer Curve, Dimmer Speed, White Balance, Color Calibration, Calibration Mode or Pri/Sec Mode.
  • Page 17 Zoom Invert Select Zoom Invert, press ENTER. Use UP/DOWN button to select No (zoom invert deactivated) or Yes (zoom invert activated), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Fan Mode Select Fan Mode, press ENTER. Use UP/DOWN button to select Auto or Silent, confirm your selection with ENTER.
  • Page 18 White Balance Select White Balance, press ENTER. Use UP/DOWN button to select Red, Green, Blue, Red 1, Green 1, Blue 1 …… or Red 7, Green 7, Blue 7, confirm your selection with ENTER. Use UP/DOWN button to select a value between 125 and 255, confirm your selection with ENTER.
  • Page 19 Display Settings Enter the control menu and select Display Settings, press ENTER. Use the UP/DOWN button to select Display Invert, Temperature Unit, Display Warning or Language. Display Invert Select Display Invert, press ENTER. Use UP/DOWN button to select No (display normal) or Yes (display inverted), confirm your selection with ENTER.
  • Page 20 Manual Test Select Manual Test, press ENTER. Use UP/DOWN button to select the channel for which the manual test is to be performed, confirm your selection with ENTER. Use UP/DOWN button to select a value, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds.
  • Page 21 Fade Time Select Fade Time, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Hold Time Select Hold Time, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 22 Information Enter the control menu and select Information, press ENTER. Use the UP/DOWN button to select Fixture Use Hour, LED Use Hour, Temperature, Fan State, Upgrade File, Firmware Version, RDM UID or Error Logs. Fixture Use Hour Select Fixture Use Hour, press ENTER. The operating hours is displayed.
  • Page 23 Upgrade File Select Upgrade File, press ENTER. The upgrade file is displayed. To exit the menu, press MENU, or wait 30 seconds. Firmware Version Select Firmware Version, press ENTER. The firmware version is displayed. To exit the menu, press MENU, or wait 30 seconds. RDM UID Select RDM UID, press ENTER.
  • Page 24 Reset Functions Enter the control menu and select Reset Functions, press ENTER. Use the UP/DOWN button to select Pan/Tilt Reset, Effect Reset or All Reset. Pan/Tilt Reset Select Pan/Tilt Reset, press ENTER. Use UP/DOWN button to select No or Yes (the device will run built-in program to reset pan/tilt to their home positions), confirm your selection with ENTER.
  • Page 25 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 26: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 27 Select Pan, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Tilt Select Tilt, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 28 Blue Select Blue, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. White Select White, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER.
  • Page 29 Green 7 Select Green 7, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Blue 1 Select Blue 1, press ENTER. Use UP/DOWN button to select a value between 0 and 1000, confirm your selection with ENTER.

  • Page 30: 06/ Control By Universal Dmx Controller

    06/ Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 31: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.
  • Page 32 DIMMER 0%100% 000-255 000-255 DIMMER FINE STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Close Slow Open from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Fast to Slow...
  • Page 33 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198...
  • Page 34 052-055 Color 12 056-059 Color 13 060-063 Color 14 064-067 Color 15 068-071 Color 16 072-075 Color 17 076-079 Color 18 080-083 Color 19 084-087 Color 20 088-091 Color 21 092-095 Color 22 096-099 Color 23 100-103 Color 24 104-107 Color 25 108-111 Color 26...
  • Page 35 068-071 Pattern 17 072-075 Pattern 18 076-079 Pattern 19 080-083 Pattern 20 084-087 Pattern 21 088-091 Pattern 22 092-095 Pattern 23 096-099 Pattern 24 100-103 Pattern 25 104-107 Pattern 26 108-111 Pattern 27 112-115 Pattern 28 116-119 Pattern 29 120-123 Pattern 30 124-127 Pattern 31...
  • Page 36 PIXEL ROTATION 000-031 Null 032-091 Clockwise Rotation, Fast to Slow 092-101 Null 102-161 Counter-Clockwise Rotation, Slow to Fast 162-255 Null FUNCTION 000-029 Null 030-039 Dimmer Curve: Linear 040-049 Dimmer Curve: Square Law 050-059 Dimmer Curve: Inverse Square Law 060-069 Dimmer Curve: S Curve 070-079 Null 080-089...
  • Page 37 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Close Slow Open from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Fast to Slow 248-255 Open RED 1 000-255 0%100% GREEN 1...
  • Page 38 BLUE 5 0%100% 000-255 WHITE 5 000-255 0%100% RED 6 000-255 0%100% GREEN 6 0%100% 000-255 BLUE 6 000-255 0%100% WHITE 6 000-255 0%100% RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% WHITE 7 000-255 0%100% FUNCTION 000-029 Null...
  • Page 39 LED PIXEL SELECT FOR 17-CH: - 38 -...

  • Page 40: 07/ Error Information

    07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B/C/D Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 41 Pan Reset Error Check whether the position of the pan where the magnet is installed falls off or is damaged. Check whether there are obstacles in the pan operating range. Check whether the Hall element on the pan is damaged. Check whether the lead connecting the Hall element on the pan and the PCB board is in poor contact or disconnected.
  • Page 42 Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 43 Zoom Reset Error Check whether the position of the zoom where the magnet is installed falls off or is damaged. Check whether there are obstacles in the zoom operating range. Check whether the Hall element on the zoom is damaged. Check whether the lead connecting the Hall element on the zoom and the PCB board is in poor contact or disconnected.

  • Page 44: 08/ Troubleshooting

    The position of each fan of the fixture: 08/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work ...

  • Page 45: 09/ Fixture Cleaning

    09/ Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
  • Page 46 - 45 -...
  • Page 47 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015+A11: 2020; EN 55035: 2017+A11: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021.
