Summary of Contents for ACME PEXEL 100

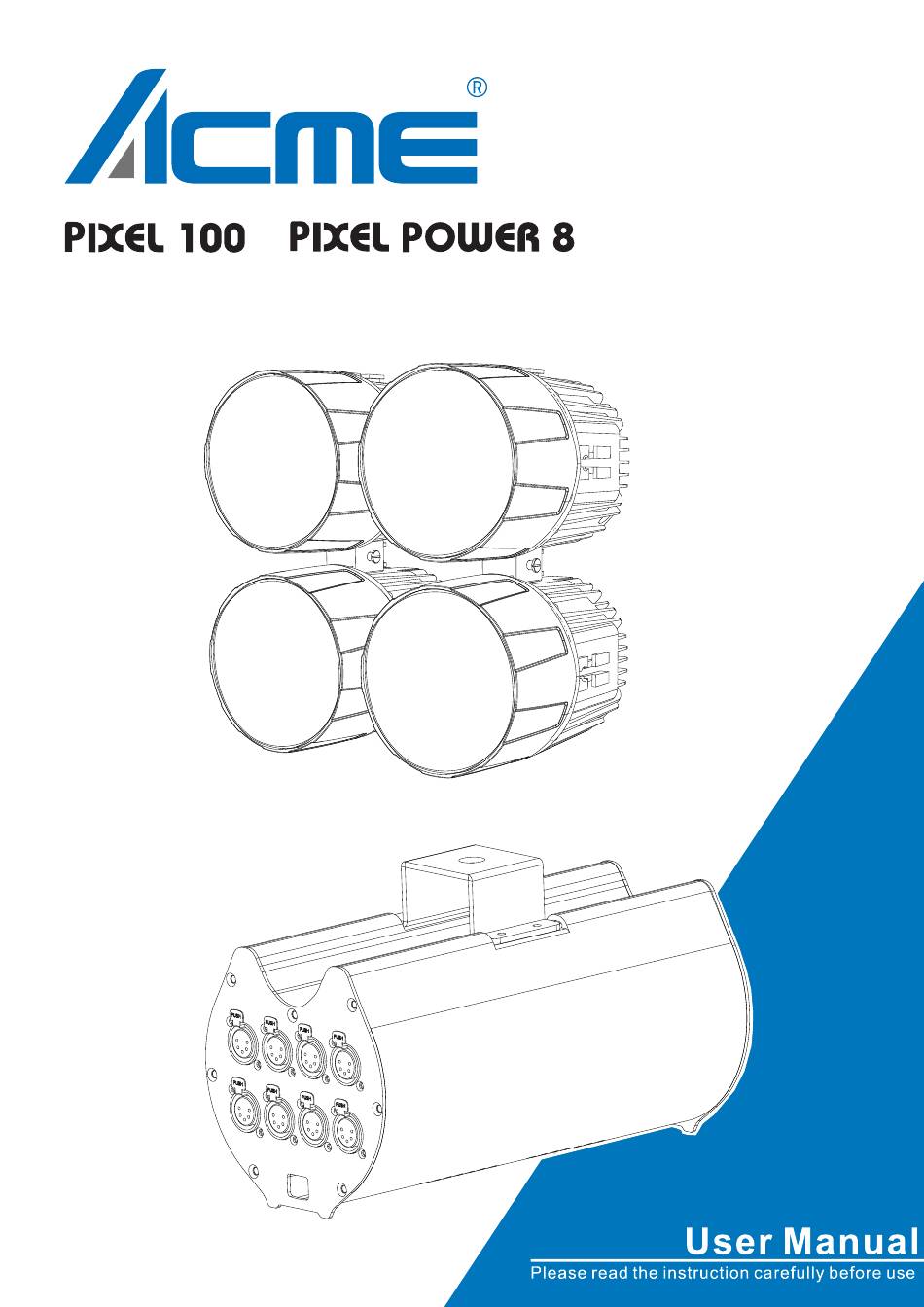

  • Page 1 &...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ....................1 2. Technical Specifications ..................3 3. Control Panel ......................5 4. How To Set The Unit ....................6 4.1 Main Function ....................6 5. Control By Universal DMX Controller ..............13 5.1 DMX512 Connection ..................13 5.2 Address Setting ....................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables.  The minimum distance between light output and the illuminated surface must be more than  0.5 meters.

  • Page 5: Technical Specifications

    2. Technical Specifications Power Voltage: PIXEL 100:DC24V PIXEL POWER 8: 100-240V~ 50/60Hz Power Consumption: PIXEL 8:75W PIXEL POWER 8：530W Light Source: 1 x 80W RGBL 24 x 5050RGB LED Color Temperature: 2500K-8000K Beam Angle: 2.7°-21° Field Amgle: 4.4°-26.3° Dimmer/Shutter: Smooth dimming from 0-100%; outstanding strobe effect with variable speed Control: DMX Channel: 19/103/152 Channels Protocols: DMX512, RDM...

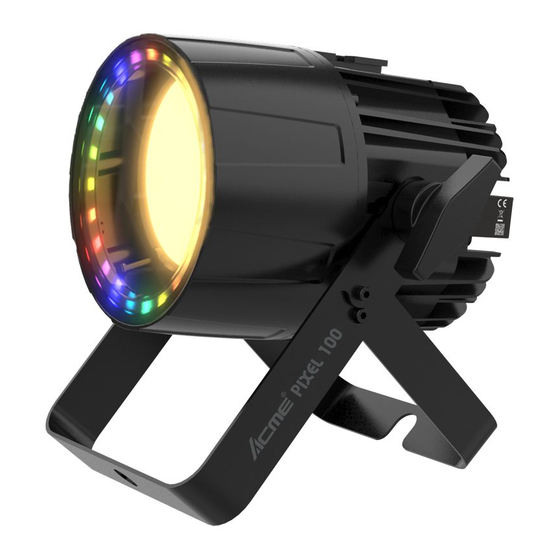

  • Page 6 Features: PIXEL 100: High brightness, energy saving • The light output can reach 8,500 lm at 5 meters distance • Pixel & ring control for backlight on the lens • Compact design, small size, only 1.9kg, passed the 10 times weight load-bearing test •...

  • Page 7: Control Panel

    Photometrics Diagram: 65625 16406 7292 4102 2.7°Lux 1450 21°Lux 3. Control Panel POWERCON Version: PIXEL 100: PIXEL POWER 8: 1 DMX IN:DMX 512 operation, use 3-pin XLR cable to link the next units (5-pin XLR is optional) 2 DISPLAY: To show the various menus and the selected function 3 Button: MENU To enter into move backward or leave the menu...

  • Page 8: How To Set The Unit

    6.WER SWITCH: Turn Power On/off 7.wer Cord (straight-out version) : connected to power supply 8. Safety Tube (T6.3a) : overcurrent protection Power output (POWERCON) : connect the next lamp 4. How To Set The Unit 4.1 Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor.
  • Page 9 001-501(19CH) 001-410(103CH) DMX Address 001-361(152CH) 19Channel 103Channel DMX Channel Mode DMX Settings 152Channel BlackOut No DMX Status Hold Manual Linear Square law Dimmer Curve Inv SQ law S Curve Fast Fixture Settings Dimmer Speed Smooth Red1 Green1 Blue1 Lemon1 Red2 Green2 Blue2 Lemon2...
  • Page 10 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode Or No DMX Status. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 501/306, press the ENTER button to store.
  • Page 11 Optically Linear: The increase in light intensity appears to be linear as DMX value is increased. Square Law: Light intensity control is finer at low levels and coarser at high levels. Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 12 Fan Mode into MENU mode, select fan mode, press ENTER button to confirm, through the UP/DOWN button to choose: automatic, slow or fast, press ENTER button to save. Press the MENU button to go back to the previous MENU or wait 30 seconds to automatically exit MENU mode. Display Settings Enter the MENU mode, To select Display Settings, press the ENTER button to confirm, and use UP/DOWN to select: Display Inversion, Temperature unit, Display Warning or Device Language.
  • Page 13 Fixture Test To select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto Test or Manual Test. Auto Test To select Auto Test, press the ENTER button to confirm, Press the MENU button to return to the previous menu or wait one minute to automatically exit the menu mode.
  • Page 14 To select Total LED Hours, press the ENTER button to confirm, the total number of LED hours will be displayed on the screen, press the MENU button to exit. Select the LED On Time, press the ENTER button to confirm, the LED on time will be displayed on the screen, press the MENU button to exit. Select LED Hour Reset, press ENTER button to confirm, use UP/DOWN button to set password 050 to reset LED time, press ENTER button to save, Press the MENU button to return to the previous menu or wait one minute to automatically exit the menu mode.
  • Page 15 UP/DOWN button to select: no or, press ENTER button to confirm, the display will show the status of the fan, press MENU button to exit. Special Function Special Function To select , press the ENTER button to confirm and lamp use time in Factory Settings can be viewed, press the ENTER button to confirm.

  • Page 16: Control By Universal Dmx Controller

    5. Control By Universal DMX Controller 5.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 17: Dmx512 Configuration

    Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink on the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 18 19channel value function  000-255  000-255 Green  000-255 Blue  000-255 White Color mocro 000-009 No Base Color 010-017 Color1 018-024 Color2 025-032 Color3 033-039 Color4 040-047 Color5 048-054 Color6 055-061 Color7 062-069 Color8 070-076 Color9 077-084 Color10 085-091 Color11 092-099 Color12 100-106 Color13 107-113 Color14...
  • Page 19 016-131 Strobe Slow->Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open Zoom: Zoom adjustment 000‐255 from wide to narrow 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer 000‐255 Backlight_White_Dimmer Backlight_Color mocro 000-009 No Base Color 010-017 Color1 018-024...
  • Page 20 248-255 Color33 Backlight_Dimmer 000‐255 Intensity:Intensity 100% 000‐255 Backlight_Shutter, Strobe: 000-007 Close 008-015 Opne 016-131 Strobe Slow->Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open Backlight_Macro 0-55 No function 56-65 Macro1 Macro2 66-75...
  • Page 21  000-255 Color mocro  000-255  000-255 Zoom  000-255  000-255 Green  000-255 Blue LED2  000-255 White  000-255 Color mocro  000-255  000-255 Zoom  000-255  000-255 Green  000-255 Blue LED3  000-255 White  000-255 Color mocro  000-255  000-255 Zoom  000-255  000-255 Green  000-255 Blue LED4  000-255 White  000-255 Color mocro  000-255  000-255...
  • Page 22  000-255 Zoom  000-255  000-255 Green  000-255 Blue LED8  000-255 White  000-255 Color mocro  000-255  000-255 Zoom Dimmer Intensity:Intensity  000-255 0 to 100%  000-255 Dimmer Fine: 0 to 100% 000‐255 Shutter, Strobe: 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer LED1 000‐255 Backlight_White_Dimmer 000‐255 Backlight_Color mocro 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer LED2 000‐255 Backlight_White_Dimmer...
  • Page 23 000‐255 Backlight_Blue_Dimmer LED7 000‐255 Backlight_White_Dimmer 000‐255 Backlight_Color mocro 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer LED8 000‐255 Backlight_White_Dimmer 000‐255 Backlight_Color mocro Blacklight_Dimmer 000‐255 Intensity:Intensity 100% 000‐255 Backlight_Shutter, Strobe: 000‐255 Backlight_Macro 000‐255 Backlight_Macro_Speed 152channe value function  000-255  000-255 Green  000-255 Blue  000-255 White  000-255 Color mocro  000-255 Dimmer Intensity:Intensity  000-255...
  • Page 24  000-255 White  000-255 Color mocro  000-255 Dimmer Intensity:Intensity  000-255 0 to 100%  000-255 Dimmer Fine: 0 to 100% 000‐255 Shutter, Strobe: Zoom: Zoom adjustment 000‐255 from wide to narrow LED2 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer 000‐255 Backlight_White_Dimmer 000‐255 Backlight_Color mocro Backlight_Dimmer 000‐255 Intensity:Intensity 100% 000‐255 Backlight_Shutter, Strobe: 000‐255 Backlight_Macro 000‐255 Backlight_Macro_Speed  000-255  000-255 Green  000-255...
  • Page 25  000-255 Green  000-255 Blue  000-255 White  000-255 Color mocro  000-255 Dimmer Intensity:Intensity  000-255 0 to 100%  000-255 Dimmer Fine: 0 to 100% 000‐255 Shutter, Strobe: Zoom: Zoom adjustment 000‐255 from wide to narrow LED4 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer 000‐255 Backlight_White_Dimmer 000‐255 Backlight_Color mocro Backlight_Dimmer 000‐255 Intensity:Intensity 100% 000‐255 Backlight_Shutter, Strobe: 000‐255 Backlight_Macro 000‐255 Backlight_Macro_Speed...
  • Page 26 000‐255 Backlight_Macro_Speed  000-255  000-255 Green  000-255 Blue  000-255 White  000-255 Color mocro  000-255 Dimmer Intensity:Intensity  000-255 0 to 100%  000-255 Dimmer Fine: 0 to 100% 000‐255 Shutter, Strobe: Zoom: Zoom adjustment 000‐255 from wide to narrow LED6 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer 000‐255 Backlight_White_Dimmer 000‐255 Backlight_Color mocro Backlight_Dimmer 000‐255 Intensity:Intensity 100% 000‐255 Backlight_Shutter, Strobe: 000‐255...
  • Page 27 000‐255 Backlight_Shutter, Strobe: 000‐255 Backlight_Macro 000‐255 Backlight_Macro_Speed  000-255  000-255 Green  000-255 Blue  000-255 White  000-255 Color mocro  000-255 Dimmer Intensity:Intensity  000-255 0 to 100%  000-255 Dimmer Fine: 0 to 100% 000‐255 Shutter, Strobe: Zoom: Zoom adjustment 000‐255 from wide to narrow LED8 000‐255 Backlight_Red_Dimmer 000‐255 Backlight_Green_Dimmer 000‐255 Backlight_Blue_Dimmer 000‐255 Backlight_White_Dimmer 000‐255 Backlight_Color mocro Backlight_Dimmer 000‐255 Intensity:Intensity...

  • Page 28: Error Information

    7. Error Information 1. Zoom1/2/3/4/5/6/7/8Reset Error eck if the position of the pan mounting magnetic steel falls off or is damaged. Check if there are other interference items in the pan operating range. Check if the pan Hall elements is damaged. Check if the pan Hall elements is in poor contact with the lead of the PCB board or disconnected.

  • Page 29: Troubleshooting

    8. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connect power. 2. Measure the mains voltage on the main connector. 3.
  • Page 32 Innovation, Quality, Performance...
