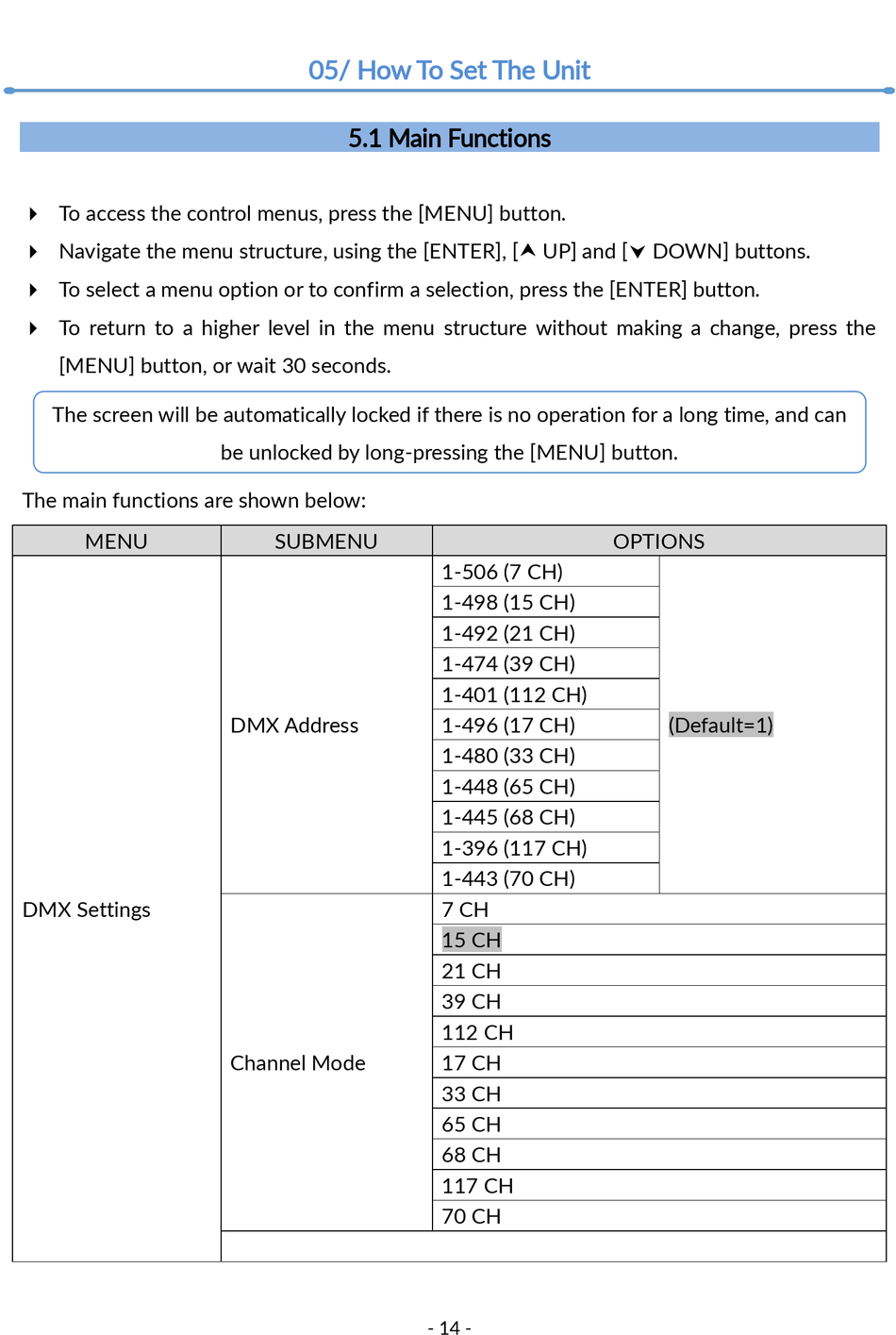

05/ How To Set The Unit; Main Functions - ACME PIXEL LINE IP User Manual

 To access the control menus, press the [MENU] button.
 Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.
 To select a menu option or to confirm a selection, press the [ENTER] button.
 To return to a higher level in the menu structure without making a change, press the
[MENU] button, or wait 30 seconds.
The screen will be automatically locked if there is no operation for a long time, and can
The main functions are shown below:
MENU
DMX Settings

05/ How To Set The Unit

5.1 Main Functions

be unlocked by long-pressing the [MENU] button.
SUBMENU
DMX Address
Channel Mode
1-506 (7 CH)
1-498 (15 CH)
1-492 (21 CH)
1-474 (39 CH)
1-401 (112 CH)
1-496 (17 CH)
1-480 (33 CH)
1-448 (65 CH)
1-445 (68 CH)
1-396 (117 CH)
1-443 (70 CH)
7 CH
15 CH
21 CH
39 CH
112 CH
17 CH
33 CH
65 CH
68 CH
117 CH
70 CH
- 14 -
OPTIONS
(Default=1)
