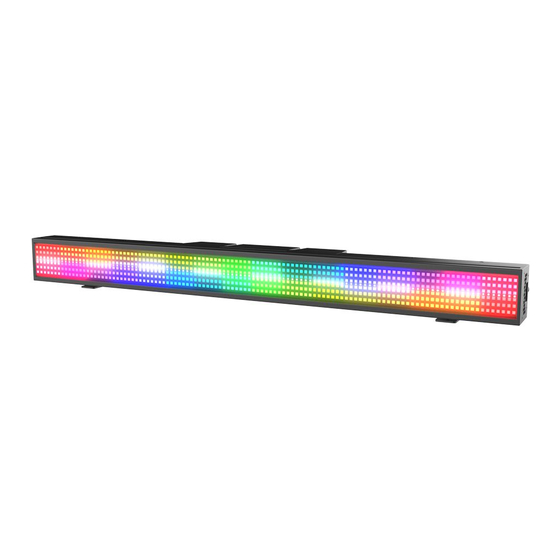

Summary of Contents for ACME PIXEL LINE IP

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................6 03/ Control Panel ......................8 04/ Fixture Installation ....................9 05/ How To Set The Unit .................... 14 5.1 Main Functions ....................14 5.2 Home Position Adjustment ................. 25 06/ Control By Universal DMX Controller ..............

  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 65℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si ...

  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 420W 672x0.5W RGB LED Light Source 112x3W CW LED 101° (RGB) Beam Angle 108° (CW) 149° (RGB) Field Angle 152° (CW) Dimmer/Strobe 0-100% smooth dimming; High output strobe effect 7/15/21/39/112/17/33/65/68/117/70 DMX Channel Channels DMX512 Control...
  • Page 8 2 x fixed clamps for 50mm truss (version with fixed clamps) 1000x192x237mm 39.4"x7.6"x9.3"in (version with fixed clamps) Dimensions 1000x90x124mm 39.4"x3.5"x4.9"in (version without fixed clamps) 8.5kgs 18.7lbs (version with fixed clamps) Weight 7.5kgs 16.5lbs (version without fixed clamps) Version with fixed clamps: Version without fixed clamps: Photometric Diagram: - 7 -...

  • Page 9: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 11 Hanging the fixture: Fix the fixture on a flat level surface (such as the ground or a wall): 1. Drill four expansion screw holes (for M12 expansion screws) on a flat level surface (such as the ground or a wall) according to the size shown in Figure ①. 2.
  • Page 12 Splicing multiple fixtures: Introduction: Steps for splicing the fixtures: 1. Press the reset button and the lock catch will pop up automatically. - 11 -...
  • Page 13 2. Lift the bolt up and rotate it for 90 degrees, then release your hand. 3. Align and splice two fixtures. Lift the bolt up and rotate it for 90 degrees, then release your hand and the bolt will be automatically inserted into the positioning point to lock the two fixtures.
  • Page 14 Steps for installing the omega brackets to the fixture: - 13 -...

  • Page 15: 05/ How To Set The Unit

    05/ How To Set The Unit 5.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 16 MENU SUBMENU OPTIONS Hold No DMX Status Blackout Manual View DMX Value Auto Connect Option Art-Net sACN IP Address XXX.XXX.XXX.XXX Network Subnet Mask XXX.XXX.XXX.XXX 0-127 (Default=0) Art-Net Settings Sub-Net 0-15 (Default =0) Universe 0-15 (Default =0) sACN Universe 1-32000 (Default =1) sACN Settings sACN Priority 0-200...
  • Page 17 MENU SUBMENU OPTIONS Auto Test 0-255 Green 0-255 Blue 0-255 White 0-255 Fixture Test Manual Mode Dimmer 0-255 Dimmer Fine 0-255 Duration 0-255 Rate 0-255 Frost 0-255 Fixture Use Hour Total LED Hour LED Use Hour LED On Hour LED Hours Reset Password=050 Current Max temp...
  • Page 18 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, Channel Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings or sACN Settings. DMX Address Select DMX Address, press ENTER. Use UP/DOWN button to select an address, confirm your selection with ENTER.
  • Page 19 No DMX Status Select No DMX Status, press ENTER. Use UP/DOWN button to select one of the following status: Hold (The device continues to operate in the current mode with the last active DMX values until the signal returns) Blackout (Fixture blacks out if DMX signal stops) Manual (The device accepts the DMX value stored in the ‘Manual Mode’...
  • Page 20 sACN Settings Select sACN Settings, press ENTER. Use UP/DOWN button to select sACN Universe or sACN Priority, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Dimmer Curve, Dimmer Speed, White Balance or Invert Pixel Order.
  • Page 21 White Balance Select White Balance, press ENTER. Use UP/DOWN button to select Red 1, Green 1, Blue 1 or Red 2, Green 2, Blue 2, confirm your selection with ENTER. Use UP/DOWN button to select a value between 125 and 255, confirm your selection with ENTER.
  • Page 22 Language Select Language, press ENTER. Use UP/DOWN button to select English or Chinese, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Fixture Test Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to select Auto Test or Manual Mode.
  • Page 23 Information Enter the control menu and select Information, press ENTER. Use the UP/DOWN button to select Fixture Use Hour, LED Use Hour, Temperature, Fan State, Firmware Version, RDM UID or Error Logs. Fixture Use Hour Select Fixture Use Hour, press ENTER. The operating hours is displayed.
  • Page 24 Firmware Version Select Firmware Version, press ENTER. The firmware version is displayed. To exit the menu, press MENU, or wait 30 seconds. RDM UID Select RDM UID, press ENTER. The RDM UID is displayed. To exit the menu, press MENU, or wait 30 seconds. Error Logs Select Error Logs, press ENTER.
  • Page 25 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 26: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 27 GREEN-A Select GREEN-A, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. BLUE-A Select BLUE-A, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 28 BLUE-B Select BLUE-B, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. WHITE-B Select WHITE-B, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 29 Red 32 Select Red 32, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Green 32 Select Green 32, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.

  • Page 30: 06/ Control By Universal Dmx Controller

    06/ Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 31: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.

  • Page 32: Dmx512 Configuration

    6.3 DMX512 Configuration Please control the fixture by referring to the configurations below. Attentions:  The unit will maintain the last condition until reset if you cut-off the DMX signal. For the channel Function, keep the value for about 3 seconds, then the ...
  • Page 33 025-032 Color 3 033-039 Color 4 040-047 Color 5 048-054 Color 6 055-061 Color 7 062-069 Color 8 070-076 Color 9 077-084 Color 10 085-091 Color 11 092-099 Color 12 100-106 Color 13 107-113 Color 14 114-121 Color 15 122-128 Color 16 129-136 Color 17...
  • Page 34 MACRO (RGB) 000-023 Null 024-031 Macro 1 032-039 Macro 2 040-047 Macro 3 048-055 Macro 4 056-063 Macro 5 064-071 Macro 6 072-079 Macro 7 080-087 Macro 8 088-095 Macro 9 096-103 Macro 10 104-111 Macro 11 112-119 Macro 12 120-127 Macro 13 128-135...
  • Page 35 FROST 0%100% 000-255 21 Channels (Mode 3): CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% COLOR MACRO 000-009 Null 010-017 Color 1 018-024 Color 2 025-032 Color 3 033-039 Color 4 040-047 Color 5 048-054 Color 6 055-061 Color 7 062-069...
  • Page 36 248-255 Color 33 DIMMER (RGB) 000-005 Null 006-255 0%100% 000-255 DIMMER FINE (RGB) 000-255 STROBE DURATION (RGB) STROBE RATE (RGB) 000-006 Blackout 007-255 Strobe from Slow to Fast STROBE (RGB) 000-005 Null 006-050 Ramp up 051-100 Ramp down 101-150 Ramp up-down 151-200 Lightning 201-255...
  • Page 37 240-247 Macro 28 248-255 Macro 29 MACRO SPEED (RGB) 000-127 Normal, Slow to Fast 128-255 Inversion, Slow to Fast FADE (RGB) 000-255 0%100% DIMMER (W) 000-005 Null 006-255 0%100% 000-255 DIMMER FINE (W) 000-255 STROBE DURATION (W) STROBE RATE (W) 000-006 Blackout 007-255...
  • Page 38 39 Channels (Mode 4): CHANNEL VALUE FUNCTION RED 1 000-255 0%100% GREEN 1 0%100% 000-255 BLUE 1 0%100% 000-255 RED 2 000-255 0%100% GREEN 2 0%100% 000-255 BLUE 2 0%100% 000-255 RED 3 000-255 0%100% GREEN 3 0%100% 000-255 BLUE 3 000-255 0%100% RED 4...
  • Page 39 000-255 0%100% RED 8 000-255 0%100% GREEN 8 0%100% 000-255 BLUE 8 000-255 0%100% DIMMER (RGB) 000-005 Null 006-255 0%100% 000-255 DIMMER FINE (RGB) 000-255 STROBE DURATION (RGB) STROBE RATE (RGB) 000-006 Blackout 007-255 Strobe from Slow to Fast STROBE (RGB) 000-005 Null 006-050...
  • Page 40 151-200 Lightning 201-255 Random FROST 000-255 0%100% 112 Channels (Mode 5): CHANNEL VALUE FUNCTION RED 1 000-255 0%100% GREEN 1 000-255 0%100% BLUE 1 000-255 0%100% RED 2 000-255 0%100% GREEN 2 000-255 0%100% BLUE 2 000-255 0%100% RED 3 000-255 0%100% GREEN 3...
  • Page 41 RED 7 0%100% 000-255 GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% RED 8 0%100% 000-255 GREEN 8 000-255 0%100% BLUE 8 000-255 0%100% RED 9 000-255 0%100% GREEN 9 000-255 0%100% BLUE 9 000-255 0%100% RED 10 000-255 0%100% GREEN 10 000-255 0%100%...
  • Page 42 GREEN 14 0%100% 000-255 BLUE 14 000-255 0%100% RED 15 000-255 0%100% GREEN 15 0%100% 000-255 BLUE 15 000-255 0%100% RED 16 000-255 0%100% GREEN 16 000-255 0%100% BLUE 16 000-255 0%100% RED 17 000-255 0%100% GREEN 17 000-255 0%100% BLUE 17 000-255 0%100%...
  • Page 43 BLUE 21 0%100% 000-255 RED 22 000-255 0%100% GREEN 22 000-255 0%100% BLUE 22 0%100% 000-255 RED 23 000-255 0%100% GREEN 23 000-255 0%100% BLUE 23 000-255 0%100% RED 24 000-255 0%100% GREEN 24 000-255 0%100% BLUE 24 000-255 0%100% RED 25 000-255 0%100%...
  • Page 44 RED 29 0%100% 000-255 GREEN 29 000-255 0%100% BLUE 29 000-255 0%100% RED 30 0%100% 000-255 GREEN 30 000-255 0%100% BLUE 30 000-255 0%100% RED 31 000-255 0%100% GREEN 31 000-255 0%100% BLUE 31 000-255 0%100% RED 32 000-255 0%100% GREEN 32 000-255 0%100%...
  • Page 45 WHITE 11 0%100% 000-255 WHITE 12 000-255 0%100% WHITE 13 000-255 0%100% WHITE 14 0%100% 000-255 WHITE 15 000-255 0%100% WHITE 16 000-255 0%100% 17 Channels (Mode 6): CHANNEL VALUE FUNCTION RED 1 0%100% 000-255 GREEN 1 000-255 0%100% BLUE 1 000-255 0%100% RED 2...
  • Page 46 WHITE 3 0%100% 000-255 WHITE 4 000-255 0%100% FROST 000-255 0%100% 33 Channels (Mode 7): CHANNEL VALUE FUNCTION RED 1 000-255 0%100% GREEN 1 000-255 0%100% BLUE 1 000-255 0%100% RED 2 0%100% 000-255 GREEN 2 000-255 0%100% BLUE 2 000-255 0%100% RED 3...
  • Page 47 BLUE 6 0%100% 000-255 RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 0%100% 000-255 RED 8 000-255 0%100% GREEN 8 000-255 0%100% BLUE 8 000-255 0%100% WHITE 1 000-255 0%100% WHITE 2 000-255 0%100% WHITE 3 000-255 0%100% WHITE 4 000-255 0%100%...
  • Page 48 65 Channels (Mode 8): CHANNEL VALUE FUNCTION RED 1 000-255 0%100% GREEN 1 0%100% 000-255 BLUE 1 0%100% 000-255 RED 2 000-255 0%100% GREEN 2 0%100% 000-255 BLUE 2 0%100% 000-255 RED 3 000-255 0%100% GREEN 3 0%100% 000-255 BLUE 3 000-255 0%100% RED 4...
  • Page 49 000-255 0%100% RED 8 000-255 0%100% GREEN 8 0%100% 000-255 BLUE 8 000-255 0%100% RED 9 000-255 0%100% GREEN 9 000-255 0%100% BLUE 9 000-255 0%100% RED 10 000-255 0%100% GREEN 10 000-255 0%100% BLUE 10 000-255 0%100% RED 11 000-255 0%100% GREEN 11...
  • Page 50 RED 15 0%100% 000-255 GREEN 15 000-255 0%100% BLUE 15 000-255 0%100% RED 16 0%100% 000-255 GREEN 16 000-255 0%100% BLUE 16 000-255 0%100% WHITE 1 000-255 0%100% WHITE 2 000-255 0%100% WHITE 3 000-255 0%100% WHITE 4 000-255 0%100% WHITE 5 000-255 0%100%...
  • Page 51 FROST 0%100% 000-255 68 Channels (Mode 9): CHANNEL VALUE FUNCTION DIMMER 000-005 Null 006-255 0%100% STROBE (RGB) 000-007 Null 008-127 Strobe from Slow to Fast 128-130 Null 131-250 Random 251-255 Null STROBE (W) 000-007 Null 008-127 Strobe from Slow to Fast 128-130 Null 131-250...
  • Page 52 000-255 0%100% BLUE 4 000-255 0%100% RED 5 0%100% 000-255 GREEN 5 000-255 0%100% BLUE 5 000-255 0%100% RED 6 000-255 0%100% GREEN 6 000-255 0%100% BLUE 6 000-255 0%100% RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% RED 8...
  • Page 53 BLUE 11 0%100% 000-255 RED 12 000-255 0%100% GREEN 12 000-255 0%100% BLUE 12 0%100% 000-255 RED 13 000-255 0%100% GREEN 13 000-255 0%100% BLUE 13 000-255 0%100% RED 14 000-255 0%100% GREEN 14 000-255 0%100% BLUE 14 000-255 0%100% RED 15 000-255 0%100%...
  • Page 54 WHITE 7 0%100% 000-255 WHITE 8 000-255 0%100% WHITE 9 000-255 0%100% WHITE 10 0%100% 000-255 WHITE 11 000-255 0%100% WHITE 12 000-255 0%100% WHITE 13 000-255 0%100% WHITE 14 000-255 0%100% WHITE 15 000-255 0%100% WHITE 16 000-255 0%100% 117 Channels (Mode 10): CHANNEL VALUE...
  • Page 55 BLUE 1 0%100% 000-255 RED 2 000-255 0%100% GREEN 2 000-255 0%100% BLUE 2 0%100% 000-255 RED 3 000-255 0%100% GREEN 3 000-255 0%100% BLUE 3 000-255 0%100% RED 4 000-255 0%100% GREEN 4 000-255 0%100% BLUE 4 000-255 0%100% RED 5 000-255 0%100%...
  • Page 56 RED 9 0%100% 000-255 GREEN 9 000-255 0%100% BLUE 9 000-255 0%100% RED 10 0%100% 000-255 GREEN 10 000-255 0%100% BLUE 10 000-255 0%100% RED 11 000-255 0%100% GREEN 11 000-255 0%100% BLUE 11 000-255 0%100% RED 12 000-255 0%100% GREEN 12 000-255 0%100%...
  • Page 57 GREEN 16 0%100% 000-255 BLUE 16 000-255 0%100% RED 17 000-255 0%100% GREEN 17 0%100% 000-255 BLUE 17 000-255 0%100% RED 18 000-255 0%100% GREEN 18 000-255 0%100% BLUE 18 000-255 0%100% RED 19 000-255 0%100% GREEN 19 000-255 0%100% BLUE 19 000-255 0%100%...
  • Page 58 BLUE 23 0%100% 000-255 RED 24 000-255 0%100% GREEN 24 000-255 0%100% BLUE 24 0%100% 000-255 RED 25 000-255 0%100% GREEN 25 000-255 0%100% BLUE 25 000-255 0%100% RED 26 000-255 0%100% GREEN 26 000-255 0%100% BLUE 26 000-255 0%100% RED 27 000-255 0%100%...
  • Page 59 RED 31 0%100% 000-255 GREEN 31 000-255 0%100% BLUE 31 000-255 0%100% RED 32 0%100% 000-255 GREEN 32 000-255 0%100% BLUE 32 000-255 0%100% WHITE 1 000-255 0%100% WHITE 2 000-255 0%100% WHITE 3 000-255 0%100% WHITE 4 000-255 0%100% WHITE 5 000-255 0%100%...
  • Page 60 70 Channels (Mode 11): CHANNEL VALUE FUNCTION DIMMER 000-005 Null 006-255 0%100% STROBE (RGB) 000-007 Null 008-127 Strobe from Slow to Fast 128-130 Null 131-250 Random 251-255 Null STROBE (W) 000-007 Null 008-127 Strobe from Slow to Fast 128-130 Null 131-250 Random 251-255...
  • Page 61 RED 5 0%100% 000-255 GREEN 5 000-255 0%100% BLUE 5 000-255 0%100% RED 6 0%100% 000-255 GREEN 6 000-255 0%100% BLUE 6 000-255 0%100% RED 7 000-255 0%100% GREEN 7 000-255 0%100% BLUE 7 000-255 0%100% RED 8 000-255 0%100% GREEN 8 000-255 0%100%...
  • Page 62 GREEN 12 0%100% 000-255 BLUE 12 000-255 0%100% RED 13 000-255 0%100% GREEN 13 0%100% 000-255 BLUE 13 000-255 0%100% RED 14 000-255 0%100% GREEN 14 000-255 0%100% BLUE 14 000-255 0%100% RED 15 000-255 0%100% GREEN 15 000-255 0%100% BLUE 15 000-255 0%100%...
  • Page 63 WHITE 9 0%100% 000-255 WHITE 10 000-255 0%100% WHITE 11 000-255 0%100% WHITE 12 0%100% 000-255 WHITE 13 000-255 0%100% WHITE 14 000-255 0%100% WHITE 15 000-255 0%100% WHITE 16 000-255 0%100% FADE (RGB) 000-255 0%100% FADE (W) 000-255 0%100% - 62 -...
  • Page 64 LED PIXEL ZONES: - 63 -...

  • Page 65: 07/ Error Information

    07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. LED Fan Error Check whether the fan is not running. Check whether the fan leads are installed in place or disconnected. Check whether the fan is damaged.

  • Page 66: 08/ Troubleshooting

    08/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work  Check the connected power.  Measure the voltage. ...
  • Page 67 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015+A11: 2020; EN 55035: 2017+A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A1: 2019. &...
