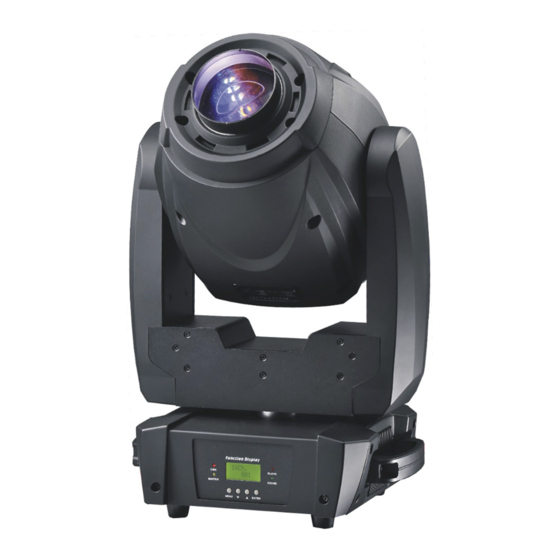

ACME LED Move 600SE User Manual

ACME LED Move 600SE User Manual

Professional led moving head

Advertisement

LED‐MS600SE



User Guide
Professional LED Moving Head

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Move 600SE and is the answer not in the manual?

Questions and answers

Summary of Contents for ACME LED Move 600SE

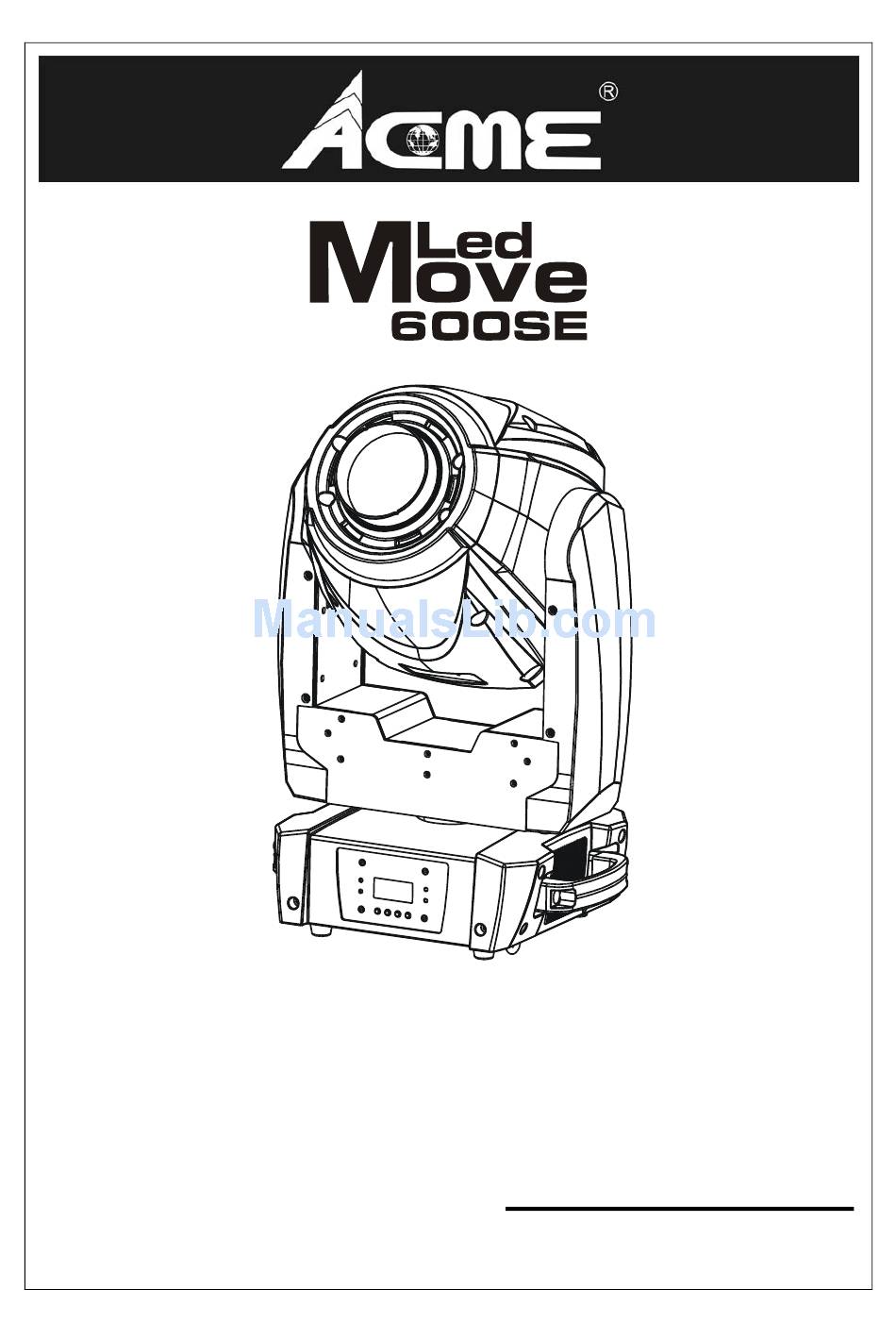

  • Page 1 LED‐MS600SE                                          User Guide  Professional LED Moving Head...
  • Page 2: Table Of Contents

    CONTENTS    1. Safety Instruction....................2  2. Technical Specifications ..................3  3. How To Set The Unit ..................4  3.1 Control Panel ....................4  3.2 Gobo Wheel....................5  3.3 Main Function.....................6  3.4 Home Position Adjustment...............11  4. Control By Universal DMX Controller .............14  4.1 DMX 512 Connection................14  4.2 DMX Address Setting ................15  4.3 DMX512 Configuration ................16  5. Troubleshooting....................18  6. Fixture Cleaning....................20 ...
  • Page 3: Safety Instruction

      1. Safety Instruction    Please read carefully the instruction, which includes important  information about the installation, usage and maintenance.  WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure  that they also receive this instruction manual.  Important:  Damages caused by the disregard of this user manual are not subject to warranty. The  dealer will not accept liability for any resulting defects or problems.  Unpack and check carefully that there is no transportation damage before using the unit.  The unit is for indoor use only. Use only in a dry location.  DO install and operate by qualified operator.  DO NOT allow children to operate the fixture.  Use  safety  chain  when  fixing  the  unit.  Handle  the  unit  by  carrying  its  base  instead  of  head  only.  The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent  surfaces.    Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.  Before  operating,  ensure  that  the  voltage  and  frequency  of  power  supply  match  the  power  requirements of the unit. ...
  • Page 4: Technical Specifications

    off the mains power immediately.  DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables.  The minimum distance between light output and the illuminated surface must be more than  2.5   meters.   Disconnect mains power before fuse/lamp replacement or servicing.  Replace fuse/lamp only with the same type.  In the event of serious operating problem, stop using the unit immediately.    Never turn on and off the unit time after time.  The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.  DO NOT open the unit as there are no user serviceable parts inside.  Never  try  to  repair  the  unit  by  yourself.  Repairs  carried  out  by  unskilled  people  can  lead  to  damage  or  malfunction.  Please  contact  the  nearest  authorized  technical  assistance  center  if  needed. ...
  • Page 5: How To Set The Unit

    Motorized focus by DMX control  Automatic Pan/Tilt position correction  Excellent ventilation, ensuring reliable operation  Voltage:                                    AC 100‐240V~50/60Hz  Power consumption:                  226W  Light Source:                               1 x150W LED  Fuse: ...
  • Page 6: Gobo Wheel

    Button: ③      MENU    To select the programming functions    DOWN    To go backward in the selected functions    UP    To go forward in the selected functions    ENTER    To confirm the selected functions  Only For Remote Control: ④     Connecting with CA‐8/CA‐9 RTX to control the unit for Stand by, Function and Mode function.    DMX input/output: ⑤    For DMX512 link, use 3/5‐pin XLR plug cable to link the unit together.  Mains input: ⑥    Connect to supply mains power.  Mains output: ⑦    Connect to supply mains power for the next unit.  3.2 Gobo Wheel    DANGER!  Install the gobos with the device switched off only. ...
  • Page 7: Main Function

    3.3 Main Function    To  select  any  of  the  given  functions,  press  the  MENU  button  up  to  when  the  required  one  is  showing on the display. Select the function by ENTER button and the display will blink. Use DOWN  and  UP  button  to  change  the  mode.  Once  the  required  mode  has  been  selected,  Press  ENTER  button to store. Back to the main functions without any change press the MENU button or wait for  8 seconds.    Hold MENU button to quit menu mode, the unit will run the built‐in program you selected. ...
  • Page 9 DMX Address  Select  DMX  Address,  press  the  ENTER  button  to  confirm,  the  present  address  will  blink  on  the  display. Use the UP and DOWN button to adjust the address from 1 to 512. Once the address has  been selected, press the ENTER button to setup, to go back to the functions without any change  press the MENU button again. Hold and press the MENU button about one second or wait for one  minute to exit the menu mode.    Channel Mode  Select Channel Mode, press the ENTER button to confirm, present mode will blink on the display.  Use  the  DOWN  and  UP  button  to  select  the  14  Ch  or  15  Ch  Mode.  Once  the  mode  has  been  selected, press the ENTER button to setup, to go back to the functions without any change press ...
  • Page 10 Blackout Mode    Select Blackout Mode, press the ENTER button to confirm, present mode will blink on the display.  Use the DOWN and UP button to select the M/S (Master/Slave), Hold or Blackout Mode. Once the  mode has been selected, press the ENTER button to setup, to go back to the functions without any  change press the MENU button again. Hold and press the MENU button about one second or wait  for one minute to exit the menu mode.    Sound State  Select Sound State, press the ENTER button to confirm, present mode will blink on the display. Use  the DOWN and UP button to select the On (sound on) or Off (sound off) mode. Once the mode  has been selected, press the ENTER button to setup, to go back to the functions without any  change press the MENU button again. Hold and press the MENU button about one second or wait  for one minute to exit the menu mode.    Sound Sense  Select Sound Sense, press the ENTER button to confirm, present mode will blink on the display.  Use the DOWN and UP button to change the sound sense from 0 …100. Once the mode has been  selected, press the ENTER button to setup, to go back to the functions without any change press  the  MENU  button  again.  Hold  and  press  the  MENU  button  about  one  second  or  wait  for  one  minute to exit the menu mode.    Pan Inverse  Select Pan Inverse, press the ENTER button to confirm, present mode will blink on the display. Use  the DOWN and UP button to select the Yes (pan inversion) or No (normal) mode. Once the mode ...
  • Page 11 Tilt Inverse  Select Tilt Inverse, press the ENTER button to confirm, present mode will blink on the display. Use  the DOWN and UP button to select the Yes (tilt inversion) or No (normal) mode. Once the mode  has  been  selected,  press  the  ENTER  button  to  setup,  to  go  back  to  the  functions  without  any  change press the MENU button again. Hold and press the MENU button about one second or wait  for one minute to exit the menu mode.    Back Light  Select Back Light, press the ENTER button to confirm, present mode will blink on the display. Use  the DOWN and UP button to select the On (LED on) or Off (LED off) Mode. Once the mode has  been selected, press the ENTER button to setup, to go back to the functions without any change  press the MENU button again. Hold and press the MENU button about one second or wait for one  minute to exit the menu mode.    Focus Adjust  Select Focus Adjust, press the ENTER button to confirm, present mode will blink on the display.  Use the DOWN and UP button to change the value from 0 …255. Once selected, press the ENTER  button  to  setup,  to  go  back  to  the  functions  without  any  change  press  the  MENU button  again.  Hold ...
  • Page 12: Home Position Adjustment

    back to the functions press the MENU button again. Hold and press the MENU button about one  second or wait for one minute to exit the menu mode.    Fixture Time  Select  Fixture  Time,  pressing  ENTER  button  and  the  display  will  show  the  number  of  working  hours of the unit. To go back to the functions press the MENU button again. Hold and press the  MENU button about one second or wait for one minute to exit the menu mode.    Firmware Version  Select Firmware Version, pressing ENTER button and the display will show the version of software  of the unit. To go back to the functions press the MENU button again. Hold and press the MENU  button about one second or wait for one minute to exit the menu mode.    Reset  Select  Reset,  pressing  ENTER  button  and  all  channels  of  the  unit  will  return  to  their  standard  position. ...
  • Page 13     Pan Offset—pan home position adjustment  Enter Offset Menu, Select Pan Offset, press ENTER button to confirm, the present position will  blink on the display, use UP/DOWN button to offset the value from ‐127 to 127, then press ENTER  button to store. Press MENU button to exit.    Tilt Offset—tilt home position adjustment  Enter Offset Menu, Select Tilt Offset, press ENTER button to confirm, the present position will  blink on the display, use UP/DOWN button to offset the value from ‐127 to 127, then press ENTER  button to store. Press MENU button to exit.    Color Offset—color home position adjustment  Enter Offset Menu, Select Color Offset, press ENTER button to confirm, the present position will  blink on the display, use UP/DOWN button to offset the value from ‐127 to 127, then press ENTER  button to store. Press MENU button to exit.    Gobo Offset—gobo home position adjustment  Enter Offset Menu, Select Gobo Offset, press ENTER button to confirm, the present position will ...
  • Page 14 blink on the display, use UP/DOWN button to offset the value from ‐127 to 127, then press ENTER  button to store. Press MENU button to exit.    R Gobo Offset—gobo rotation home position adjustment  Enter Offset Menu, Select R Gobo Offset, press ENTER button to confirm, the present position will  blink on the display, use UP/DOWN button to offset the value from ‐127 to 127, then press ENTER  button to store. Press MENU button to exit.    Prism Offset—prism home position adjustment  Enter Offset Menu, Select Prism Offset, press ENTER button to confirm, the present position will  blink on the display, use UP/DOWN button to offset the value from 0 to 255, then press ENTER  button to store. Press MENU button to exit.    R Prism Offset—prism rotation home position adjustment  Enter Offset Menu, Select R Prism Offset, press ENTER button to confirm, the present position will  blink on the display, use UP/DOWN button to offset the value from ‐127 to 127, then press ENTER  button to store. Press MENU button to exit.    Focus Offset—focus home position adjustment  Enter Offset Menu, Select Focus Offset, press ENTER button to confirm, the present position will  blink on the display, use UP/DOWN button to offset the value from 0 to 255, then press ENTER  button to store. Press MENU button to exit.                   ...
  • Page 15: Control By Universal Dmx Controller

      4. Control By Universal DMX Controller    4.1 DMX 512 Connection        1. At  last  unit,  the  DMX  cable  has  to  be  terminated  with  a  terminator.  Solder  a  120  ohm  1/4W  resistor  between  pin  2(DMX‐)  and  pin  3(DMX+)  into  a  3‐pin  XLR‐plug  and  plug  it  in  the  DMX‐output of the last unit. ...
  • Page 16: Dmx Address Setting

    4.2 DMX Address Setting    If you use a universal DMX controller to control the units, you have to set DMX address from 1 to  512 so that the units can receive DMX signal.  Press MENU button to enter menu mode, select DMX Address, press ENTER button to confirm, the  present address will blink on the display, use UP and DOWN button to adjust the address from 0 to  512, press ENTER button to store. Press MENU button back to the last menu or let the unit idle  one minute to exit menu mode.  Please refer to the following diagram to address your DMX512 channel for the first 4 units:  Channel Mode  Unit 1  Unit 2  Unit 3  Unit 4  14 channels  1  15  29  43  15 channels  1  16  31  46                                   ...
  • Page 17: Dmx512 Configuration

    4.3 DMX512 Configuration    14 Channels Mode:   ...
  • Page 18 15 Channels Mode:             ...
  • Page 19: Troubleshooting

      5. Troubleshooting    Following are a few common problems that may occur during operation. Here are some  suggestions for easy troubleshooting:  A. The unit does not work, no light and the fan does not work  1. Check the connect power and main fuse.  2. Measure the mains voltage on the main connector.  3. Check the power on LED to see if it can be light up or not.  B. Not responding to DMX controller  1. DMX LED should be on. If not, check DMX connectors, cables to see if they are linked properly.  2. If the DMX LED is on and no response to the channel, check the address settings and DMX  polarity.  3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the  unit or the previous one.  4. Try to use another DMX controller.      5. Check to see if the DMX cables run near or run alongside to high voltage cables that may cause  damage or interference to DMX interface circuit.    C. One of the channels is not working well  1. The stepper motor might be damaged or the cable connected to the PCB is broken.  2. The motor’s drive IC on the PCB might be out of condition.  D. The lamp is cutting out intermittently  1. The lamp is not working well. Check the mains voltage either too high or too low.  2. Internal temperature may be too high. Check if replacement of fan is needed on the head.  E. If the pan belt is broken  1. Turn off the mains power.  2. Loosen the screws (A),open the cover (B).  3. Loosen the screws (C).  4. Unplug all the connect wires over the belt.    5. Change a new belt (D), put the belt around the axis gear and motor gear. ...
  • Page 20 6. Plug all the connect wires back upon the belt.  7. Tighten all the screws.                F. If the tilt belt is broken  1. Turn off the mains power.  2. Loosen all the screws (A) and open the right arm cover (B).  3. Loosen the screws (C) that fix the bridge.  4. Change a new belt (D). Please adjust the tension of the belt properly.                        Note: do not fix the belt too tight as it is can easily rupture.  Reverse the procedures from step 3 to 2.             ...
  • Page 21: Fixture Cleaning

      6. Fixture Cleaning    The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically  to optimize light output. Cleaning frequency depends on the environment in which the fixture  operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on  the unit’s optics.  Clean with soft cloth using normal glass cleaning fluid.  Always dry the parts carefully.  Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60  days.     ...
  • Page 22 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
  • Page 23 Innovation, Quality, Performance...
