Chapter 3: System Setup
Front Bezel Design Guide

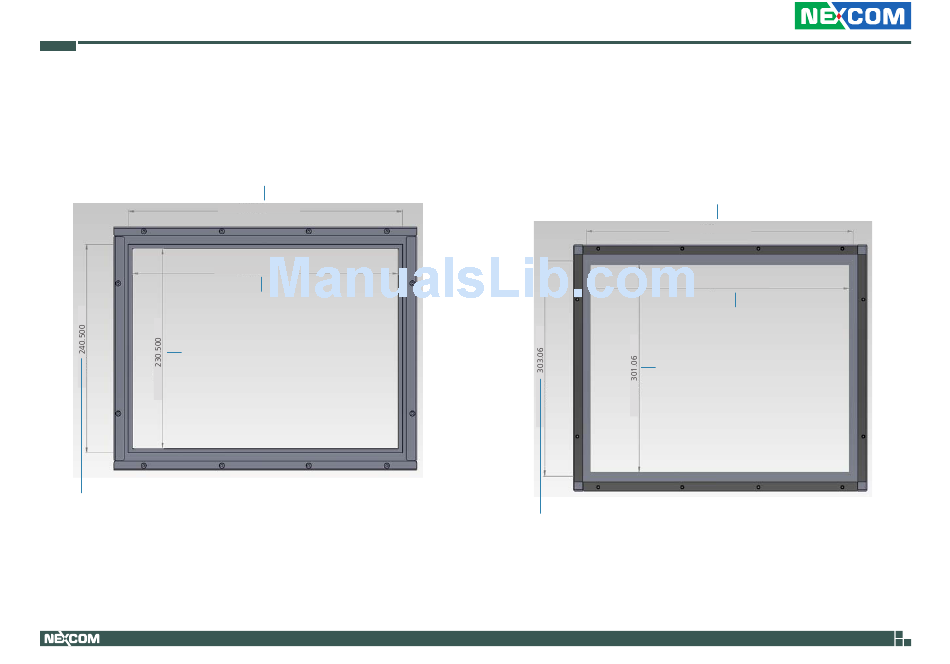

The illustration below shows the dimensions of the panel. It serves as a
guide for you to design the front bezel.
3M for IP65 test tape size 316.5 x 5mm T=1.0
3M for IP65 test tape size 350 x 5mm T=1.0
316.500
378.32
306.500
376.32
Active area cut out size
Active area cut out size
Active area cut out size
Active area cut out size
3M for IP65 test tape size 240.5 x 5mm T=1.0
3M for IP65 test tape size 282.5 x 5mm T=1.0
OPPC 1540HT-J1900
OPPC 1940HT-J1900
65
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
OPPC 1540HT-J1900/1940HT-J1900 User Manual
