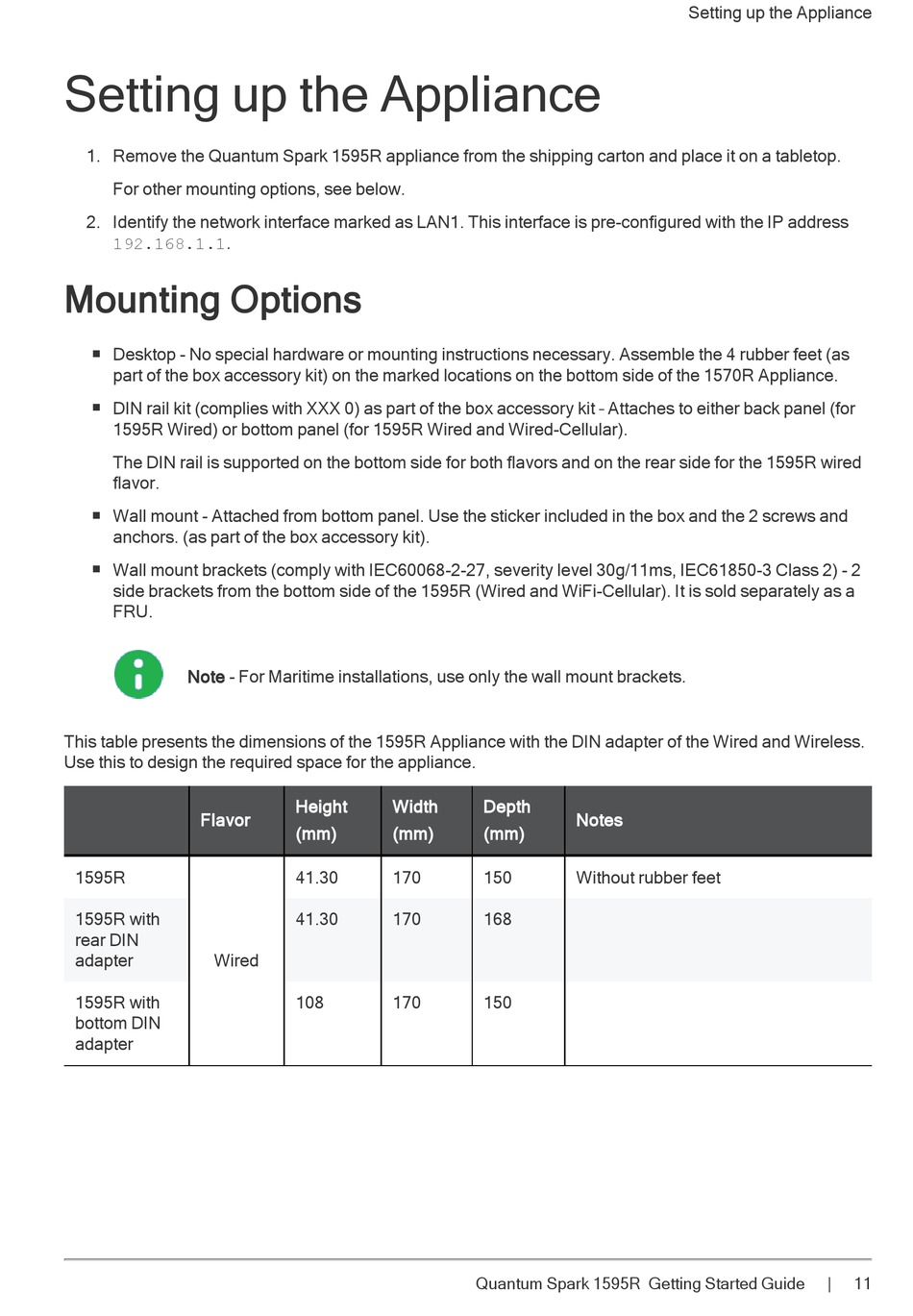

Setting up the Appliance

1. Remove the Quantum Spark 1595R appliance from the shipping carton and place it on a tabletop.
For other mounting options, see below.
2. Identify the network interface marked as LAN1. This interface is pre-configured with the IP address
192.168.1.1.

Mounting Options

n Desktop - No special hardware or mounting instructions necessary. Assemble the 4 rubber feet (as
part of the box accessory kit) on the marked locations on the bottom side of the 1570R Appliance.
n DIN rail kit (complies with XXX 0) as part of the box accessory kit – Attaches to either back panel (for
1595R Wired) or bottom panel (for 1595R Wired and Wired-Cellular).
The DIN rail is supported on the bottom side for both flavors and on the rear side for the 1595R wired
flavor.
n Wall mount - Attached from bottom panel. Use the sticker included in the box and the 2 screws and
anchors. (as part of the box accessory kit).
n Wall mount brackets (comply with IEC60068-2-27, severity level 30g/11ms, IEC61850-3 Class 2) - 2
side brackets from the bottom side of the 1595R (Wired and WiFi-Cellular). It is sold separately as a
FRU.
Note - For Maritime installations, use only the wall mount brackets.
This table presents the dimensions of the 1595R Appliance with the DIN adapter of the Wired and Wireless.
Use this to design the required space for the appliance.
Flavor
1595R
1595R with
rear DIN
adapter Wired
1595R with
bottom DIN
adapter
Height Width
(mm) (mm)
41.30 170
41.30 170
108 170
Depth
Notes
(mm)
150 Without rubber feet
168
150
