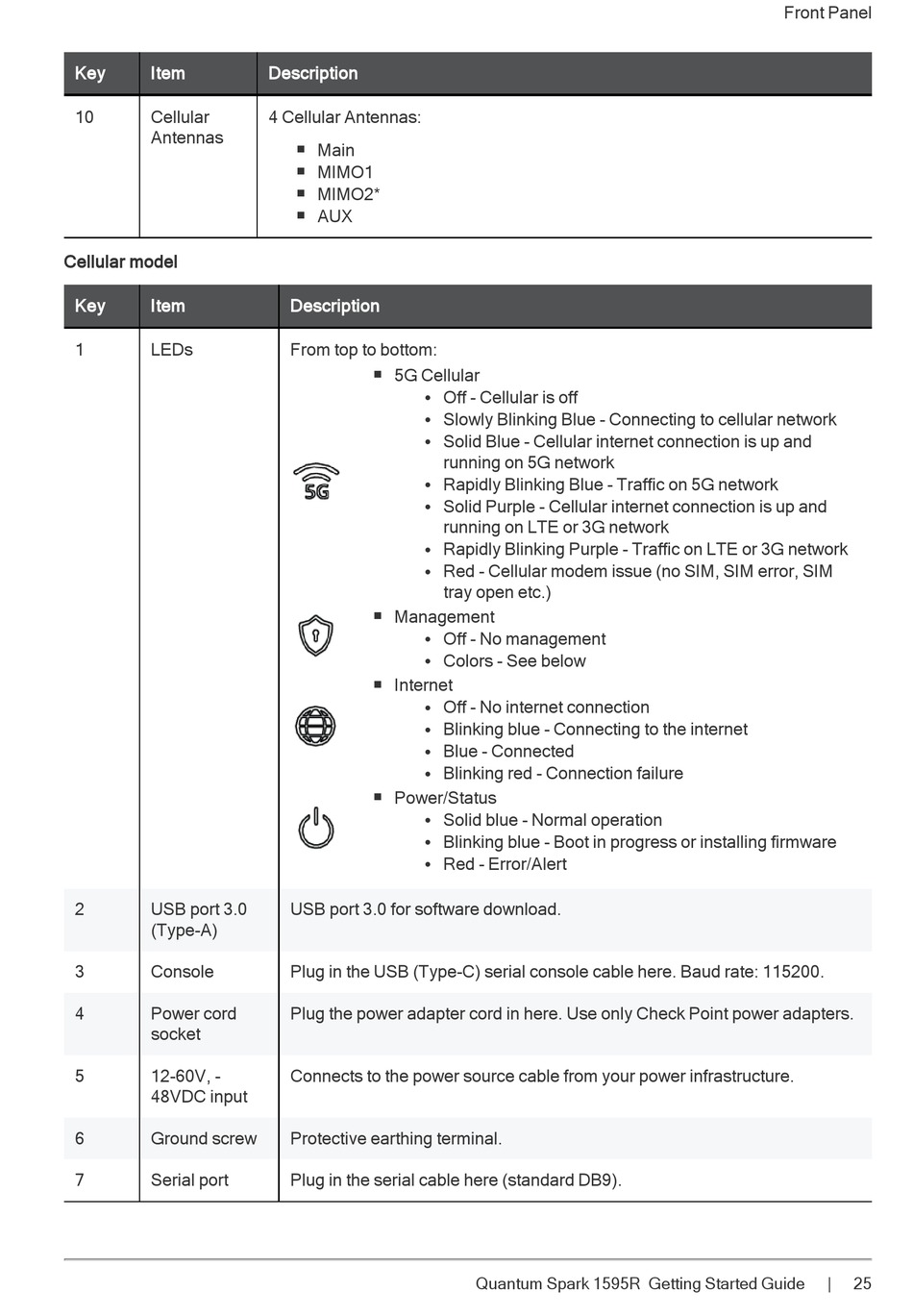

Key Item
10 Cellular
Antennas
Cellular model
Key Item
1 LEDs
2 USB port 3.0
(Type-A)
3 Console
4 Power cord
socket
5 12-60V, -
48VDC input
6 Ground screw
7 Serial port
Description
4 Cellular Antennas:
Main
n
MIMO1
n
MIMO2*
n
n AUX
Description
From top to bottom:
5G Cellular
n
l
l
l
l
l
l
l
Management
n
l
l
Internet
n
l
l
l
l
Power/Status
n
l
l
l
USB port 3.0 for software download.
Plug in the USB (Type-C) serial console cable here. Baud rate: 115200.
Plug the power adapter cord in here. Use only Check Point power adapters.
Connects to the power source cable from your power infrastructure.
Protective earthing terminal.
Plug in the serial cable here (standard DB9).
Off - Cellular is off
Slowly Blinking Blue - Connecting to cellular network
Solid Blue - Cellular internet connection is up and
running on 5G network
Rapidly Blinking Blue - Traffic on 5G network
Solid Purple - Cellular internet connection is up and
running on LTE or 3G network
Rapidly Blinking Purple - Traffic on LTE or 3G network
Red - Cellular modem issue (no SIM, SIM error, SIM
tray open etc.)
Off - No management
Colors - See below
Off - No internet connection
Blinking blue - Connecting to the internet
Blue - Connected
Blinking red - Connection failure
Solid blue - Normal operation
Blinking blue - Boot in progress or installing firmware
Red - Error/Alert
