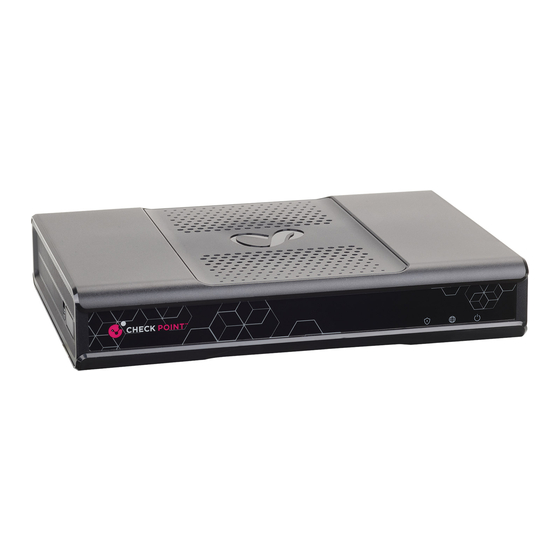

- Page 1 10 September 2023 QUANTUM SPARK 1535 / 1555 APPLIANCE Getting Started Guide...
- Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
- Page 3 For third party independent certification of Check Point products, see the Check Point Certifications page. Check Point Quantum Spark 1535 / 1555 Appliance Getting Started Guide For more about 1535 / 1555 appliances, see the home page. Latest Version of this Document in English...
-
Page 4: Table Of Contents
Wireless Network Administrator Access Appliance Registration Security Management Server Authentication Software Blade Activation Summary Zero Touch Cloud Service USB Drive Health and Safety Information Information sur la Santé et la Sécurité Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 4... - Page 5 Table of Contents Support Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 5...
-
Page 6: Introduction
Introduction Introduction Thank you for choosing Check Point's Internet Security Product Suite. Check Point products provide your business with the most up to date and secure solutions available today. Check Point also delivers worldwide technical services including educational, professional, and support services through a network of Authorized Training Centers, Certified Support Partners, and Check Point technical support personnel to ensure that you get the most out of your security investment. -
Page 7: Shipping Carton Contents
Screws: M4x6, truss screw. Screw anchors. Antenna WiFi Antenna RP-SMA type, black color (WiFi models only). Guides Quantum Spark 1535 / 1555 Appliance Quick Start Guide License Agreement End user license agreement. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 7... -
Page 8: Setting Up The Appliance
Setting up the Appliance Setting up the Appliance 1. Remove the Quantum Spark 1535 / 1555Appliance from the shipping carton and place it on a tabletop. 2. Optional: Remove the transparent protective sticker from the front panel of the appliance. -
Page 9: Connecting The Cables
PC/LAN network port. The Internet LED on the appliance front panel lights up when the Ethernet is connected. Note - Wait 10 seconds between power cycles (off and on). Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 9... -
Page 10: First Time Deployment Options
First Time Deployment Options There are different options for first time deployment of your gateways: "Using the First Time Configuration Wizard" on page 18 "Zero Touch Cloud Service" on page 45 "USB Drive" on page 46 Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 10... -
Page 11: Appliance Diagrams And Specifications
This section describes the different features in the front, back, and side panels of the 1535 / 1555 models. Note - Depending on which model appliance you have, some of the specifications below may vary. Wired Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 11... - Page 12 Appliance Diagrams and Specifications WiFi Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 12...
-
Page 13: Front Panel
Front Panel Front Panel Wired WiFi Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 13... -
Page 14: Management Led
Reactivation. Blinks blue (rapidly) SMP is connected. Solid blue. SMP mode is off. LED off Gateway failed to connect to the SMP and will exit from the retry script. Constant red. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 14... -
Page 15: Network Leds
Each port uses a bi-color LED to reflect the link/activity and speed, from 10M to 1GbE. RJ45 LED1 (Green) LED2 (Amber) No link 1G link 1G Act Blink 100M link 100M Act Blink 10M link 10M Act Blink Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 15... -
Page 16: Back Panel
Plug the power adapter cord in here. Factory default Press the button continuously for 12 seconds to restore the appliance to its factory defaults. Power button Push to turn the appliance on or off. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 16... -
Page 17: Side Panel
Side Panel Side Panel Item Description Anti-theft slot. Insert anti-theft cable here. Use Kensington and Sunbox TL-623M cable as a reference. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 17... -
Page 18: Using The First Time Configuration Wizard
Note - In the First Time Configuration Wizard, you may not see all the pages described in this guide. The pages that show in the wizard depend on your appliance model and the options you select. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 18... -
Page 19: Starting The First Time Configuration Wizard
To open the Appliance WebUI, enter one of these addresses in a web browser: http://my.firewall https://192.168.1.1:4434 If a security warning message shows, confirm it and continue. First Time Configuration Wizard starts. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 19... -
Page 20: Welcome
You can connect to the Zero Touch server to fetch settings automatically from the cloud. To change the language of the WebUI application: Select the language link at the top of the page. Note - Only English is allowed as the input language. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 20... -
Page 21: Zero Touch
When you reconnect to the WebUI or click Refresh, the browser opens to show the status of the installation process. After the gateway downloads and successfully applies the settings, it does not connect to the Zero Touch server again. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 21... -
Page 22: Authentication Details
If you select a country and install a valid license, but the wireless region of the device does not match the selected country, a warning message shows and you must edit the country information. When the country and wireless region match, you see the full settings. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 22... - Page 23 Authentication Details Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 23...
-
Page 24: Appliance Date And Time Settings
- The IP or host name of the primary NTP server. The default server is ntp.checkpoint.com Secondary NTP server - The IP or host name of the secondary NTP server. The default server is ntp2.checkpoint.com Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 24... - Page 25 Appliance Date and Time Settings Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 25...
-
Page 26: Appliance Name
When the gateway performs DNS resolving for a specified object’s name, the domain name is appended to the object name. This lets hosts in the network look up hosts by their internal names. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 26... -
Page 27: Security Policy Management
With the appliance WebUI, you can configure the Software Blades you activated and fine tune the security policy. This Getting Started Guide describes how to configure both locally and centrally managed deployments. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 27... -
Page 28: Security Management Server Connection
- Enter the IP address of a log server. Send logs according to policy - The logs are sent according to the log server definitions that are defined in the policy. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 28... - Page 29 Security Management Server Connection Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 29...
-
Page 30: Internet Connection
We recommend that you configure the DNS as the appliance needs to perform DNS resolving for different functions. For example, to connect to Check Point User Center during license activation or when Application Control, Web Filtering, Anti-Virus, or Anti-Spam services are enabled. - Page 31 Internet Connection Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 31...
-
Page 32: Local Network
The appliance's IP address is automatically excluded from the range. For example, if the appliance IP is 1.1.1.1 the range also starts from 1.1.1.1, but excludes its own IP address. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 32... - Page 33 Important - If you choose to disable the switch on LAN ports (clear the checkbox), make sure your network cable is placed in the LAN1 port. Otherwise, connectivity will be lost when you click Next. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 33...
-
Page 34: Wireless Network
This means the wireless network is considered trusted and access is allowed from it to the local network. 7. Radio Band 2.4GHz: 2.412~2.472GHz 5GHz: 5.150~5.850GHz / 4.920~5.850GHz Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 34... - Page 35 Wireless Network Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 35...
-
Page 36: Administrator Access
2. In the IP Address Configuration window, select an option: Specific IP address - Enter the IP address or click Get IP from my computer. Specific network - Enter the Network IP address and Subnet mask. 3. Click Apply. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 36... - Page 37 Administrator Access Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 37...
-
Page 38: Appliance Registration
To configure the proxy details: 1. Click proxy. 2. Select Use proxy server and enter the proxy server Address and Port. 3. Click Apply. 4. Click Activate License. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 38... - Page 39 WebUI from the Device > License page. If your device is not paired with a User Center account, you must create an account or ask your company administrator to create one for you. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 39...
- Page 40 Email. You must enter this a second time to confirm. Company - This is the Account Name to which the appliance is paired. 4. Click Next. Software Blades Activation page opens. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 40...
-
Page 41: Security Management Server Authentication
- Use this option only if there is no risk of malicious behavior (for example, when in a lab setting). Configure one-time password later - Set the one-time password at a different time using the WebUI application. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 41... - Page 42 Security Management Server Authentication Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 42...
-
Page 43: Software Blade Activation
Software Blade Activation Software Blade Activation Select the Software Blades to activate on this appliance. QoS (bandwidth control) can only be activated from the WebUI after completing the First Time Configuration Wizard. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 43... -
Page 44: Summary
First Time Configuration Wizard. The WebUI opens on the Home > System page. To back up the system configuration in the WebUI: Go to Device > System Operations > Backup. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 44... -
Page 45: Zero Touch Cloud Service
Retries mechanism: During cloud activation, there are sometimes temporary issues which prevent the gateway from activating "Front Panel" on page 13 Cloud Services. See the Management LED description in the section. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 45... -
Page 46: Usb Drive
An appliance that already has an existing configuration. The appliance starts, automatically mounts the USB drive, and searches the root directory for a configuration file. Note - The USB drive must be formatted in FAT32. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 46... -
Page 47: Health And Safety Information
The AC adapter supplied with the appliance. A replacement AC adapter supplied by Check Point. An AC adapter purchased as an accessory from Check Point. To prevent damage to any system, it is important to handle all parts with care. These measures are... - Page 48 Getting Started Guide for 1530 / 1550 *For V-80 certifications and health and safety regulations, see the Appliances Declares under our sole responsibility, that the products conform to the following Product Specifications: RF/Wi-Fi (*marked model) Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 48...
- Page 49 *ANSI C63.4:2014 *ANSI C63.10:2013 *IEEE C95.3 *KDB Publication 789033 *RSS-102 Issue5 *47 Part 15 Subpart C *47 Part 15 Subpart E *47 Part 15 Subpart E 15.407 *ANSI C63.10:2013 *FCC Part2 Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 49...
- Page 50 Federal Communications Commission (FCC) Statement FCC SDOC According to FCC Part 15 We, Check Point Software Technologies Ltd. Address: Shlomo Kaplan St 5, / HaSolelim St 5 Tel Aviv-Yafo # 67897, Phone: +972-3-753-4555. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 50...
- Page 51 Per FCC regulation, all WiFi products marketed in the US must be fixed to US operation channels only. If trouble is experienced with this Gateway, for repair or warranty information, please contact: Check Point 6330 Commerce Drive Suite 120, Irving, Texas 75063 Office Phone Numbers 972-444-6612 Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 51...
- Page 52 5. Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 52...
- Page 53 For more information about where you can drop off your waste equipment for recycling, please contact your local city office or your household waste disposal service. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 53...
-
Page 54: Information Sur La Santé Et La Sécurité
L'adaptateur secteur fourni avec l'appareil Un adaptateur secteur de remplacement, fourni par Check Point Un adaptateur secteur acheté en tant qu'accessoire auprès de Check Point Pour éviter d'endommager tout système, il est important de manipuler les éléments avec soin. Ces mesures sont généralement suffisantes pour protéger votre équipement contre les décharges d'électricité... - Page 55 *Pour les certifications V-80 et les réglementations en matière de santé et de sécurité, consultez le, see the Getting Started Guide for 1530 / 1550 Appliances Déclare sous son entière responsabilité que les produits sont conformes aux normes produit suivantes: Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 55...
- Page 56 *ANSI C63.4:2014 *ANSI C63.10:2013 *IEEE C95.3 *KDB Publication 789033 *RSS-102 Issue5 *47 Part 15 Subpart C *47 Part 15 Subpart E *47 Part 15 Subpart E 15.407 *ANSI C63.10:2013 *FCC Part2 Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 56...
- Page 57 FCC SDOC Selon section 15 des réglementations de la FCC Nous, Check Point Software Technologies Ltd. Adresse: Shlomo Kaplan St 5, / HaSolelim St 5 Tel Aviv-Yafo # 67897, Phone: +972-3-753-4555. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 57...
- Page 58 En cas de problème avec celui-ci, pour obtenir des informations sur la réparation ou la garantie, veuillez contacter : Check Point 6330 Commerce Drive Suite 120, Irving, Texas 75063 Numéro de téléphone de nos bureaux 972-444-6612 Déclaration de conformité du département Canadien Exemple de déclaration pour les antennes: Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 58...
- Page 59 4. Lorsqu’il y a lieu, les types d’antennes (s’il y en a plusieurs), les numéros de modèle de l’antenne et les pires angles d’inclinaison nécessaires pour rester conforme à l’exigence de la p.i.r.e. applicable au masque d’élévation, énoncée à la section 6.2.2.3, doivent être clairement indiqués. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 59...
- Page 60 Pour obtenir plus d'informations sur les lieux où déposer vos équipements mis au rebut, veuillez contacter votre municipalité ou le service de gestion des déchets. Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 60...
- Page 61 When you contact support, you must provide your MAC address. Check Point Support Center For more technical information, go to: To learn more about the Check Point Internet Security Product Suite and other security solutions, go to: https://www.checkpoint.com Quantum Spark 1535 / 1555 Appliance Getting Started Guide | 61...
